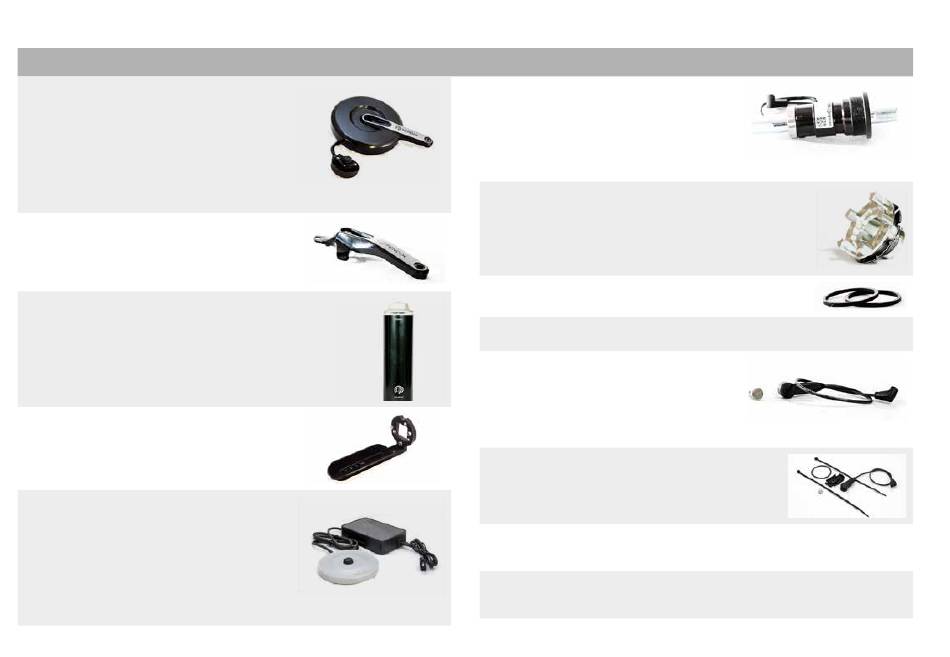

4. Parts supplied by Pendix

1x Pendix set consisting of
1x drive system unit (motor)
Art. no. A1C.902.017
voltage; 48V
nominal power: 250W
crank length: 172.5mm
pedal thread: 9 / 16" x 20 LH (FG 14.3)
preassembled in drive system unit (motor):
coupling ring
Art. no. A1C.301.002
1x crank
Art. no. A1C.302.001
crank length: 172.5mm
pedal thread: 9 / 16" x 20 RH (FG 14.3)
connection diameter chain wheels: 104mm
1x battery
Art. no. A1C.904.006
13S2P Li-Ion (lithium ion)
voltage: 48V
capacity: 302Wh
1x battery holder
Art. no. A1C.904.009
1x charging unit + power station
charging unit
Art. no. A1C.904.002
for 48V 13S2P Li-Ion (lithium ion) battery
input values: 100-240V AC; 50 / 60Hz; 2.0A max.
output values: 54.6V DC; 1.8A
power station
Art. no. A1C.904.001
24
1x electronic bottom bracket
Art. no. A1C.903.003
square shaft
shaft length: 128mm
bottom bracket thread:
BSA 1.375" x 24 TPI LH (FG34)
crank thread: M8x1 RH
1x electronic bottom bracket fitting unit
Art. no. A1C.301.004
bottom bracket thread: BSA 1.375" x 24 TPI RH
(FG34)
2x spacer ring electronic bottom bracket
Art. no. A1C.301.003
1x lockwasher
Art. no. A1C.301.221
1x wheel speed sensor + spoke-mounted magnet
wheel speed sensor
Art. no. A1C.903.004 - cable length 290mm
Art. no. A1C.903.015 - cable length 580mm
spoke-mounted magnet
Art. no. A1C.301.207
1x assembly set wheel speed sensor
Art. no. A1C.903.018
2x crank screw
M8x16
2x screws for connector cover
M4x10 self-cutting
2x screws, battery holder
M5x16
