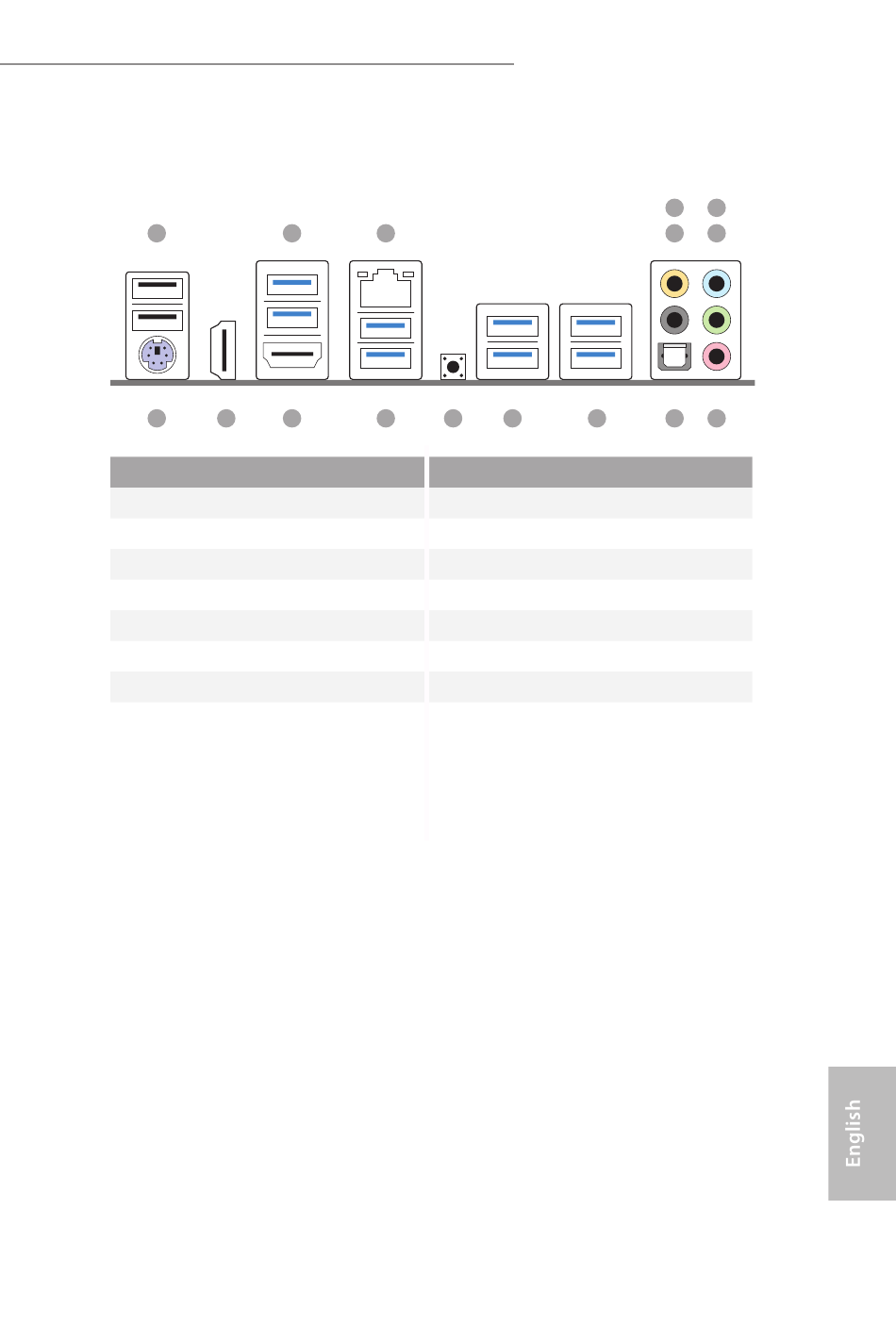

1.5 I/O Panel
1
16 15
No. Description
1 USB 2.0 Ports (USB01)
2 USB 3.0 Ports (USB3_01)
3 LAN RJ-45 Port
4 Central / Bass (Orange)
5 Rear Speaker (Black)
6 Line In (Light Blue)
7 Front Speaker (Lime)**
8 Microphone (Pink)
2 3
14 13 12
No. Description
9
10
11
12
13
14
15
16
Z87 OC Formula/ac / Z87 OC Formula
11 10
Optical SPDIF Out Port
USB 3.0 Ports (USB3_67)
USB 3.0 Ports (USB3_45)
Clear CMOS Switch (CLRCBTN)
USB 3.0 Ports (USB3_23)
HDMI-Out Port
HDMI-In Port
PS/2 Mouse/Keyboard Port
4 6
5 7
9 8
