diversey Taski swingo XP Original Bedienungsanleitung Seite 34

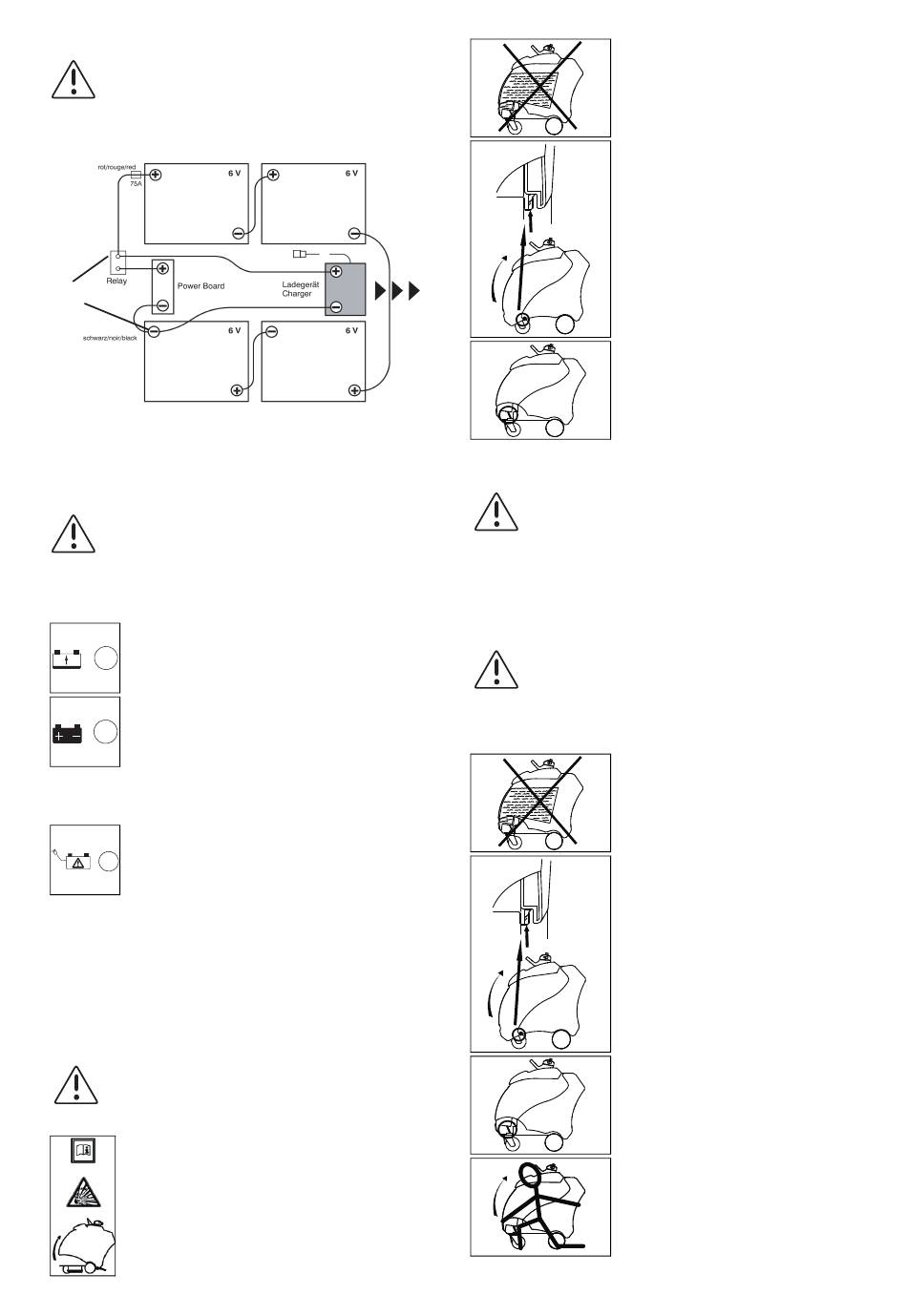

Battery connection diagram
Caution:
Batteries may only be installed or dismounted by customer
service personnel or specialists approved by Diversey who are
aware of all the safety regulations that apply here!
Ladestecker
Charging plug
Charging procedure (traction block batteries with integrated charging
unit)
Caution:
Comply with the regulations of the battery manufacturer.
• Switch the machine off using the keyswitch and remove the key.
• Plug the power supply cord into the mains socket.
Check that battery charging display on the control panel.
The yellow indicator lights up permanently until
approx. 90% of the battery capacity has been
reached. After that, the indicator blinks until the
battery is fully charged.
When the charging process is complete, the
green indicator lights up.
• Leave the power supply cord connected to the mains until you use the
machine again. The on-board charger unit automatically monitors and
charges the batteries. The energy consumption in the mode is limited to a
few milliwatts.
If a fault occurs during the charging process as
the result of a defect in the charging unit, an
interruption of a cable or a defective battery cell,
the red indicator will light up.
In the case of a fault, refer to Page 36.
Charging procedure (traction block batteries with external charging unit)
• Switch the machine off using the keyswitch and remove the key.
• Press the Emergency Stop button.
• Put the external battery charger in to the charging unit.
• Start the battery charger.
Charging procedure (wet batteries with external charging unit)
Caution:
If the machine is assembled with a wet battery kit (optional) the
machine must be used with wet batteries only!
Wet batteries must not be charged with the internal charger!
Battery compartment must be open during charging.
Wet batteries must be charged in ventilated rooms only!
The electrolytic gas that is given off could lead to an explosion!
32
• Switch the machine off using the keyswitch and remove the key.
• Check that the tanks are empty.
• To unlock, press a suitable instrument (for
example, a screwdriver) into the opening
provided. LIft off the tank and place it on the
tank support.
A pin has been mounted on the ignition key for
opening the battery compartment in cases of
emergency.
Tank position for charging.
• Plug the external battery charging unit into the charging plug.
Caution:
Follow the instructions of use for your battery charger!
• Turn on the battery charger.
Maintenance of batteries (only wet batteries)
Please follow the instructions of use for your battery charger!
Caution:
When maintenance of batteries takes place, they must be
disconnected from the machine!
Opening battery compartment for maintenance
• Check that the machine has been switched off with the keyswitch.
• Check that the tanks are empty.
• Unlock the battery compartment, by pushing a
screw driver or a similar tool into the opening.
• Lift the tank until it locates into its self support
position.
A pin has been mounted on the ignition key for
opening the battery compartment in cases of
emergency.
Tank position before it is altered for battery
maintenance.
• Stand next to the machine, hold the tank at the
front, under and behind the back of the tank.
• Carefully open the battery compartment until
the tank lies on the floor.
