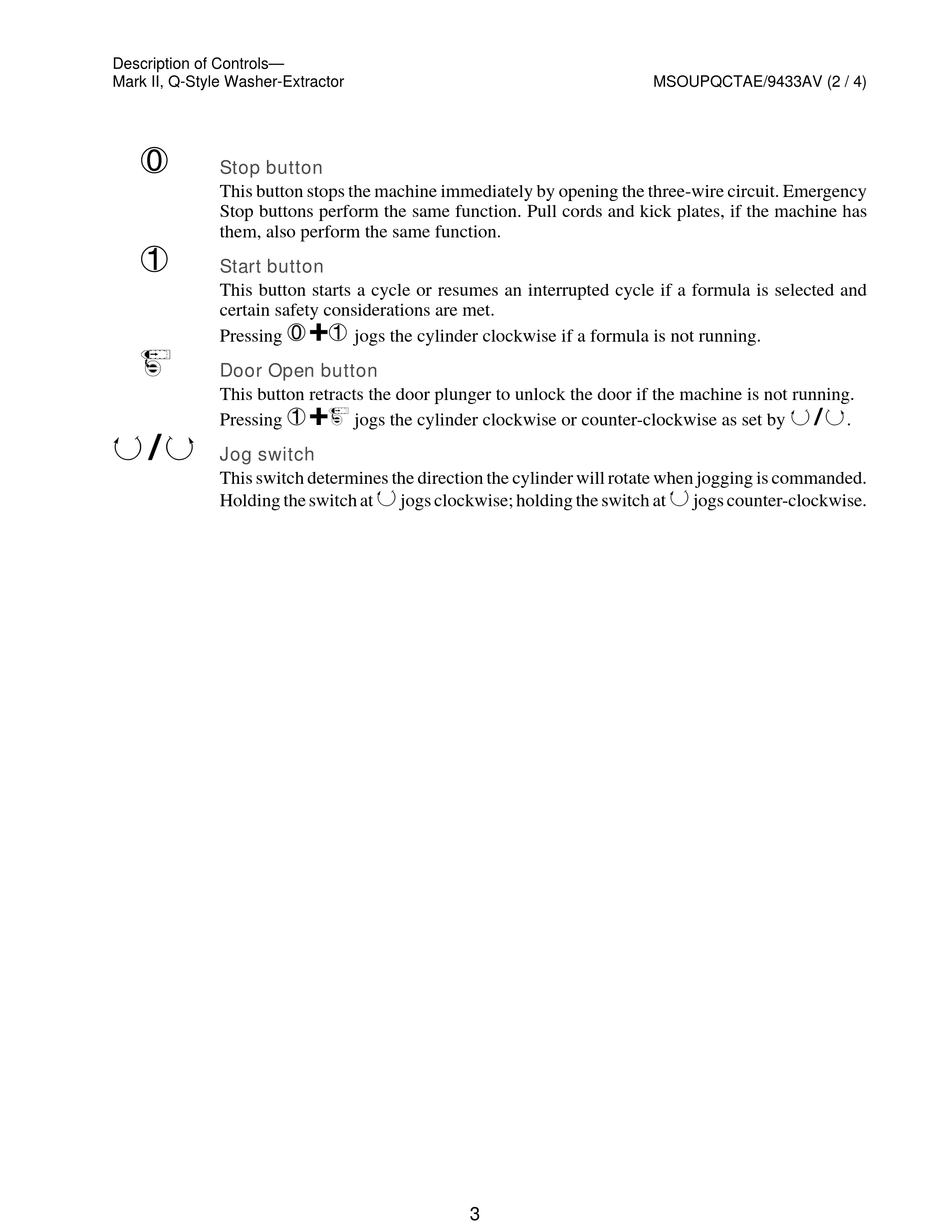

Description of Controls—
Mark II, Q-Style Washer-Extractor
0

Stop button

This button stops the machine immediately by opening the three-wire circuit. Emergency
Stop buttons perform the same function. Pull cords and kick plates, if the machine has
them, also perform the same function.
1

Start button

This button starts a cycle or resumes an interrupted cycle if a formula is selected and
certain safety considerations are met.
Pressing 0+1 jogs the cylinder clockwise if a formula is not running.
l
Door Open button
This button retracts the door plunger to unlock the door if the machine is not running.
Pressing 1+l jogs the cylinder clockwise or counter-clockwise as set by J/j.
J/j
Jog switch
This switch determines the direction the cylinder will rotate when jogging is commanded.
Holding the switch at J jogs clockwise; holding the switch at J jogs counter-clockwise.
3
