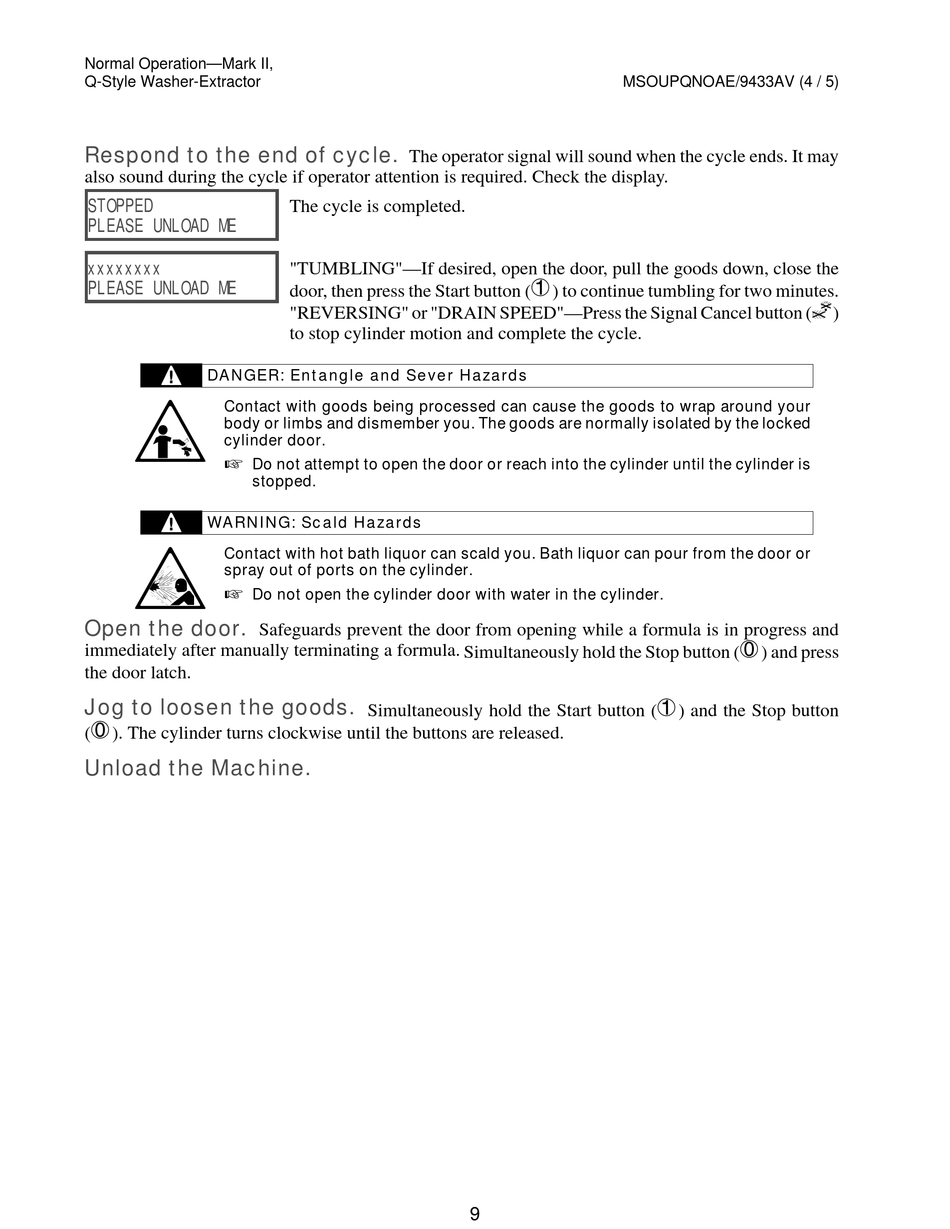

Milnor Mark II Handbuch Seite 13

Normal Operation—Mark II,
Q-Style Washer-Extractor
Respond to the end of cycle.
also sound during the cycle if operator attention is required. Check the display.
STOPPED
PLEASE UNLOAD ME
xxxxxxxx
PLEASE UNLOAD ME
1
DANGER: Entangle and Sever Hazards
L
Contact with goods being processed can cause the goods to wrap around your
body or limbs and dismember you. The goods are normally isolated by the locked
cylinder door.
Do not attempt to open the door or reach into the cylinder until the cylinder is
stopped.
1
WARNING: Scald Hazards
D
Contact with hot bath liquor can scald you. Bath liquor can pour from the door or
spray out of ports on the cylinder.
Do not open the cylinder door with water in the cylinder.
Open the door.
Safeguards prevent the door from opening while a formula is in progress and
immediately after manually terminating a formula. Simultaneously hold the Stop button (0) and press
the door latch.
Jog to loosen the goods.
(0). The cylinder turns clockwise until the buttons are released.
Unload the Machine.
The operator signal will sound when the cycle ends. It may
The cycle is completed.
"TUMBLING"—If desired, open the door, pull the goods down, close the
door, then press the Start button (1) to continue tumbling for two minutes.
"REVERSING" or "DRAIN SPEED"—Press the Signal Cancel button (A)
to stop cylinder motion and complete the cycle.
Simultaneously hold the Start button (1) and the Stop button
MSOUPQNOAE/9433AV (4 / 5)
9
