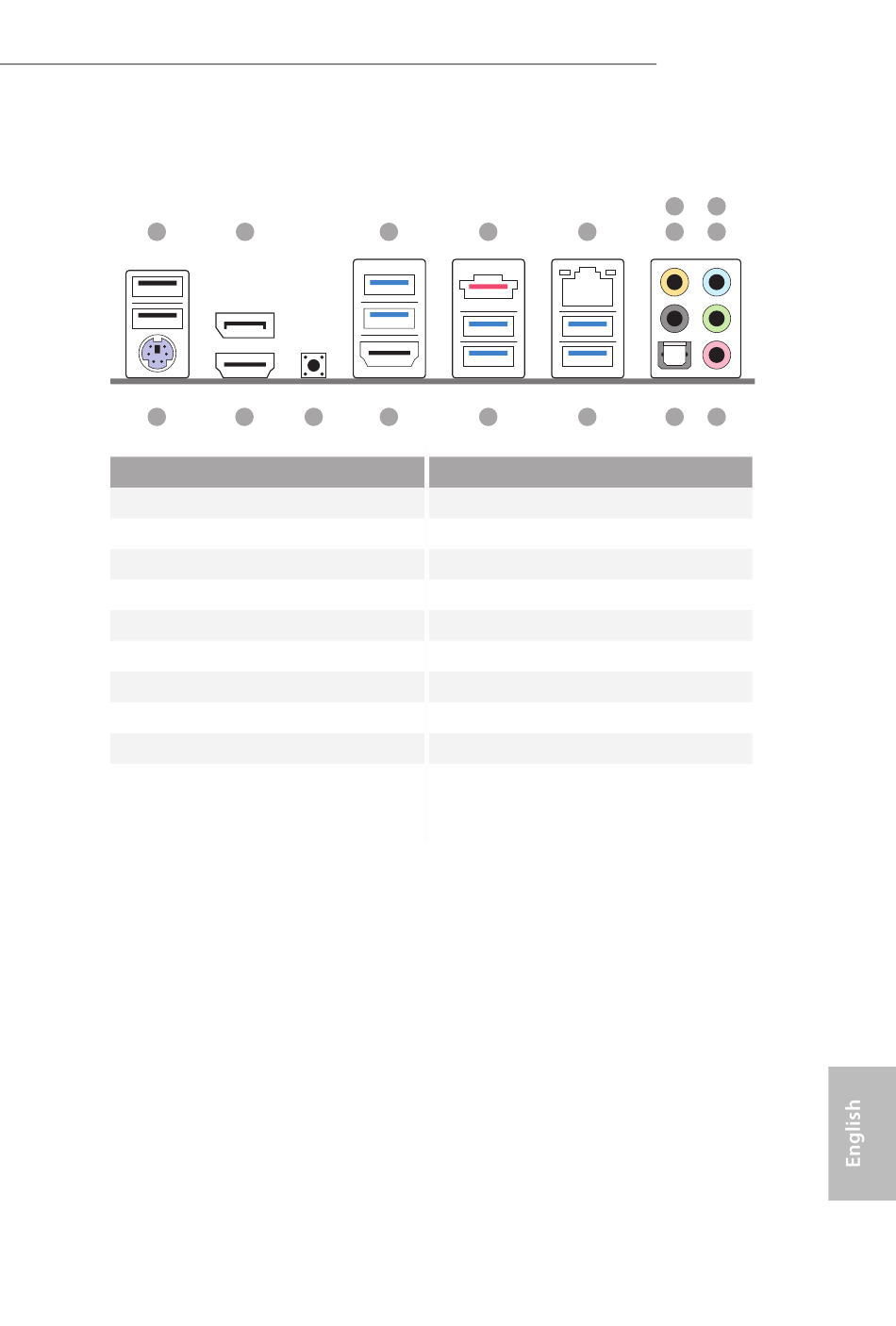

I/O Panel
1 2
17 16
No. Description
1 USB 2.0 Ports (USB01)
2 DisplayPort
3 USB 3.0 Ports (USB3_01)
4 eSATA Connector***
5 LAN RJ-45 Port*
6 Central / Bass (Orange)
7 Rear Speaker (Black)
8 Line In (Light Blue)
9 Front Speaker (Lime)**
3
15 14
No. Description
10
11
12
13
14
15
16
17
4 5
13 12
Microphone (Pink)
Optical SPDIF Out Port
USB 3.0 Ports (USB3_45)
USB 3.0 Ports (USB3_23)
HDMI-In Port
Clear CMOS Button (CLRCBTN)
HDMI-Out Port
PS/2 Mouse/Keyboard Port
Z87M OC Formula
6 8
7 9
11 10
