6.5. Adjustable flails bar

This operation must be made with the engine off and the power take off disengaged.
The adjustable bar (I) is placed by the manufacturer according to the flail requirements of the client.
Whenever you add the flail for the verticut C between flails B the bar should rise (I) accordingly loosening the nuts (L) fixing

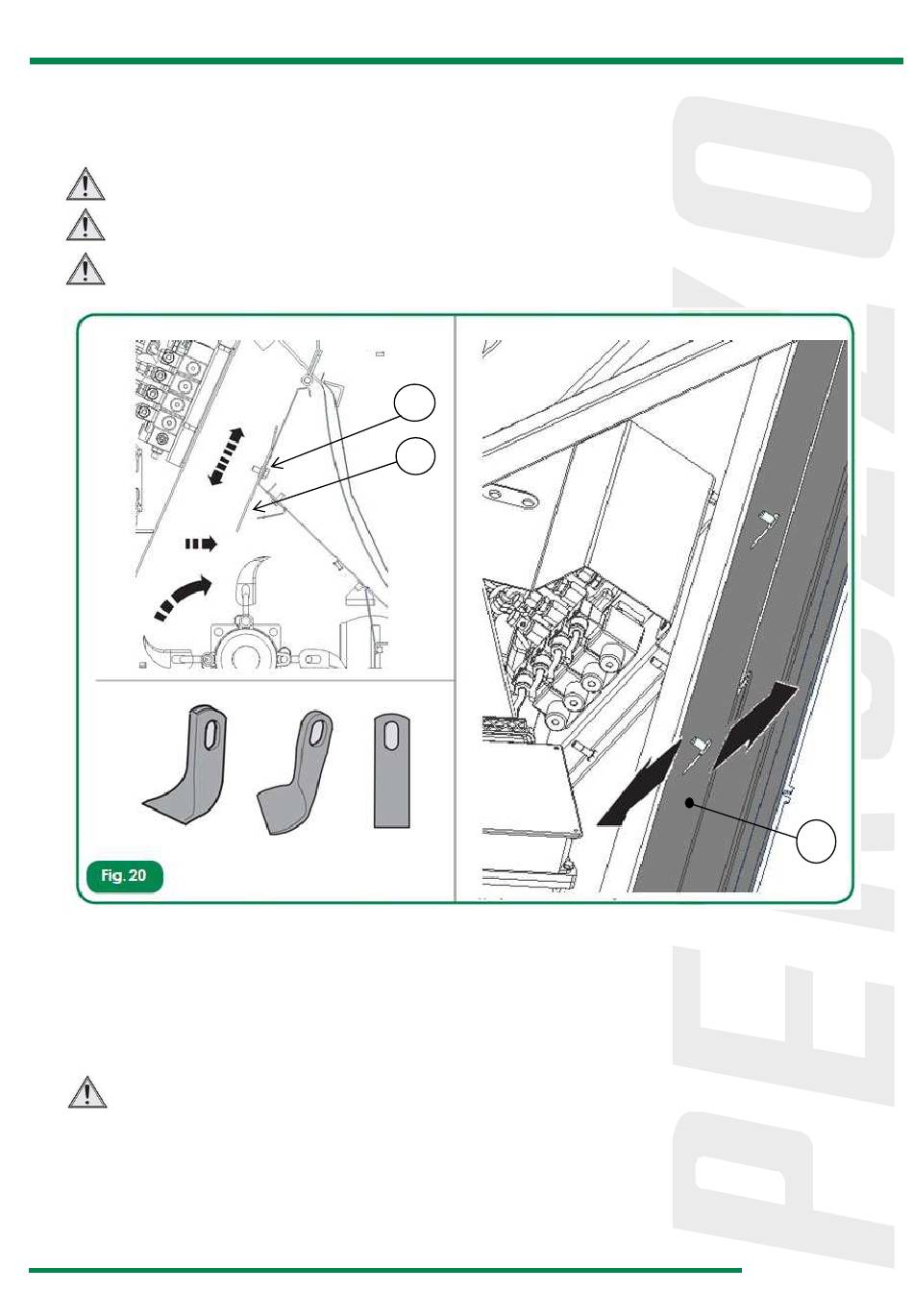

them immediately after moving (fig. 20).
Whenever the flail for the verticut C is removed between flails B to cut only grass, you must lower the bar (I) accordingly
placing it about 10-15mm from the flail, loosening the nuts (L) fixing them immediately after moving (fig. 20).
B

6.6. Trailing bar

The trailing bar is used in two cases:
3 It is used in all those tractors that are lighter than the machine so as to permit towing without affecting the
tractor.
4 It is used to cut grass or scrape the topsoil when there are many obstacles.
When using the trailing bar, always use a wide angle PTO shaft (fig. 21a), which facilitates the steering up to 60°. If you
want to use a normal PTO the maximum steering is 20°. (See fig. 21b).
The towing hitch can be inserted into the top 3rd point linkage (M) or in the bottom trailing connection (N) of the tractor. (See
fig.21)
