62 AVENTICS | HF03/HF02 | 1987765472–BDL–001–AB
Conversion and extension
Inserting the supply plate
HF03/HF02
Pos. 4
Pos. 5
1.1-1.3 Nm
–1
300-600 min

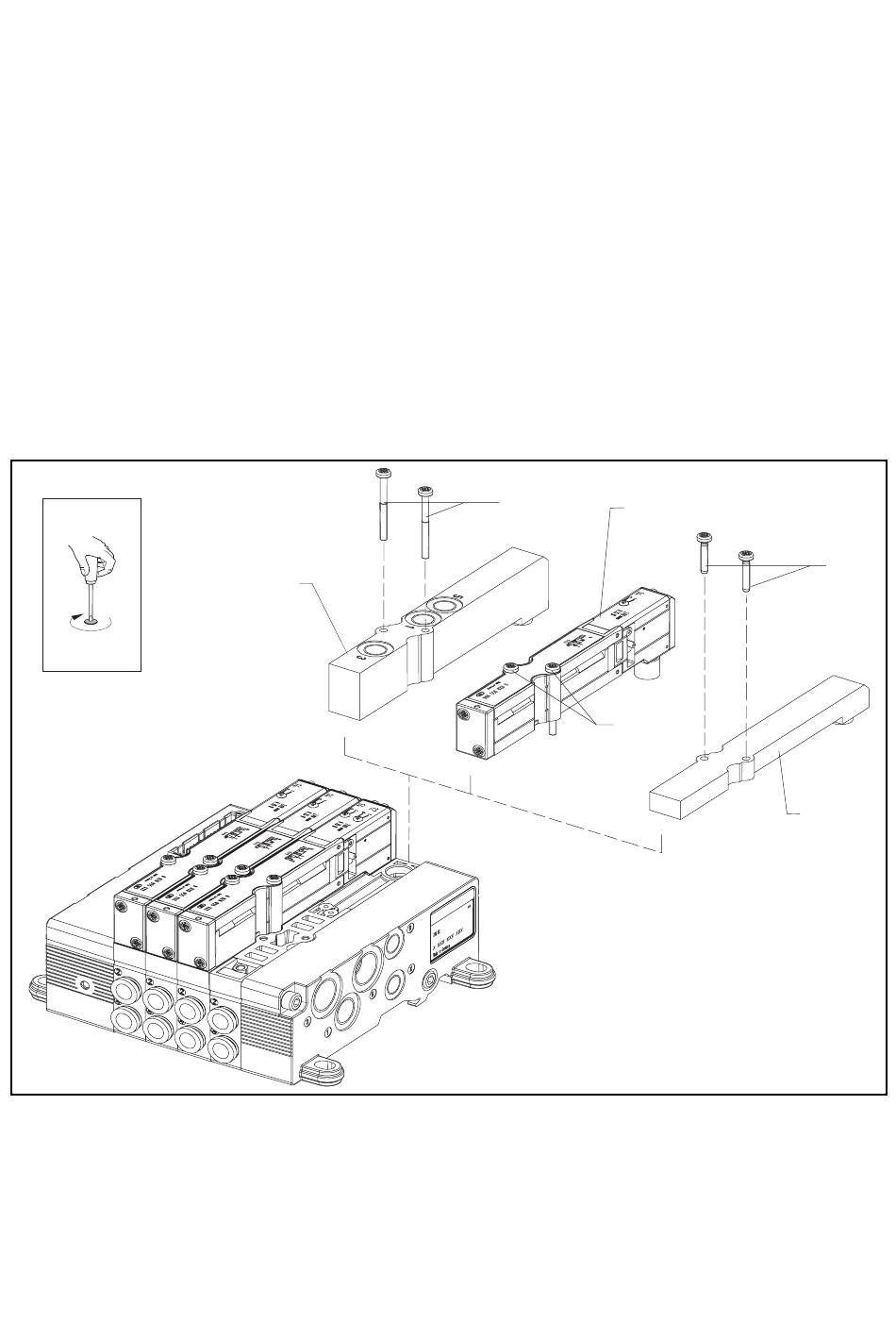

Fig. 10: Occupy reserve position (picture shows HF03)
1 Supply plate
2 Dummy plate
3 Valve
4/5 Screws
1. Remove the dummy plate (2) with 2 screws (4).
2. Place the supply plate (1) on the free subplate. Ensure that
the gasket has been inserted correctly.
3. Screw the supply plate (1) tight using 2 self-cutting
screws (5).
tightening torque: 1.1 ... 1.3 Nm
HF03: PZD screws no. 1
HF02: PZD screws no. 2
Power wrench speed 300 ... 600 rpm.
4. Make pneumatic connections (see section 4.4).
1
5
3
5
4
2
