60 AVENTICS | HF03/HF02 | 1987765472–BDL–001–AB
Testing and start-up
Valves with a
'turn' manual override,
red knob
Turn:
Put the screwdriver into the manual override's groove and turn
it to position 1 from the zero position using slight force.
The valve switches. The valve returns to the zero position when
released.
3

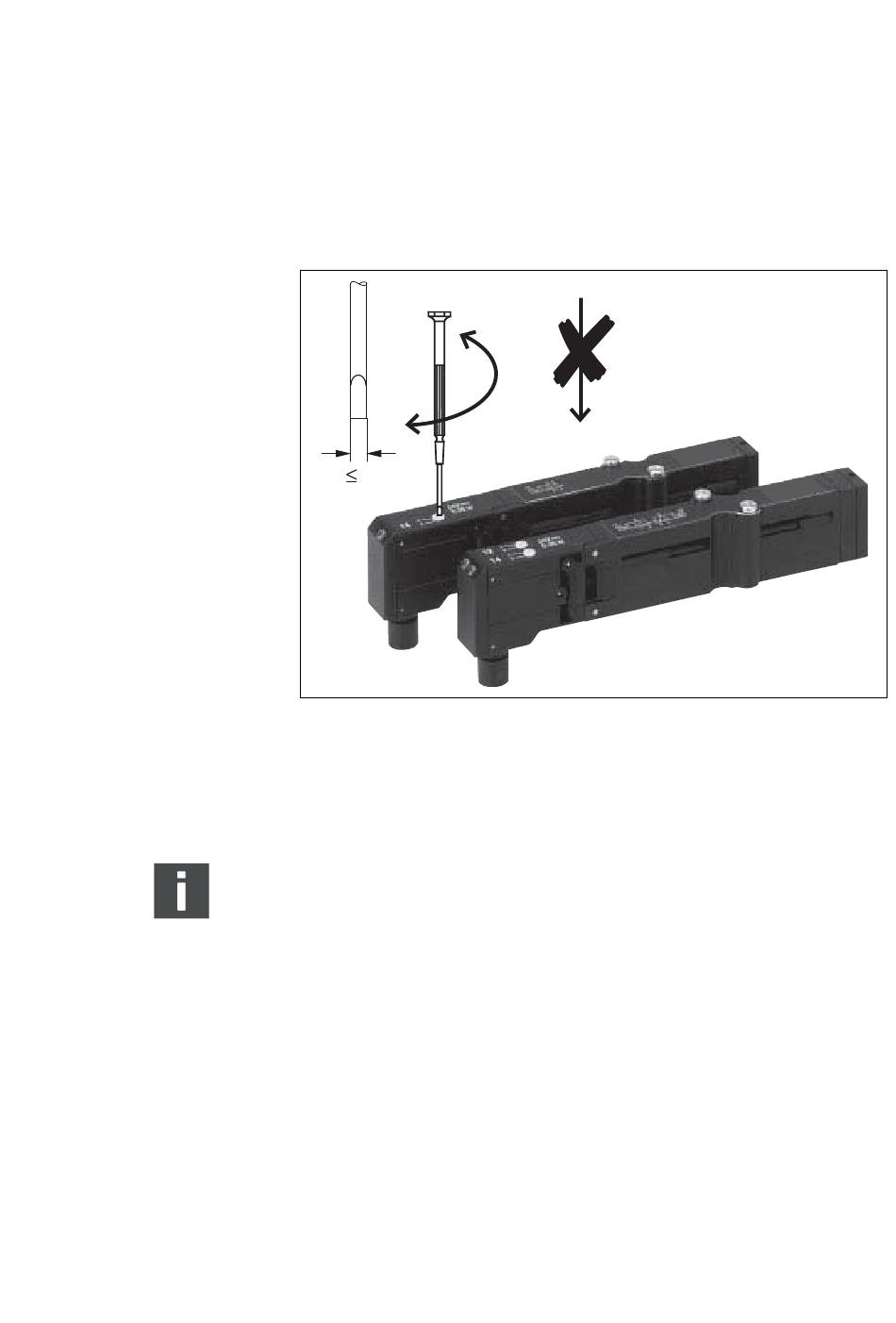

Fig. 9: Manual override
5.2

Start-up

Before switching the system on, ensure that it is in a
defined state!
Also ensure that all manual overrides are set to zero.
1. Switch on the operating voltage.
2. Switch on the compressed air supply.
