Commissioning and Operation
5. In the "General" tab, enter the corresponding values in the fields.
Parameter
Name:
Comm format:
IP Address:
Input:
Assembly Instance:
Size:
Output:
Assembly Instance:
Size:
Configuration:
Assembly Instance:
Size:

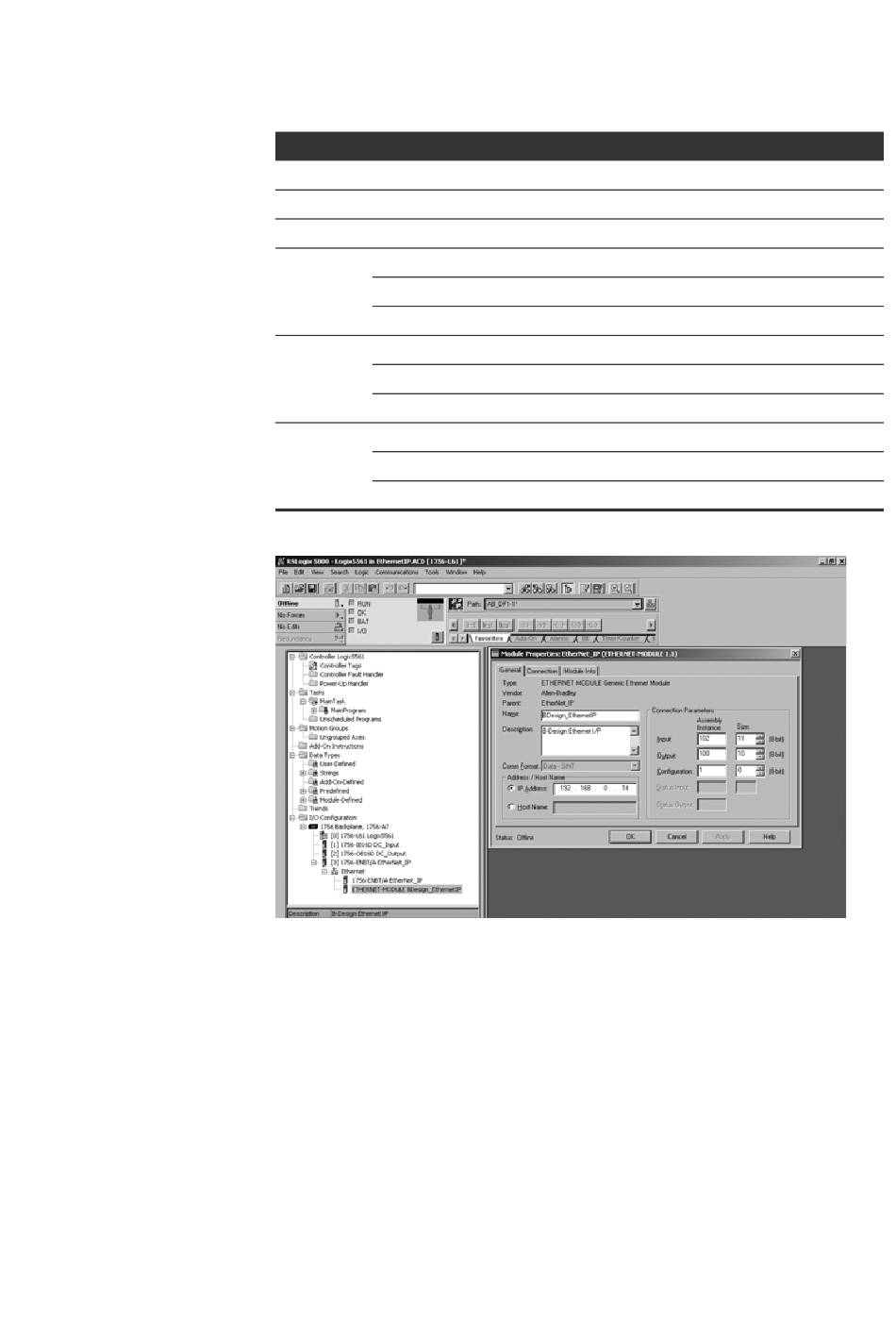

Fig. 12: Module Properties: EtherNet_IP dialog window
6. Click the "Connection" tab.
7. In the "Requested Packet Interval (RPI)" field, enter a value ≥ 10 ms and confirm
with "OK".
The configured device appears under the "Ethernet" branch in the tree structure.
You can check the configuration by selecting the connection status "Go Online". Any
configuration errors are indicated by means of a yellow exclamation point in the
tree structure.
Value
As per project
"Data - SINT"
As per project
102
11 (8-bit)
100
10 (8-bit)
1
0 (8-bit)
