• Only when using MyoSure Tissue Removal Device (TRD) connect the tube that has a green band adjacent to the barb connector to the MyoSure
Tissue Removal Device (TRD)
• From the Under Buttocks (UB) Drape Tube (that has a yellow suction connector) to the Under Buttocks (UB) Drape Port
These connections allow the transfer of fl uid from the hysteroscope Outfl ow Channel, the MyoSure Tissue Removal Device (TRD), and the Under
Buttocks (UB) Drape Port to the Waste Bag.

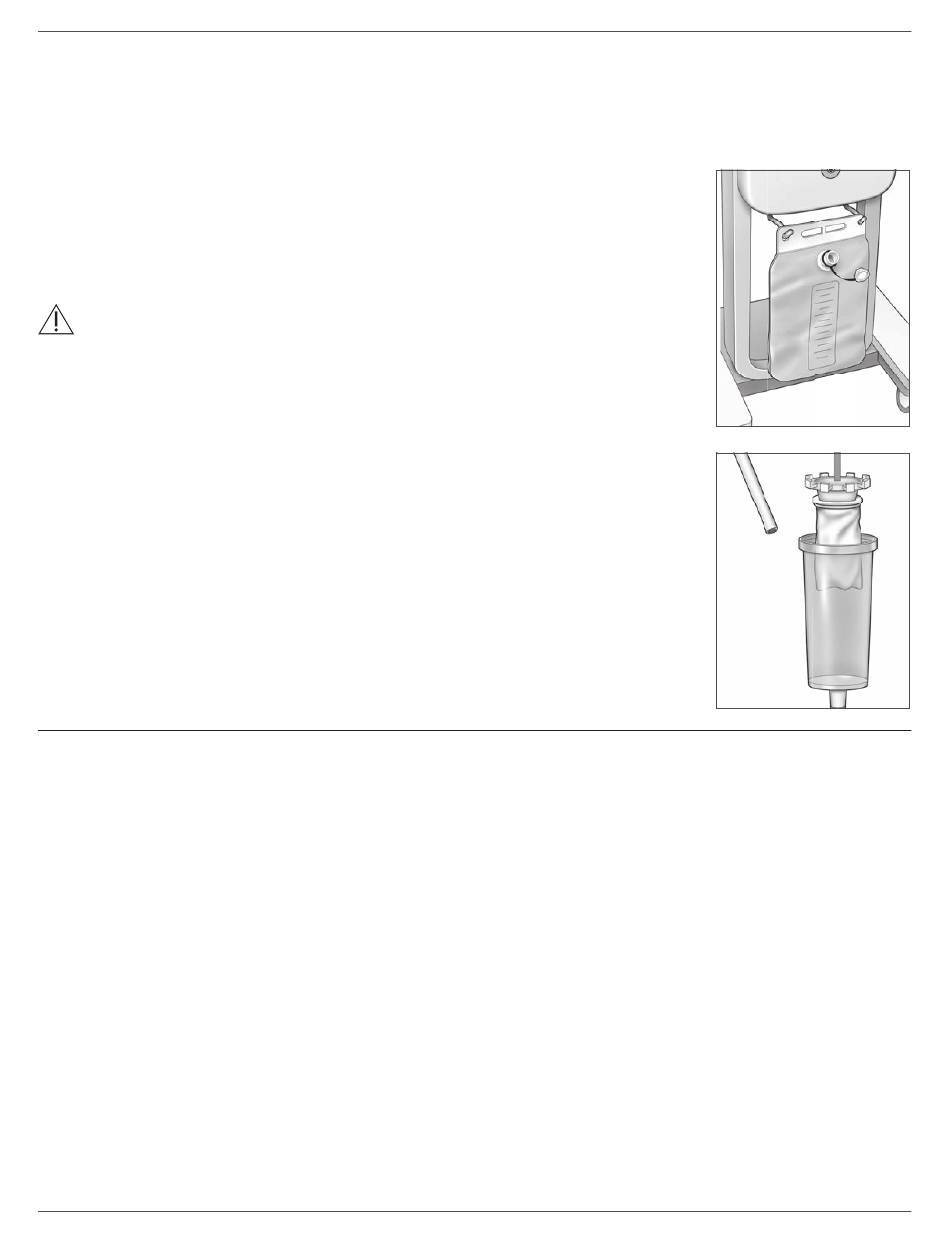

Waste Bag
The Waste Bag is designed to capture waste fl uid from hysteroscopic procedures. The Waste Bag hangs on the
Waste Bag Hanger at the bottom of the Fluent Fluid Management System. Hang only one Waste Bag at a time.
The Waste Bag includes an attached cap. For details on replacing the Waste Bag, see Chapter 6: Replacing
Components. If an accurate manual defi cit assessment is required, pour fl uid into calibrated container.
WARNING!
The markings on the waste bag are not intended as a measuring device, only for general
reference, not a specifi c volumetric measurement.
Tissue Trap
The Waste Tube contains an in-line Tissue Trap designed to capture resected tissue throughout the procedure to
allow the tissue to be sent to pathology for testing. The Tissue Trap Holder contains the Tissue Trap that captures
the resected tissue. Please monitor the Tissue Trap so it does not overfi ll. For details on handling the Tissue Trap,
see Chapter 7: Disassembly and Disposal.

Controls and Functions

This section describes Fluent Fluid Management System controls and functions.
Wheels
The four wheels located on the bottom of the Fluent Fluid Management System enable movement and positioning of the Fluent Fluid Management
System. For details on using the Wheel Locks, see Assembly Instructions provided in Chapter 3.

Contained in the Shipping Box

Foot Pedal
The Foot Pedal controls tissue removal device operation. It connects to the Foot Pedal Connector located on the Fluent Fluid Management System
front panel.
Storage Basket
The Storage Basket hangs on the rear of the Fluent Fluid Management System. It is used to store lightweight items such as the Foot Pedal when
not in use. Do not place heavy items in the Storage Basket. The maximum recommended weight is 10 pounds.
Power Cord
The Power Cord connects to Power Cord Connector located on the rear of the Fluent Fluid Management System. When the system is not in use,
wrap the Power Cord around the Handle on the rear of the system.
English
Fluent Fluid Management System
Chapter 1: Introduction to Fluent Fluid Management System
Waste Bag
Tissue Trap
15
