Instructions for Connecting Piping
to Outdoor Unit

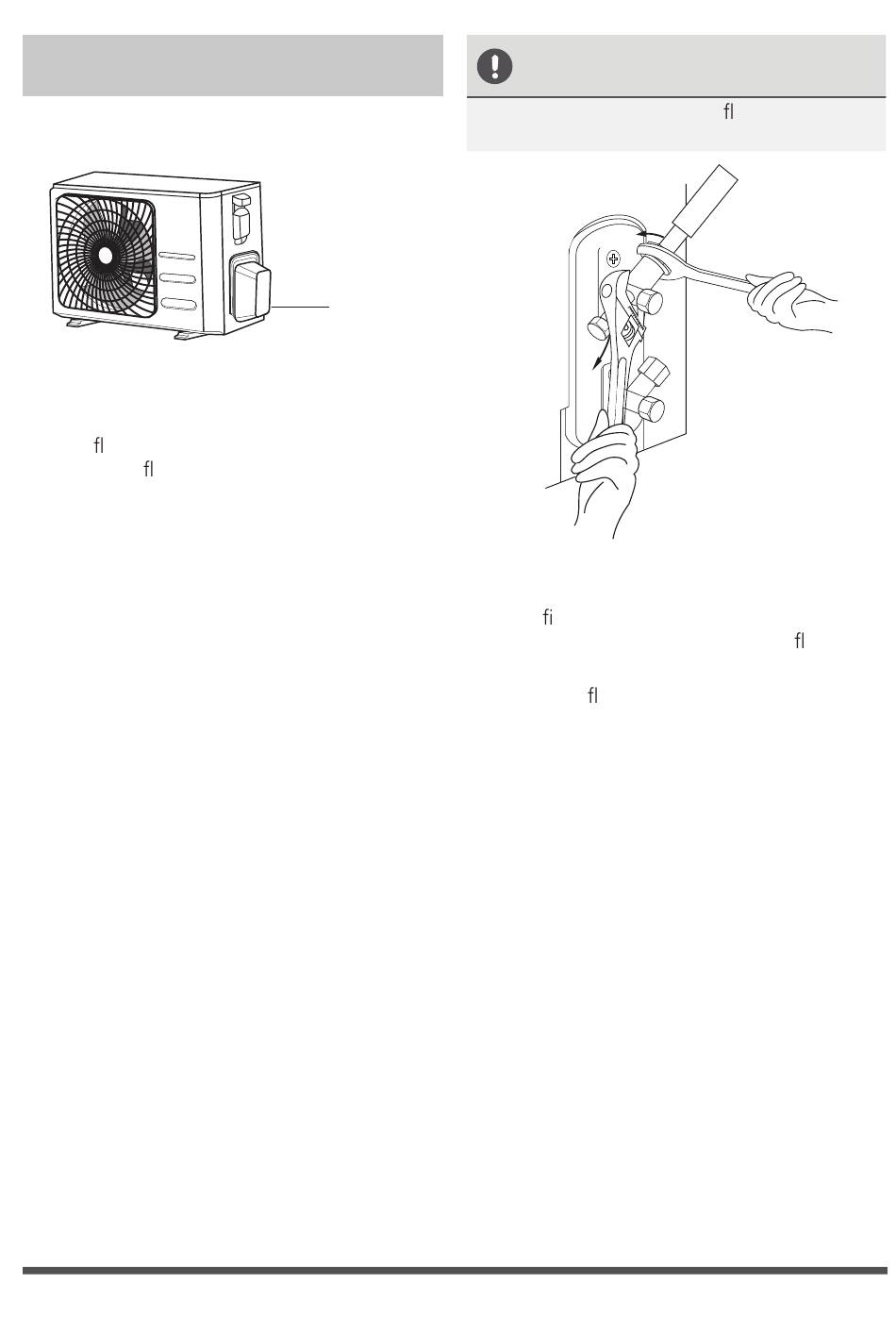

Unscrew the cover from the packed valve on
1.
the side of the outdoor unit. (See Fig. 5.9)
Remove protective caps from ends of valves.
2.
Align ared pipe end with each valve, and
3.
tighten the are nut as tightly as possible by
hand.
Using a spanner, grip the body of the valve.
4.
Do not grip the nut that seals the service
valve. (See Fig. 5.10)
ƒ Page 28 „
Valve cove
Fig. 5.9
USE SPANNER TO GRIP MAIN
BODY OF VALVE
Torque from tightening the are nut can snap
off other parts of valve.
While rmly gripping the body of the valve,
5.
use a torque wrench to tighten the are nut
according to the correct torque values.
Loosen the aring nut slightly, then tighten
6.
again.
Repeat Steps 3 to 6 for the remaining pipe.
7.
Fig. 5.10
