SIS 121/122 Control Unit

3.3 SIS 121/122 Control Unit
The modular control unit can manage a maximum of 12 interpreter stations allowing translation into 12 languages. The base version of the
control unit is equipped with one original channel and 4 foreign language channels. With two additional modules, each with 4 output
channels, the system can be extended to 8 or 12 foreign language channels. The interpreter stations are connected with usual standard
network cables (CAT.5 - FTP or S/FTP, no UTP) or special cables. The SIS control unit is configured via an integrated 5.5" touch screen.

3.3.1 Connections, Controls and Indicators of the Control Unit

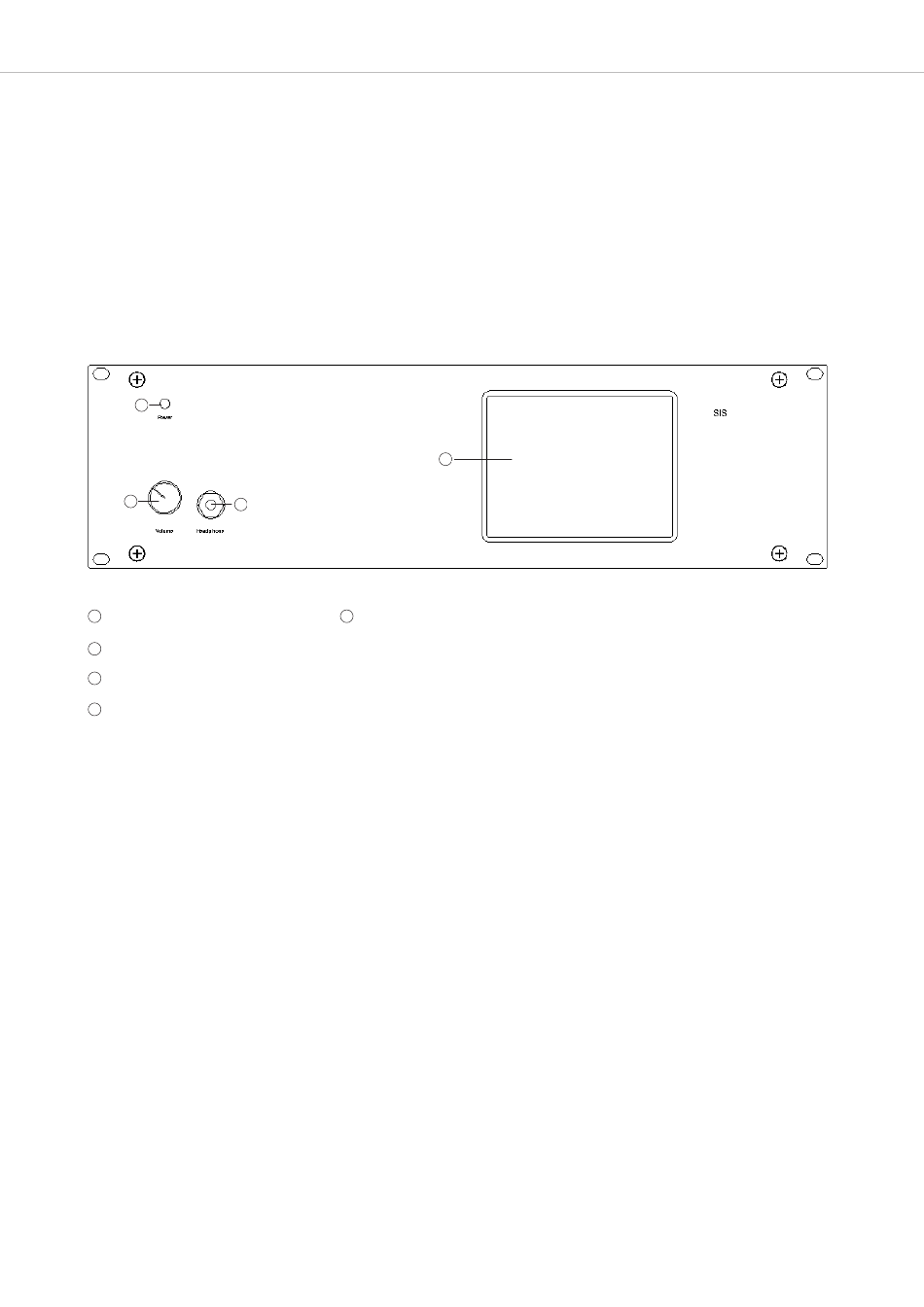

Front View
4
1
2
Volume control for headphone connection
1
Headphone connection, 6.3 mm jack (1/4")
2
5.5" Touch panel
3
Power LED
