STOP

For a better safety, you can fit a stop switch that will cause the
immediate door stop when activated. This switch must have a
normally close contact that will get open in case of operation.
In case the stop switch is operated while the door is open, the
automatic closing function will always be disabled. To close the
door again, you will need a start command (if the start function
in pause is disabled, it will be temporarily enabled to allow the
door release).
Connect the stop switch cables between terminal J3 and J4 of
the control unit.
The stop switch function can be activated by means of a
remote control stored on channel 3 (see relevant instructions
of MR1 receiver).

ACTIVATION INPUT

The PD11 central unit has an activation input with N.A. contact
that can be activated using the P1 pushbutton (Fig. 14) found
on the motor lid or using a transmitter (the pushbutton should
be tuned to channel 1 on the MR1 receiver).
Use the J2 and J4 clamps to connect up an external
pushbutton.

PLUG IN RECEIVER

PD11 control unit is suitable for plugging in a Personal Pass
MR1 receiver having a high-sensitivity super-heterodyne
architecture.
WARNING: it is necessary to turn off the control unit
power before doing the operations mentioned here below. Pay
attention to the way you connect the removable modules.
MR1 module receiver is provided with 4 channels and each of
them is suitable for a command of PD11 control unit:
CHANNEL 1 START
CHANNEL 2 KEPT FOR FUTURE USE
CHANNEL 3 STOP
CHANNEL 4 COURTESY LIGHT
WARNING: Before programming 4 channels and function
logics read carefully the instructions of MR1.

EXTERNAL AERIAL

We suggest to use the external aerial (model: ANS433 or
ANSGP433) in order to guarantee the maximal range.
Connect the antenna hot pole to terminal A2 of the control unit
and the braiding to terminal A1.

CONTROL PANEL

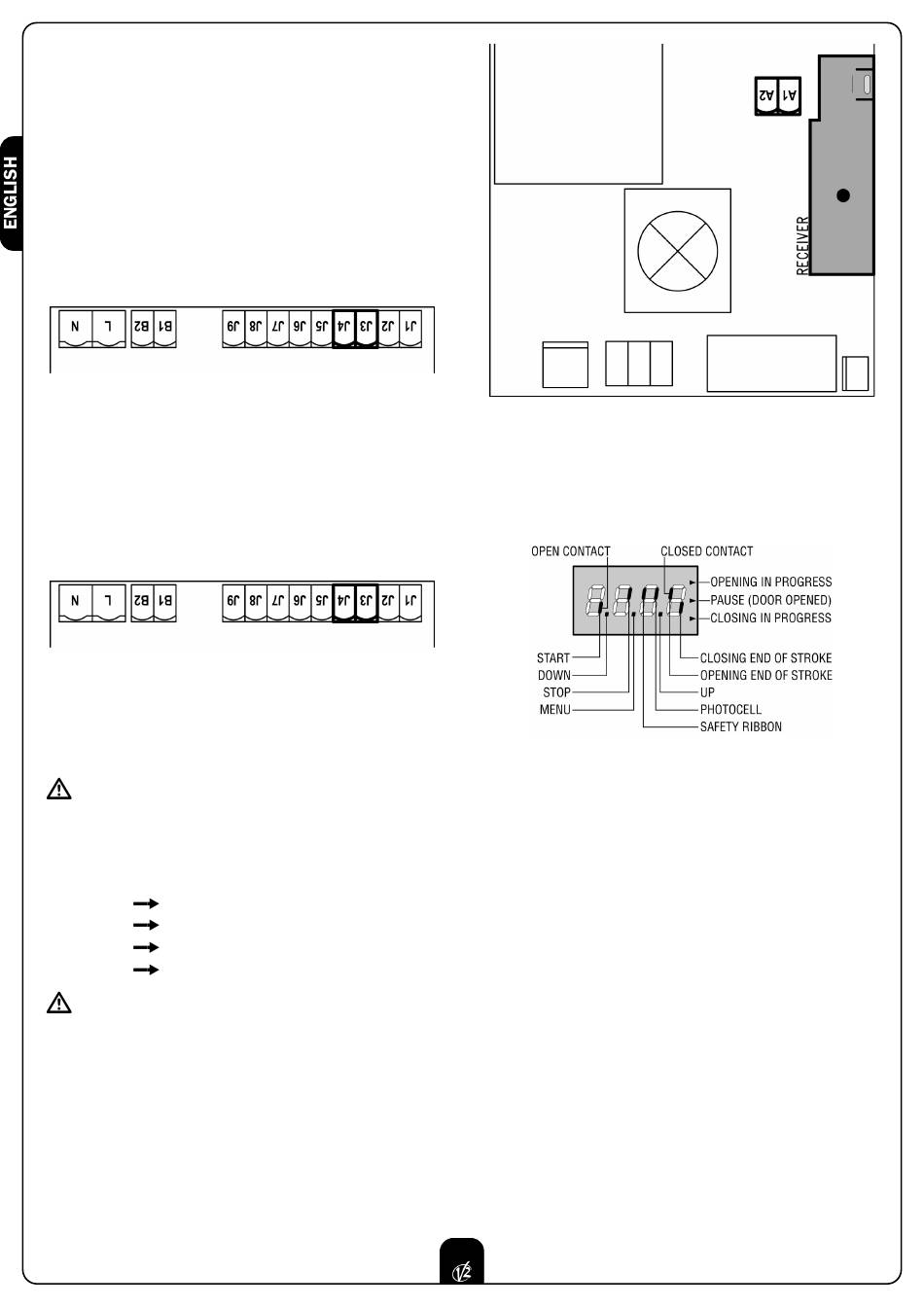

When power is on, the control unit checks that display correctly
operates by switching on all segments for 1.5 sec. 8.8.8.8.
Firmware version, e.g. Pr 2.0, will be viewed in the following 1.5
sec. Panel will be viewed upon completion of this test.
The control panel represents the physical status of the
terminal board contacts and of the program mode keys: if the
upper vertical segment is on, the contact is closed; if the lower
vertical segment is on, the contact is open (the picture above
shows the case of START, STOP , FOTO, COSTA, FCA and FCC
inputs correctly connected with the door closed).
Points being among display digits show the status of
programming push-buttons: as soon as a push-button is
pressed, its relevant point turns on.
The arrows on the display right side show the door status:
• The highest arrow turns on when the door is into its opening
phase. If it blinks, it means that the opening has been
caused by a safety device (border or obstacle detector).
• The central arrow shows that the door is on pause. If it
blinks, it means that the time countdown for the automatic
closing has been activated.
• The lowest arrow blinks when the door is into its closing
phase. If it blinks, it means that the closing has been
caused by a safety device (border or obstacle detector).
