III.

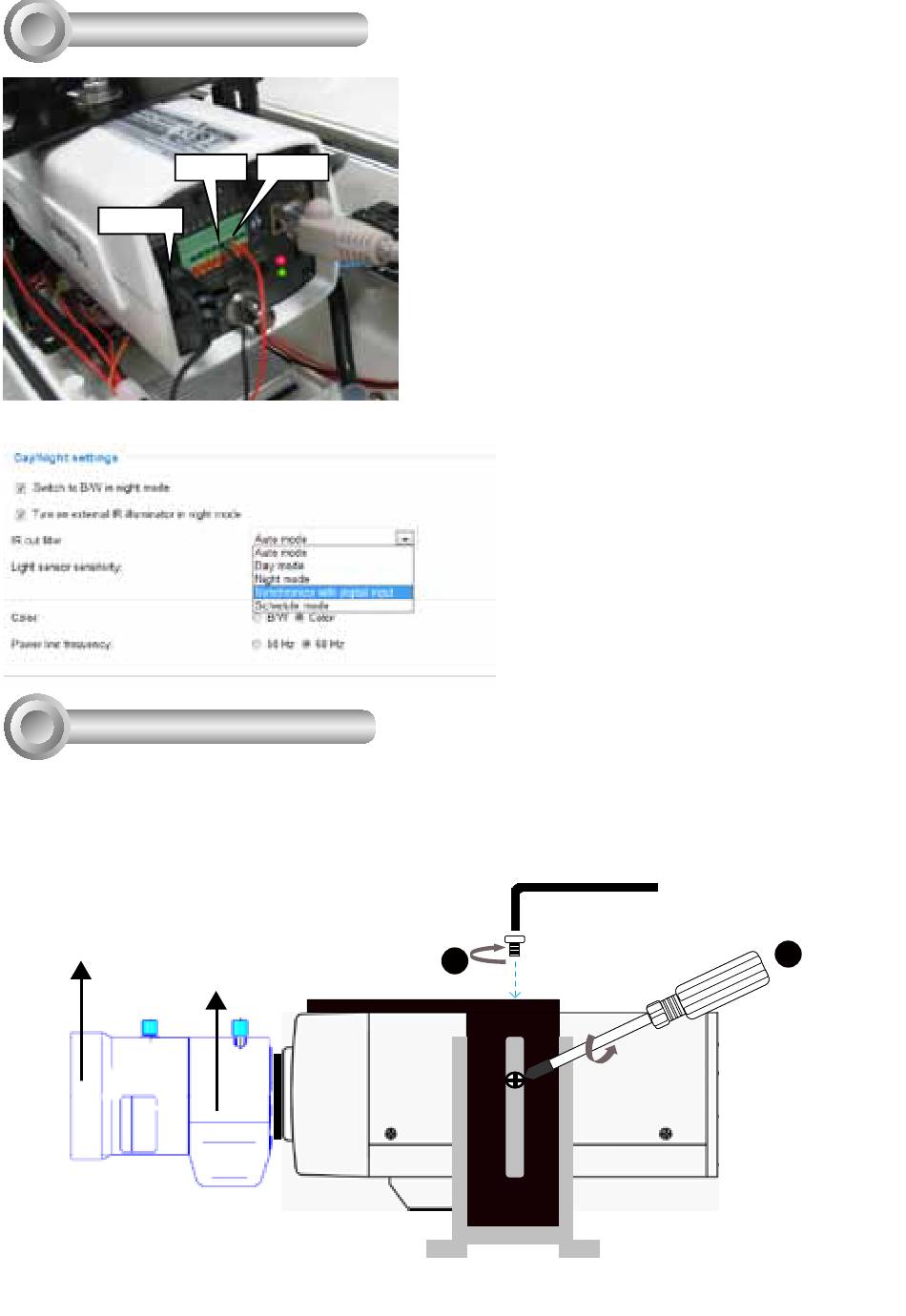

Interface connection

DC 12V
IV. Hardware installation
1. Loosen two screws on both sides of the camera bracket, and then adjust the position of
camera bracket by sliding it up and down.
2. Use the supplied L-type hex key wrench to fix the camera on the camera bracket.
3. Connect the power cable and Ethernet cable to the camera.
Side View
Zoom ring
Focus ring
Ground DI
Once a camera is installed, you can connect
the 12V DC phone jack connector to power the
camera.
Since the housing comes with a light sensor,
which controls when to turn into the night mode
and light the IR LEDs, you can connect the red or
orange wire to the DI pin on the camera's terminal
block, and the black wire to the Ground pin.
The following determines which wire (Red or
Orange) should be connected to the DI pin.
Red: If IR trigger signal is on the high position (+5V
DC), connect the Red and Black wires.
Orange: If IR trigger signal is on the Low position
(+0V DC), connect the Orange and Black wires.
Configure the camera's IR cut filter
setting (if your camera comes with it) to
"Synchronize with digital input."
The configuration option can be found in
Configuration > Media > Image > General
settings > Day/Night settings > IR cut filter.
L-type hex key wrench
2
4
1
