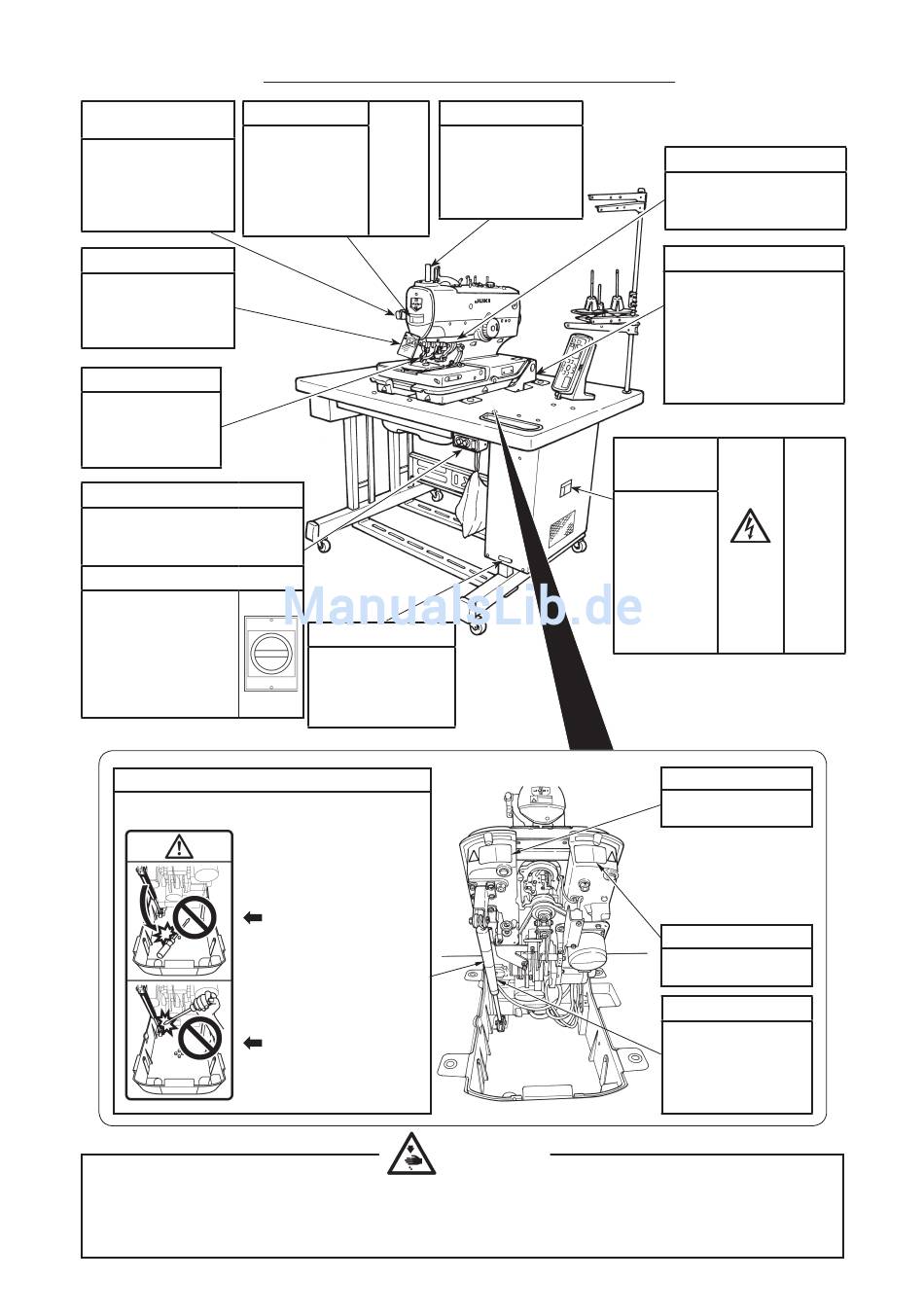

Temporary stop
Warning label
switch
The label gives
Press this switch
t h e m i n i m u m
to stop the sewing
precautions to
machine when you
be taken when
need to stop it while
o p e r a t i n g t h e
it is in operation.
sewing machine.
Eye protection cover
T h i s i s a c o v e r f o r
protecting eyes from
being injured by a bro-
ken needle.
Finger guard
This is a cover for
preventing contact
between fingers
and the needle.
Power switch
This is a switch for disconnecting
the power unit of the sewing ma-
chine from the power supply.
Power switch (EU type)
T h i s s w i t c h i s u s e d
for disconnecting the
power unit of the sew-
ing machine from the
power supply. It is also
used as the emergency
stop switch.
Close/open caution label
Cautions when closing/opening the sewing
machine are described.
• When returning the
• When raising the
In addition, be aware that the safety devices such as the "eye protection cover" and "finger guard" are some-
times omitted in the sketches, illustrations and figures included in the Instruction Manual for the explanation's
sake. In the practical use, never remove those safety devices.
