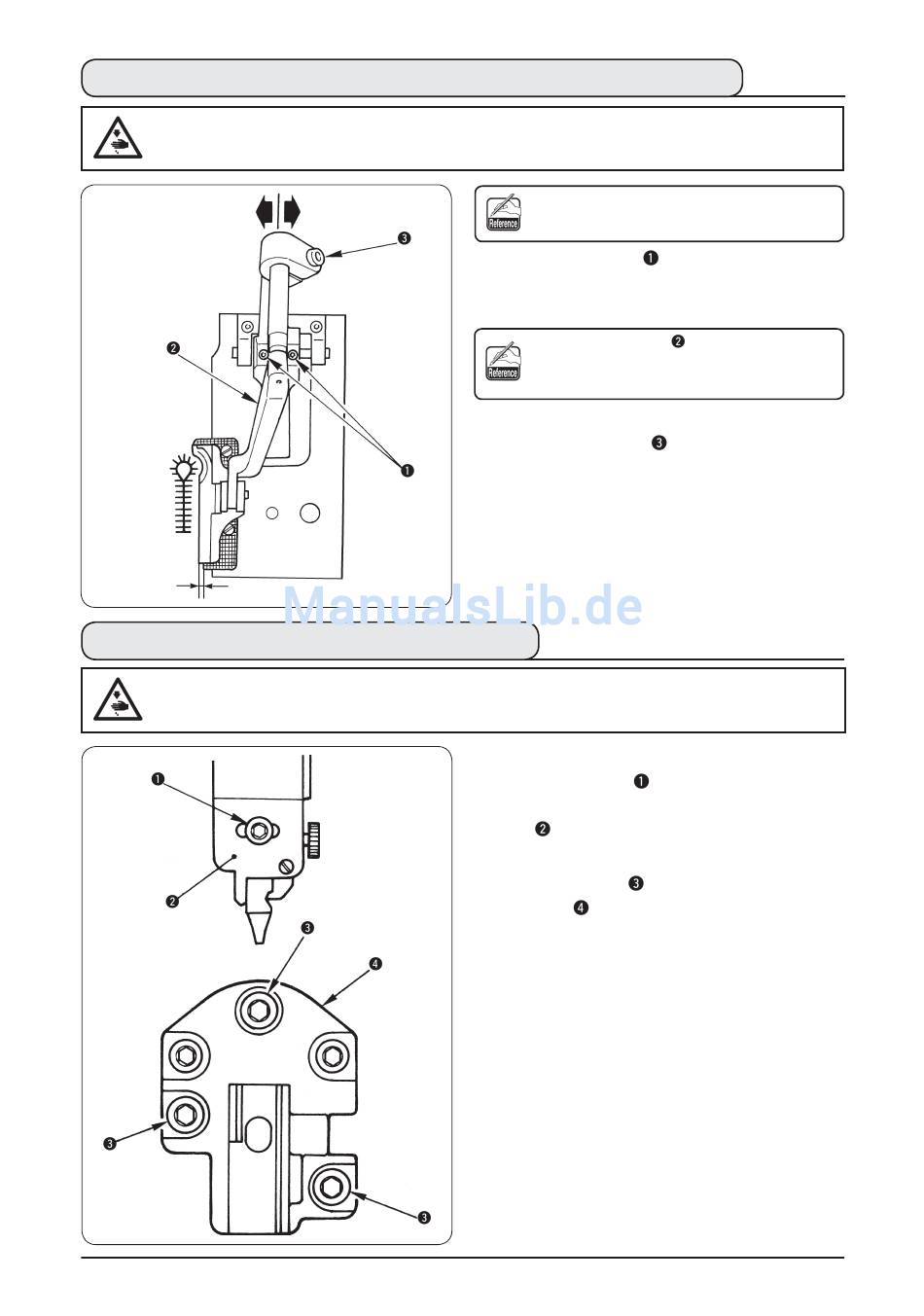

(6) Position of the presser foot and the needle entry point

WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of
the sewing machine.
A
0 to 0.5 mm

(7) Adjusting the knife dropping position

WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of
the sewing machine.
50
中国缝纫机设备网
B
Loosen two setscrews
and the adjust the clearance. Then fix the presser
arm in place.
＊ The front or rear inclination can be adjusted with
●
●
Adjust the clearance between the presser
foot and the holding plate to 0 to 0.5 mm.
Moving presser arm
reduce the clearance between the presser
foot and the outside needle entry point.
presser arm setscrew
Upper knife type
Loosen setscrew in the cloth cutting knife
installing base, adjust cloth cutting knife installing
base to the left or right. Then fix the base.
Lower knife type
Loosen setscrews in the knife base and adjust
knife base to the left or right. Then fix the knife
base.
