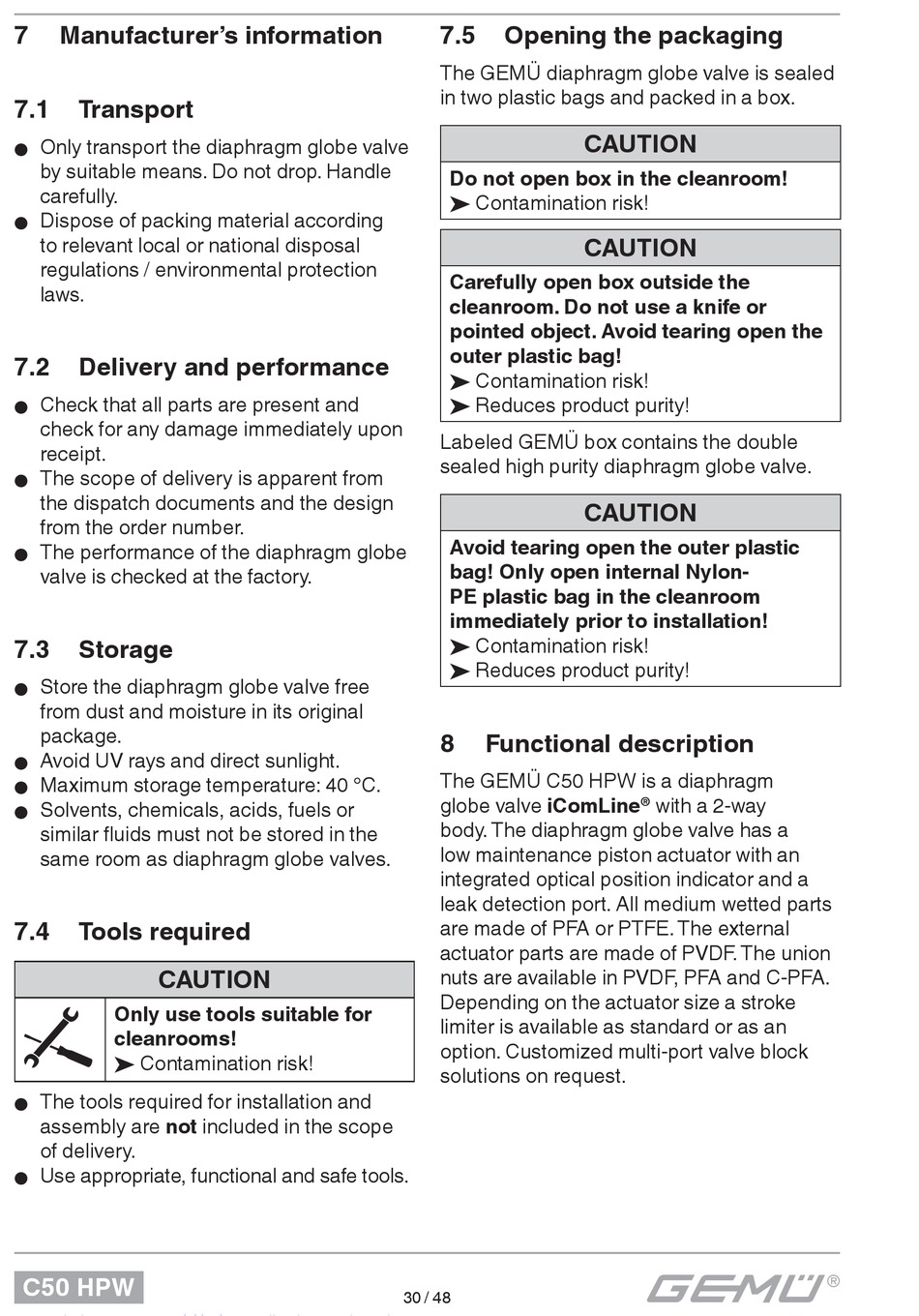

7

Manufacturer's information

7.1

Transport

Only transport the diaphragm globe valve
G
by suitable means. Do not drop. Handle
carefully.
Dispose of packing material according
G
to relevant local or national disposal
regulations / environmental protection
laws.
7.2

Delivery and performance

Check that all parts are present and
G
check for any damage immediately upon
receipt.
The scope of delivery is apparent from
G
the dispatch documents and the design
from the order number.
The performance of the diaphragm globe
G
valve is checked at the factory.
7.3

Storage

Store the diaphragm globe valve free
G
from dust and moisture in its original
package.
Avoid UV rays and direct sunlight.
G
Maximum storage temperature: 40 °C.
G
Solvents, chemicals, acids, fuels or
G
similar fl uids must not be stored in the
same room as diaphragm globe valves.
7.4

Tools required

CAUTION
Only use tools suitable for
cleanrooms!
® Contamination risk!
The tools required for installation and
G
assembly are not included in the scope
of delivery.
Use appropriate, functional and safe tools.
G
C50 HPW
7.5

Opening the packaging

The GEMÜ diaphragm globe valve is sealed
in two plastic bags and packed in a box.
Do not open box in the cleanroom!
® Contamination risk!
Carefully open box outside the
cleanroom. Do not use a knife or
pointed object. Avoid tearing open the
outer plastic bag!
® Contamination risk!
® Reduces product purity!
Labeled GEMÜ box contains the double
sealed high purity diaphragm globe valve.
Avoid tearing open the outer plastic
bag! Only open internal Nylon-
PE plastic bag in the cleanroom
immediately prior to installation!
® Contamination risk!
® Reduces product purity!
8

Functional description

The GEMÜ C50 HPW is a diaphragm
globe valve iComLine
body. The diaphragm globe valve has a
low maintenance piston actuator with an
integrated optical position indicator and a
leak detection port. All medium wetted parts
are made of PFA or PTFE. The external
actuator parts are made of PVDF. The union
nuts are available in PVDF, PFA and C-PFA.
Depending on the actuator size a stroke
limiter is available as standard or as an
option. Customized multi-port valve block
solutions on request.
30 / 48
CAUTION
CAUTION
CAUTION
with a 2-way
®
