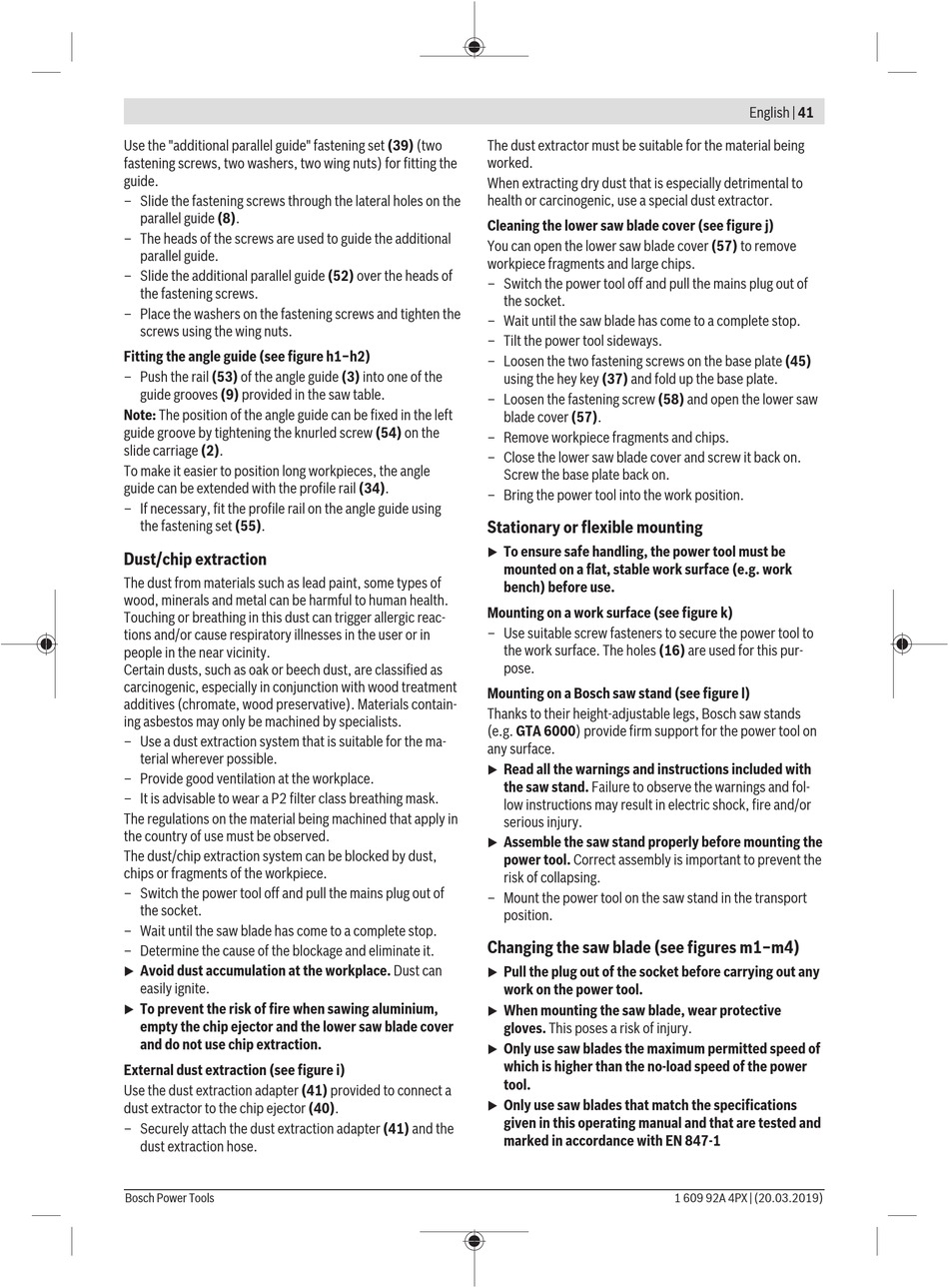

Use the "additional parallel guide" fastening set (39) (two
fastening screws, two washers, two wing nuts) for fitting the
guide.
– Slide the fastening screws through the lateral holes on the
parallel guide (8).
– The heads of the screws are used to guide the additional
parallel guide.
– Slide the additional parallel guide (52) over the heads of
the fastening screws.
– Place the washers on the fastening screws and tighten the
screws using the wing nuts.
Fitting the angle guide (see figure h1−h2)
– Push the rail (53) of the angle guide (3) into one of the
guide grooves (9) provided in the saw table.
Note: The position of the angle guide can be fixed in the left
guide groove by tightening the knurled screw (54) on the
slide carriage (2).
To make it easier to position long workpieces, the angle
guide can be extended with the profile rail (34).
– If necessary, fit the profile rail on the angle guide using
the fastening set (55).

Dust/chip extraction

The dust from materials such as lead paint, some types of
wood, minerals and metal can be harmful to human health.
Touching or breathing in this dust can trigger allergic reac-
tions and/or cause respiratory illnesses in the user or in
people in the near vicinity.
Certain dusts, such as oak or beech dust, are classified as
carcinogenic, especially in conjunction with wood treatment
additives (chromate, wood preservative). Materials contain-
ing asbestos may only be machined by specialists.
– Use a dust extraction system that is suitable for the ma-
terial wherever possible.
– Provide good ventilation at the workplace.
– It is advisable to wear a P2 filter class breathing mask.
The regulations on the material being machined that apply in
the country of use must be observed.
The dust/chip extraction system can be blocked by dust,
chips or fragments of the workpiece.
– Switch the power tool off and pull the mains plug out of
the socket.
– Wait until the saw blade has come to a complete stop.
– Determine the cause of the blockage and eliminate it.
Avoid dust accumulation at the workplace. Dust can
u
easily ignite.
To prevent the risk of fire when sawing aluminium,
u
empty the chip ejector and the lower saw blade cover
and do not use chip extraction.
External dust extraction (see figure i)
Use the dust extraction adapter (41) provided to connect a
dust extractor to the chip ejector (40).
– Securely attach the dust extraction adapter (41) and the
dust extraction hose.
Bosch Power Tools
The dust extractor must be suitable for the material being
worked.
When extracting dry dust that is especially detrimental to
health or carcinogenic, use a special dust extractor.
Cleaning the lower saw blade cover (see figure j)
You can open the lower saw blade cover (57) to remove
workpiece fragments and large chips.
– Switch the power tool off and pull the mains plug out of
the socket.
– Wait until the saw blade has come to a complete stop.
– Tilt the power tool sideways.
– Loosen the two fastening screws on the base plate (45)
using the hey key (37) and fold up the base plate.
– Loosen the fastening screw (58) and open the lower saw
blade cover (57).
– Remove workpiece fragments and chips.
– Close the lower saw blade cover and screw it back on.
Screw the base plate back on.
– Bring the power tool into the work position.
Stationary or flexible mounting
To ensure safe handling, the power tool must be
u
mounted on a flat, stable work surface (e.g. work
bench) before use.
Mounting on a work surface (see figure k)
– Use suitable screw fasteners to secure the power tool to
the work surface. The holes (16) are used for this pur-
pose.
Mounting on a Bosch saw stand (see figure l)
Thanks to their height-adjustable legs, Bosch saw stands
(e.g. GTA 6000) provide firm support for the power tool on
any surface.
Read all the warnings and instructions included with
u
the saw stand. Failure to observe the warnings and fol-
low instructions may result in electric shock, fire and/or
serious injury.
Assemble the saw stand properly before mounting the
u
power tool. Correct assembly is important to prevent the
risk of collapsing.
– Mount the power tool on the saw stand in the transport
position.
Changing the saw blade (see figures m1−m4)
Pull the plug out of the socket before carrying out any
u
work on the power tool.
When mounting the saw blade, wear protective
u
gloves. This poses a risk of injury.
Only use saw blades the maximum permitted speed of
u
which is higher than the no-load speed of the power
tool.
Only use saw blades that match the specifications
u
given in this operating manual and that are tested and
marked in accordance with EN 847-1
