CAUTION
Material damage through bending!
The triangular plug of the adapter
cable is easily damaged, e.g. through
bending.
f Do not touch the contact pins of
the triangular plug.
f Before inserting, check the triangu-
lar plug and the slot on the smoke
alarm device for contamination
as well as for possible interfering
edges and remove them.
f Pay attention to ease of movement
when inserting the triangular plug in
the slot on the smoke alarm device.
(2) Remove the protective cap of the
triangular plug of the adapter cable.
(3) Carefully insert the triangular plug of
the adapter cable into the triangular
slot on the smoke alarm device.
Operating Manual: RWM MC - Diagnostic device for smoke alarm devices
34

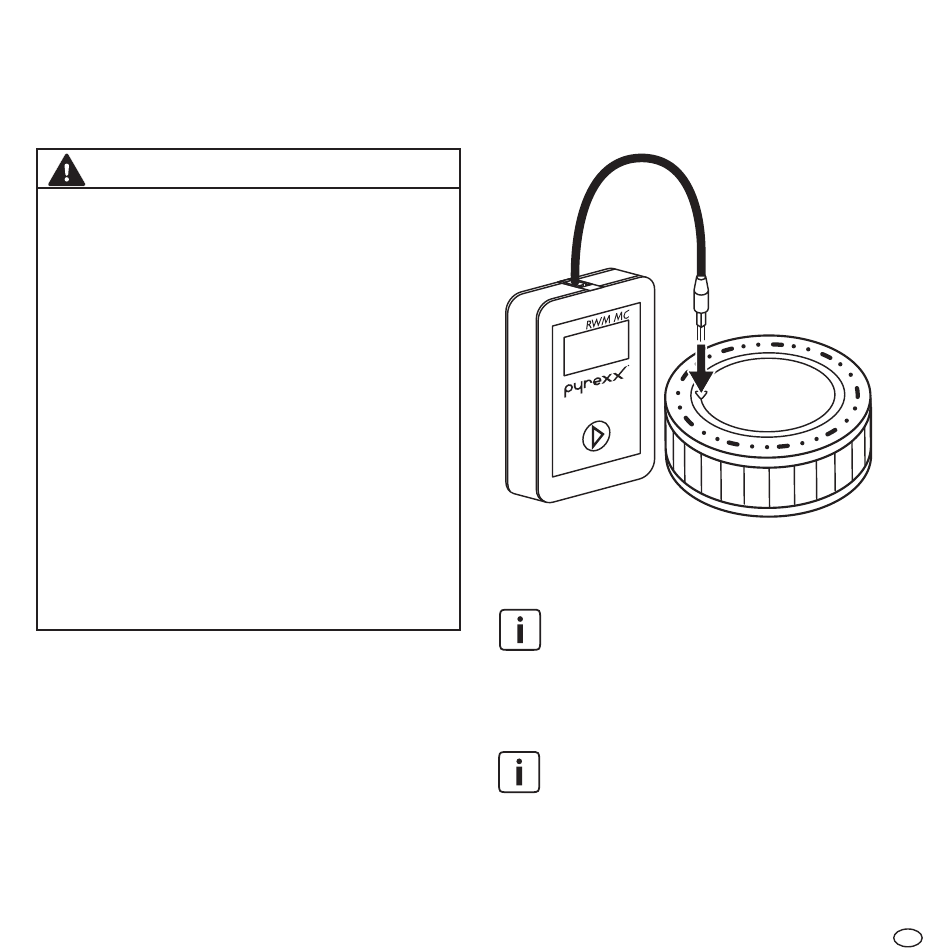

Fig. 6
Connect the RWM MC to the
smoke alarm device
The long side of the triangular plug
is marked with the logo of
Pyrexx GmbH.
5.3 Reading out the smoke alarm device
A readout cycle of one year is
recommended.
After you have switched on the device
and connected the smoke alarm device
