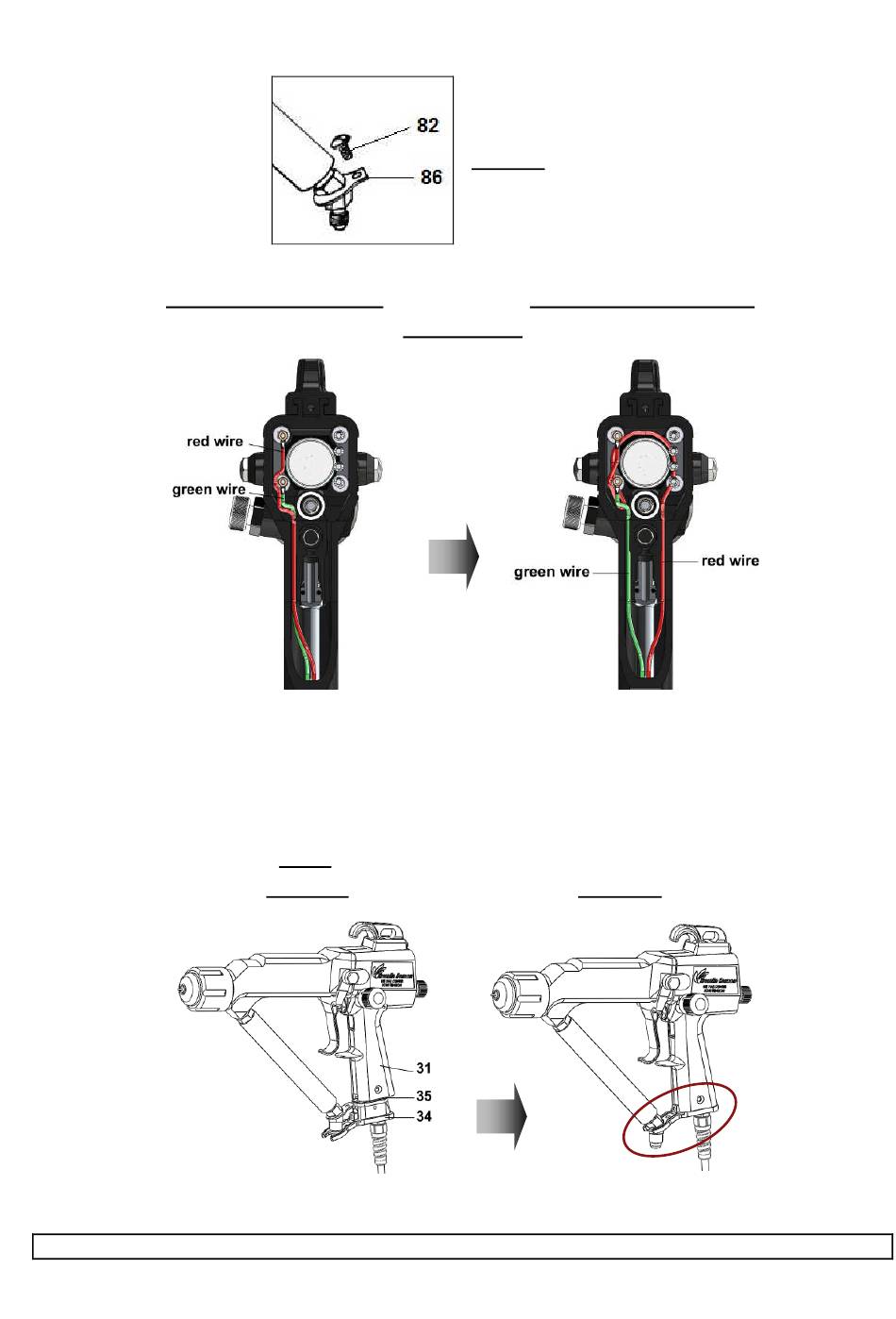

1 - Install the plate (86) on the fitting (refer to view n°5).
View n° 5
2 - Introduce the high voltage cable into the gun thanks to the guide wires (refer to view n°6b).
View n° 6a - Old installation View n° 6b - New installation
Gun rear views
3 - Pull the wires until the bracket rests on its handle (31) (refer to view n°7a).
4 - Enter the bracket (34) in and fix it with the 2 screws (85) (refer to view n°7b).
5 - Screw the air hose (36).
6 - Fasten the screw (84).
7 - Re-tighten the screw (82).
8 - Take off the guide wires of the rope-thimble (97).
9 - Carry out the operations 2 to 11 of generator and oscillator installation.
View n° 7a View n° 7b
KREMLIN REXSON 8 Doc. / Dok. 573.675.070
