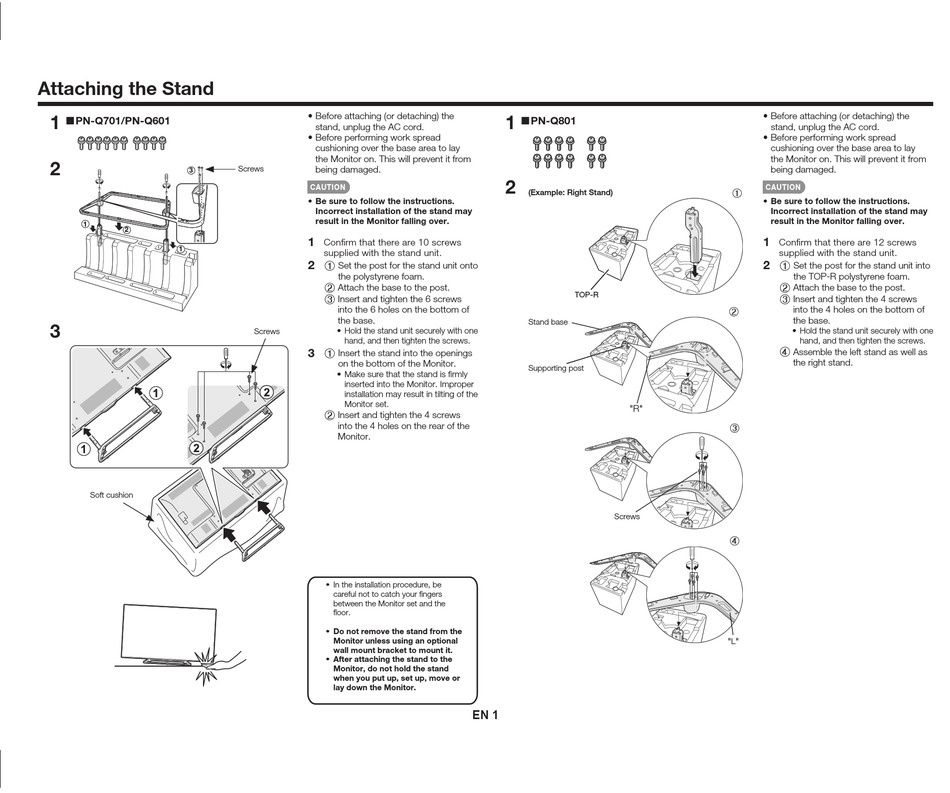

Attaching the Stand

1
■ PN-Q701/PN-Q601
2
3
1
2
1
3
Soft cushion
• Before attaching (or detaching) the
stand, unplug the AC cord.
• Before performing work spread
cushioning over the base area to lay
the Monitor on. This will prevent it from
Screws being damaged.
CAUTION
• Be sure to follow the instructions.
Incorrect installation of the stand may
result in the Monitor falling over.
1
Confirm that there are 10 screws
supplied with the stand unit.
2
1 Set the post for the stand unit onto
the polystyrene foam.
2 Attach the base to the post.
3 Insert and tighten the 6 screws
into the 6 holes on the bottom of
the base.
• Hold the stand unit securely with one
Screws
hand, and then tighten the screws.
3
1 Insert the stand into the openings
on the bottom of the Monitor.
• Make sure that the stand is firmly
inserted into the Monitor. Improper
installation may result in tilting of the
Monitor set.
2 Insert and tighten the 4 screws
into the 4 holes on the rear of the
Monitor.
• In the installation procedure, be
careful not to catch your fingers
between the Monitor set and the
floor.
• Do not remove the stand from the
Monitor unless using an optional
wall mount bracket to mount it.
• After attaching the stand to the
Monitor, do not hold the stand
when you put up, set up, move or
lay down the Monitor.
1
■ PN-Q801
2
(Example: Right Stand)
TOP-R
Stand base
Supporting post
"R"
Screws
EN 1
• Before attaching (or detaching) the
stand, unplug the AC cord.
• Before performing work spread
cushioning over the base area to lay
the Monitor on. This will prevent it from
being damaged.
CAUTION
1
• Be sure to follow the instructions.
Incorrect installation of the stand may
result in the Monitor falling over.
1
Confirm that there are 12 screws
supplied with the stand unit.
2
1 Set the post for the stand unit into
the TOP-R polystyrene foam.
2 Attach the base to the post.
3 Insert and tighten the 4 screws
into the 4 holes on the bottom of
2
the base.
• Hold the stand unit securely with one
hand, and then tighten the screws.
4 Assemble the left stand as well as
the right stand.
3
4
" "
L
