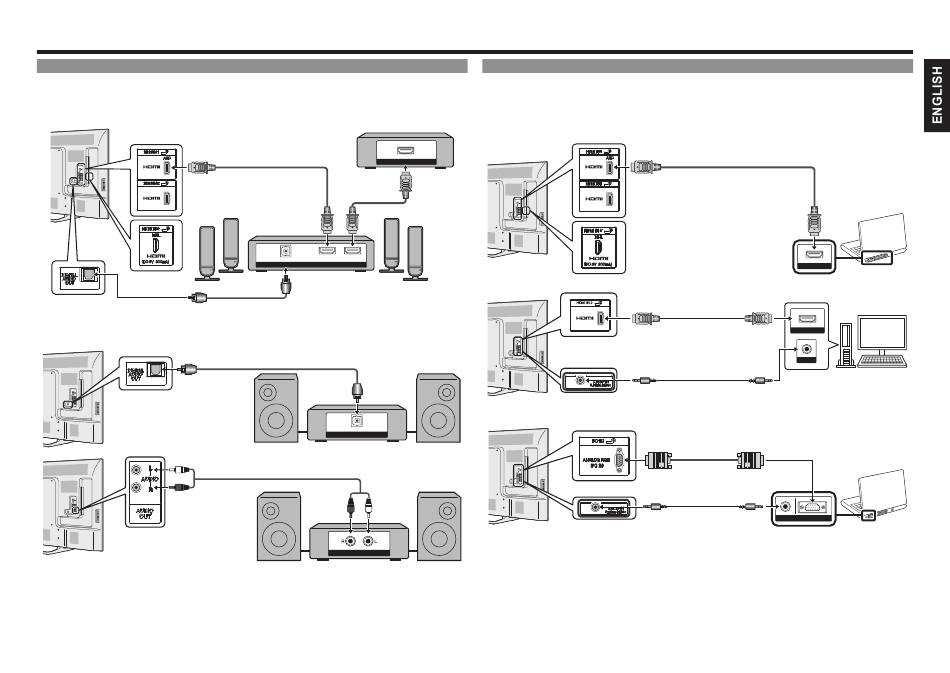

Connection
Connecting a Surround System/Audio System
■ When connecting an AV amplifier for a surround system
• Letting the Monitor output the audio to an AV amplifier:
*1 When you connect ARC-compatible equipment, use HDMI IN 1.
• If the image is not in sync with the audio, check the settings of the connected surround system.
Optical fiber cable
■ When connecting an audio amplifier
It is possible to output audio through the DIGITAL AUDIO OUT terminal.
• In this case, set "DIGITAL AUDIO" to "PCM" or "Bitstream". (Refer to built-in operation manual.)
HD Cable/Satellite set-top box
HDMI-certified cable *1
HDMI OUT
OPTICAL
DIGITAL AUDIO INPUT HDMI OUT HDMI IN
Optical fiber cable
OPTICAL
DIGITAL AUDIO INPUT
Audio cable
ANALOG AUDIO IN
Connecting a PC
Refer to built-in operation manual for a list of PC signals compatible with the Monitor.
■ When using an HDMI cable (HDMI IN 1, 2 or 3):
• Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certified
cable to the HDMI IN 2 terminal, connect a Ø 3.5 mm stereo minijack cable to the AUDIO IN terminal and set "Audio
Select" to "HDMI+Analog". (Refer to built-in operation manual.)
• The HDMI IN terminals only support digital signal.
■ When using an analog RGB cable (PC IN):
• When using an analog RGB cable, input the audio signal to the AUDIO IN terminal of PC IN.
EN 8
HDMI-certified cable
HDMI OUT
or
HDMI-certified cable
HDMI OUT
AUDIO
Ø 3.5 mm stereo minijack cable
Analog RGB cable (D-sub 15-pin cable or VGA cable)
AUDIO RGB
Ø 3.5 mm stereo minijack cable
