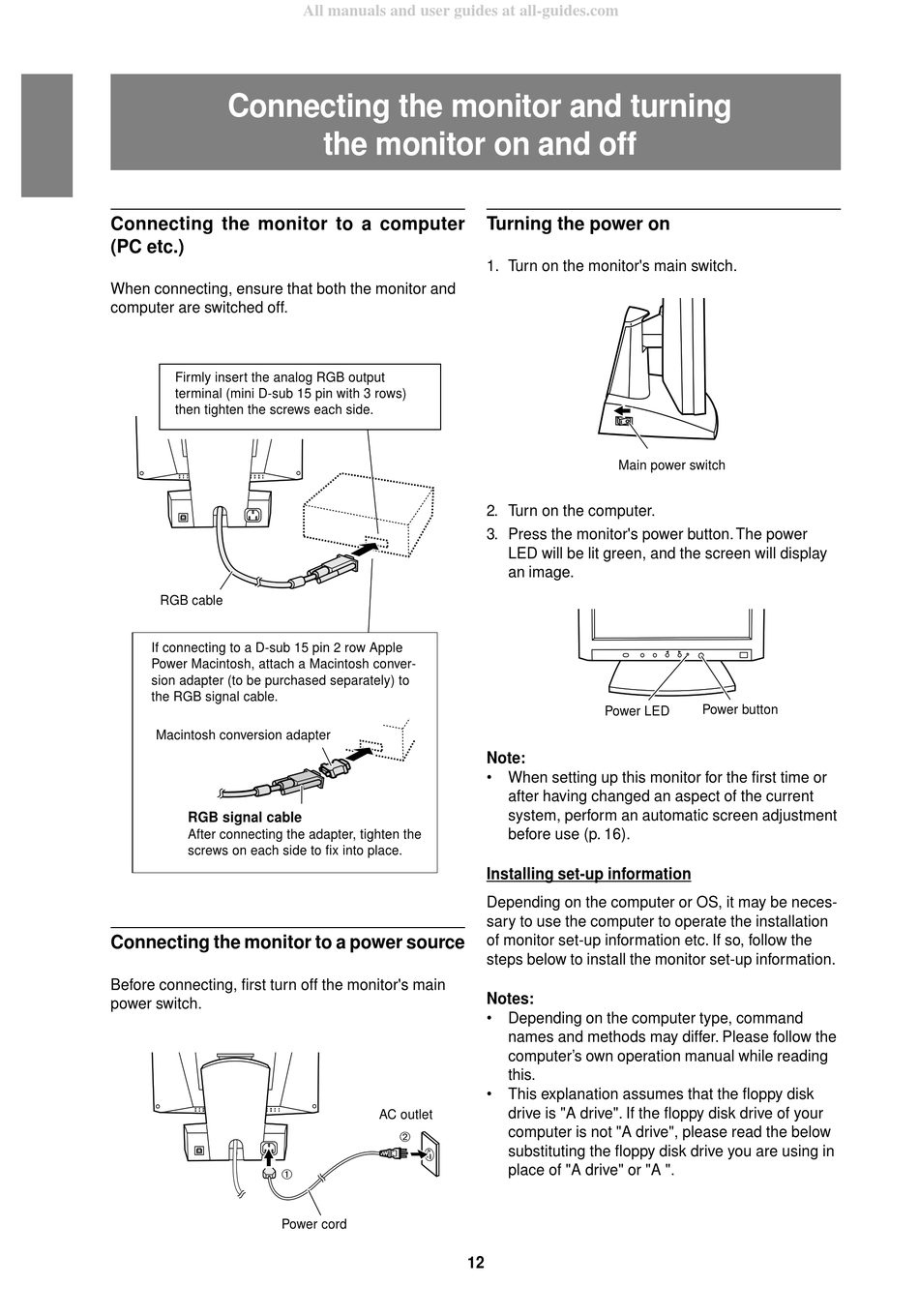

Connecting the monitor and turning
Connecting the monitor to a computer
(PC etc.)
When connecting, ensure that both the monitor and
computer are switched off.
Firmly insert the analog RGB output
terminal (mini D-sub 15 pin with 3 rows)
then tighten the screws each side.
RGB cable
If connecting to a D-sub 15 pin 2 row Apple
Power Macintosh, attach a Macintosh conver-
sion adapter (to be purchased separately) to
the RGB signal cable.
Macintosh conversion adapter
RGB signal cable
After connecting the adapter, tighten the
screws on each side to fix into place.

Connecting the monitor to a power source

Before connecting, first turn off the monitor's main
power switch.
1
Power cord
All manuals and user guides at all-guides.com
the monitor on and off
AC outlet
2
12

Turning the power on

1. Turn on the monitor's main switch.
Main power switch
2. Turn on the computer.
3. Press the monitor's power button. The power
LED will be lit green, and the screen will display
an image.
Power LED
Note:
• When setting up this monitor for the first time or
after having changed an aspect of the current
system, perform an automatic screen adjustment
before use (p. 16).
Installing set-up information
Depending on the computer or OS, it may be neces-
sary to use the computer to operate the installation
of monitor set-up information etc. If so, follow the
steps below to install the monitor set-up information.
Notes:
• Depending on the computer type, command
names and methods may differ. Please follow the
computer's own operation manual while reading
this.
• This explanation assumes that the floppy disk
drive is "A drive". If the floppy disk drive of your
computer is not "A drive", please read the below
substituting the floppy disk drive you are using in
place of "A drive" or "A ".
Power button
