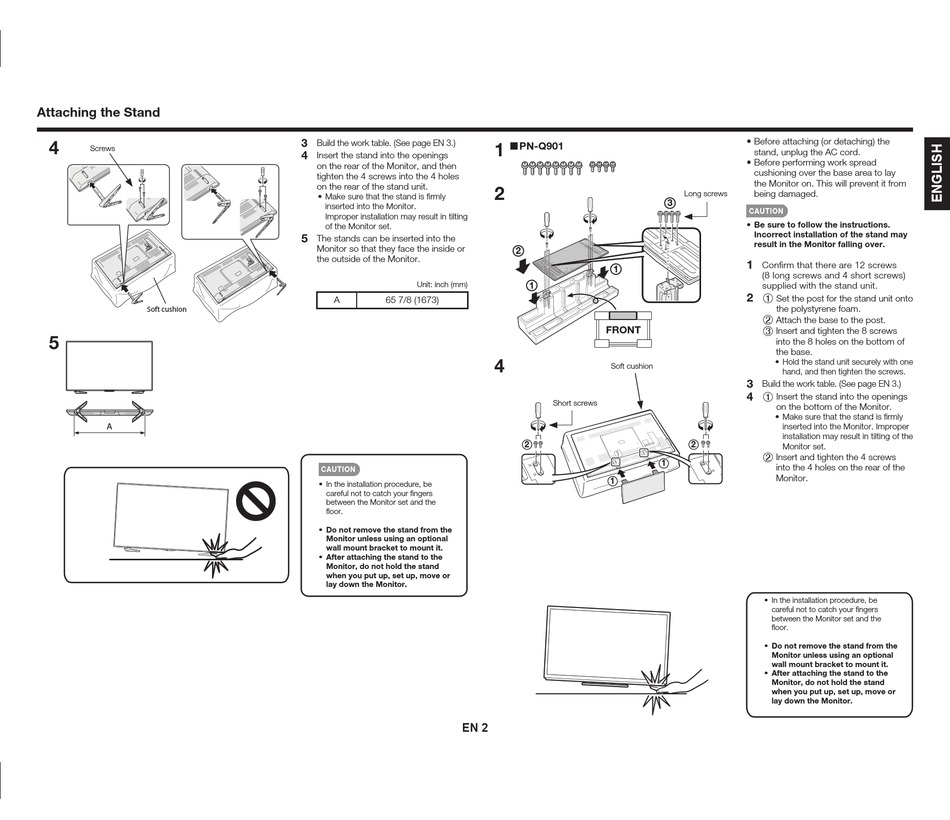

Attaching the Stand
4
Screws
Soft cushion
5
A
3
Build the work table. (See page EN 3.)
4
Insert the stand into the openings
on the rear of the Monitor, and then
tighten the 4 screws into the 4 holes
on the rear of the stand unit.
• Make sure that the stand is firmly
inserted into the Monitor.
Improper installation may result in tilting
of the Monitor set.
5
The stands can be inserted into the
Monitor so that they face the inside or
the outside of the Monitor.
Unit: inch (mm)
A 65 7/8 (1673)
CAUTION
• In the installation procedure, be
careful not to catch your fingers
between the Monitor set and the
floor.
• Do not remove the stand from the
Monitor unless using an optional
wall mount bracket to mount it.
• After attaching the stand to the
Monitor, do not hold the stand
when you put up, set up, move or
lay down the Monitor.
EN 2
1
■ PN-Q901
2
3
2
1
1
FRONT
4
Soft cushion
Short screws
2
1
1
• Before attaching (or detaching) the
stand, unplug the AC cord.
• Before performing work spread
cushioning over the base area to lay
the Monitor on. This will prevent it from
being damaged.
Long screws
CAUTION
• Be sure to follow the instructions.
Incorrect installation of the stand may
result in the Monitor falling over.
1
Confirm that there are 12 screws
(8 long screws and 4 short screws)
supplied with the stand unit.
2
1 Set the post for the stand unit onto
the polystyrene foam.
2 Attach the base to the post.
3 Insert and tighten the 8 screws
into the 8 holes on the bottom of
the base.
• Hold the stand unit securely with one
hand, and then tighten the screws.
3
Build the work table. (See page EN 3.)
4
1 Insert the stand into the openings
on the bottom of the Monitor.
• Make sure that the stand is firmly
inserted into the Monitor. Improper
installation may result in tilting of the
2
Monitor set.
2 Insert and tighten the 4 screws
into the 4 holes on the rear of the
Monitor.
• In the installation procedure, be
careful not to catch your fingers
between the Monitor set and the
floor.
• Do not remove the stand from the
Monitor unless using an optional
wall mount bracket to mount it.
• After attaching the stand to the
Monitor, do not hold the stand
when you put up, set up, move or
lay down the Monitor.
