DANGER! Risk of fatal injury!

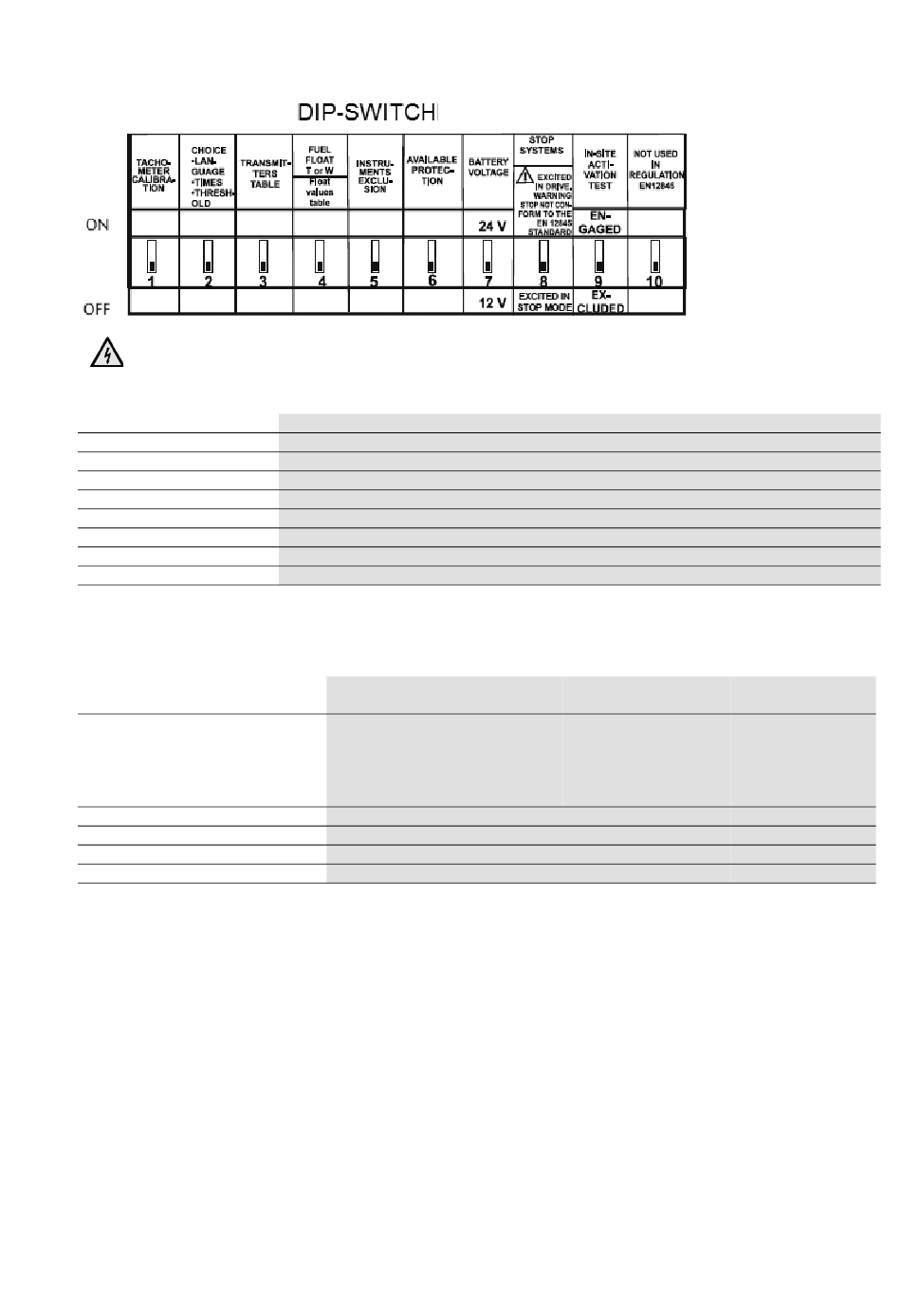

To change the DIP switch position it is necessary
to open the protection on the rear side of the
INSTRUMENTS
A/B Batteries Ammeters
A/B Voltmeters
Total / partial hour meter
Tachometer
Fuel level indicator
Water o oil thermometer
Oil pressure gauge
A/B batteries startups counter Displays the number of startups that have occurred on each battery up to 9999
10.8 Switchgear for diesel pump – Remote alarms
Remote alarm
Switchgear failure
Automatic mode switched off
Diesel pump start failure
Diesel pump in operation
Minimum fuel level
60
Push button 18 on Fig. 15 to see the values
Full scale current 99 A connected with the battery chargers
For voltage from 9 up to 38 Volt connected with the battery chargers
Displays hours and minutes
Full scale 9990 rpm
Not used – only alarm for low level
Displays engine oil or water temperature 30-140 °C
Displays engine oil pressure up to 9 bars
Description
It is detected when one of the fol-
lowing failures occurs:
• Occurred engine alarms
• Mains failure on switchgear
• Battery charger failure
Fig. 16
electronic control inside the switchgear. The DIP
switch setting must be done with the switchgear
main switch QS on Fig. 14 switched OFF.
Terminals on switch-
gear
90 - 8
90 - 91
90 – 94
90 - 92
90 – 93
Symbol on HMI
Fig. 15
17
6
23
8
24
