Installation instructions, only for experts
c
f
b
c
d
e
f
g
h

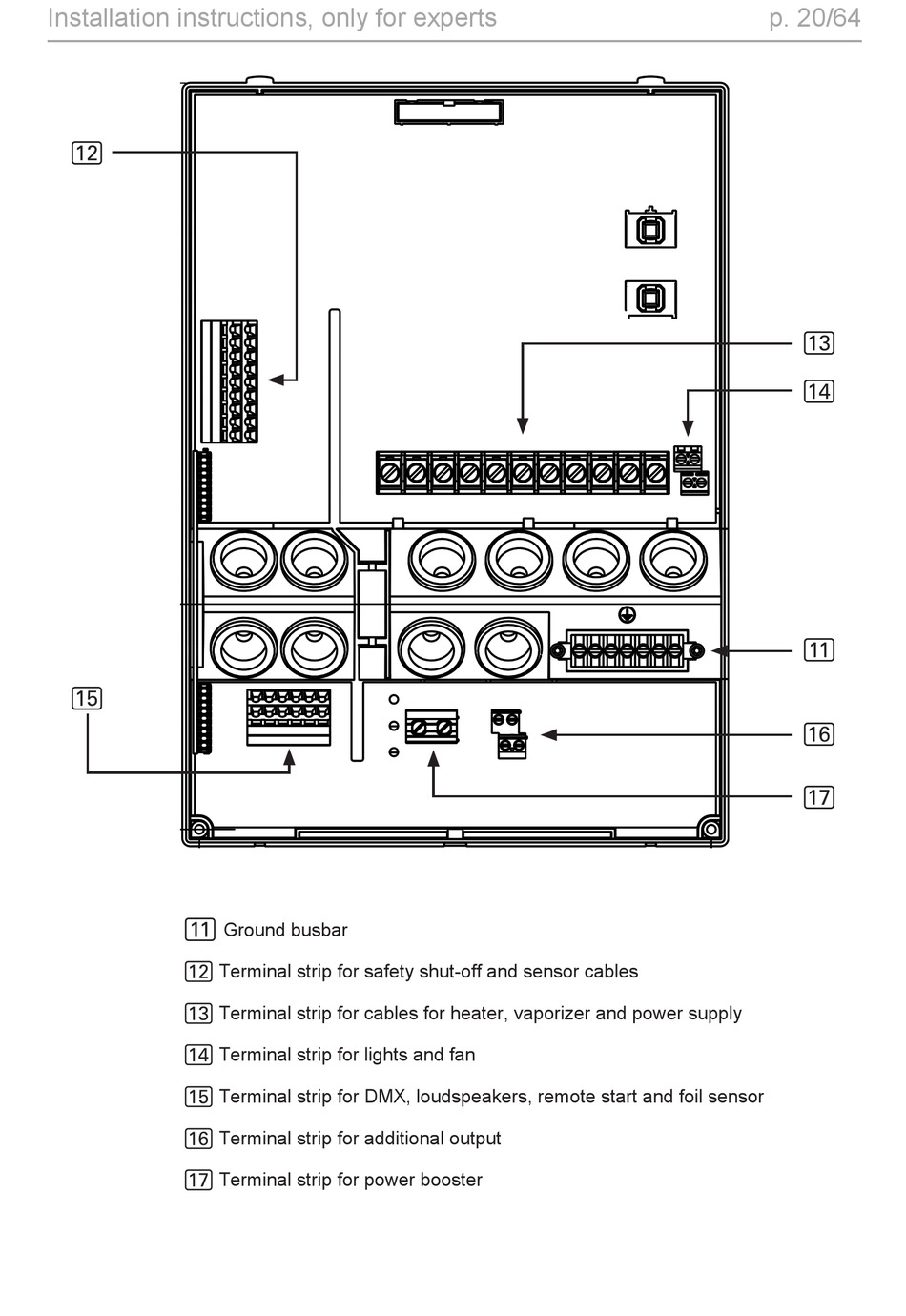

Ground busbar
Terminal strip for safety shut-off and sensor cables
Terminal strip for cables for heater, vaporizer and power supply
Terminal strip for lights and fan
Terminal strip for DMX, loudspeakers, remote start and foil sensor
Terminal strip for additional output
Terminal strip for power booster
