3 Overview
18 Trigger
The trigger switches the chainsaw on and off.
19 Battery
Supplies power to the chain saw.
20 LEDs
Indicate battery's state of charge and malfunctions.
21 Button
Activates the LEDs on the battery.
22 Charger
Charges the battery.
23 LED
The LED indicates the operating status of the charger.
24 Connecting Cable
Connects charger to appliance plug.
25 Appliance Plug
Connects cable to wall outlet.
26 Chain Scabbard
Helps protect user from contact with saw chain.
# Rating label with serial number
3.2

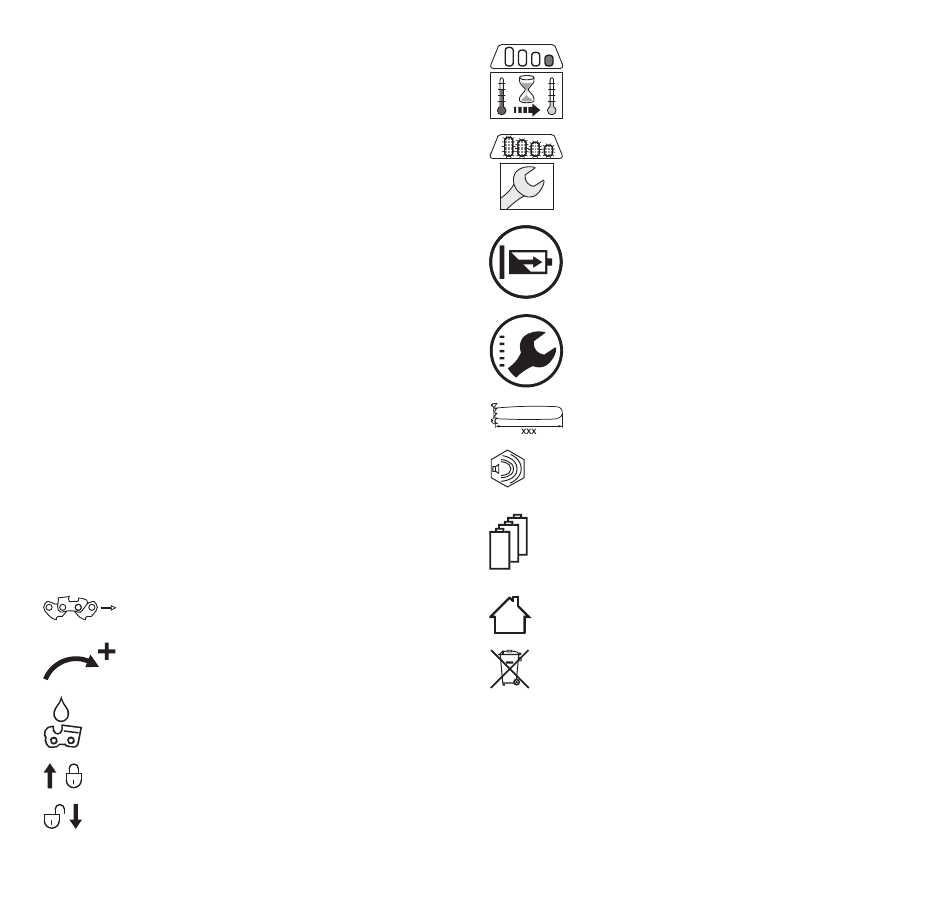

Symbols

Meanings of symbols that may be on the chainsaw, battery
and charger:
This symbol shows the direction of rotation of the
chain.
Turn in this direction to tension the saw chain.
This symbol marks the chain oil tank.
The chain brake is engaged in this direction.
The chain brake is disengaged in this direction.
0458-716-9621-C
1 LED glows red. Battery too hot or too cold.
4 LEDs flash red. There is a malfunction in the
battery.
LED glows green and LEDs on battery glow or
flash green. Battery is being charged.
LED flashes red. No electrical contact between
battery and charger or malfunction in battery or
charger.
Length of guide bar that may be used.
Guaranteed sound power level according to
L
directive 2000/14/EC in dB(A) in order to make
WA
sound emissions of products comparable.
The data next to this symbol indicates the energy
content of the battery according to the cell
manufacturer's specification. The energy content
available during operation is lower.
Operate the electric appliance in a dry place, indoors
only.
Do not dispose of the product with your household
waste.
