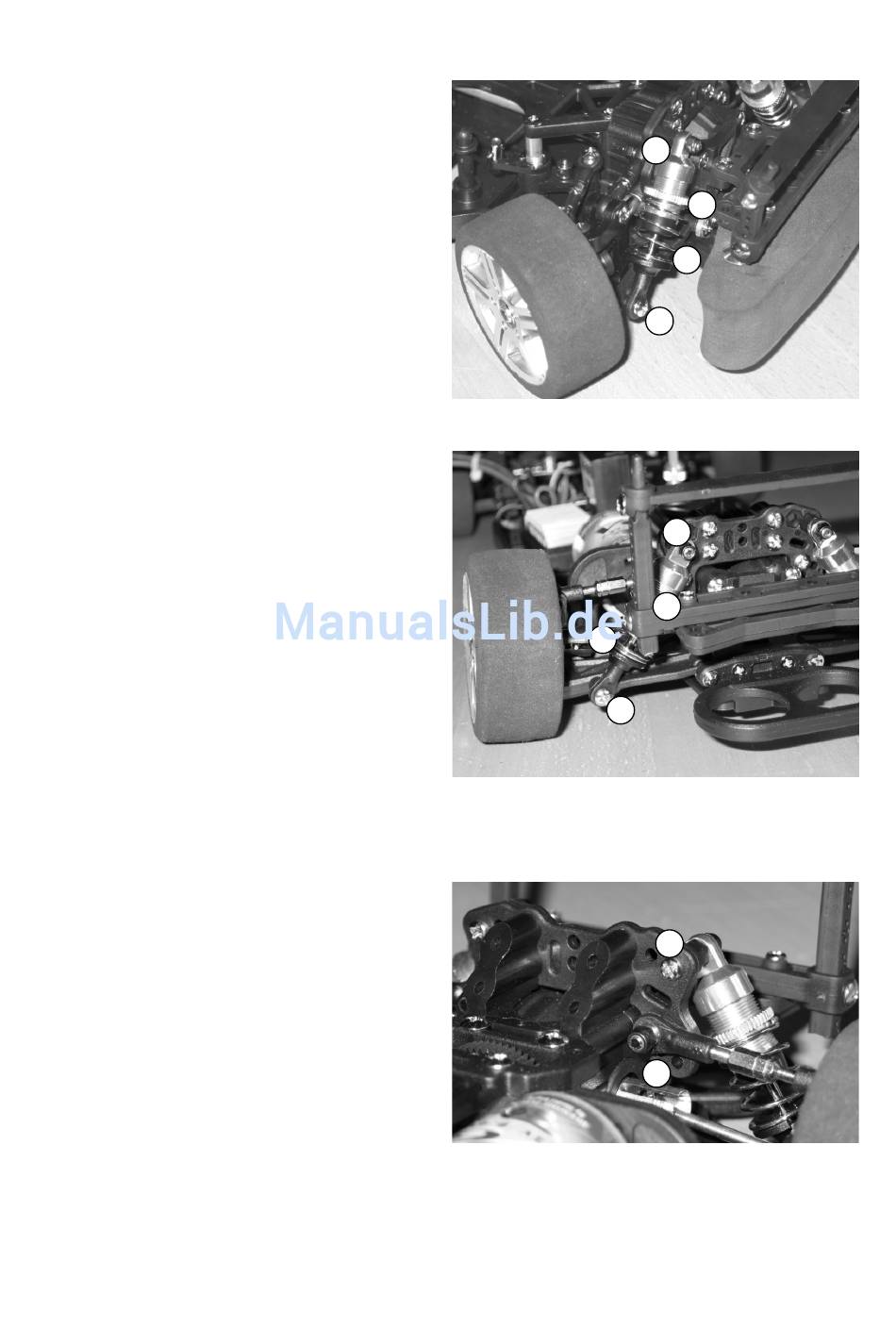

c) Shock absorbers

The vehicle is equipped with high-quality aluminium oil
dampened suspensions that offer you very different setting
options.
With a couple of turns of the adjusting screw (1) the bent
damper spring (2) can be made more or less prestressed
and therefore harder or softer in no time at all.
At the same time the damper top (3) can additionally be
screwed off and the damper can be filled with oils of differ-
ent viscosities, depending on the need. In combination with
various hard damper springs roadholding can be set from
extremely soft to extremely hard.
In connection with the available attachment points available
on the lower transverse links (4) the perfect damper adjust-
ment can be found for any surface.

d) Damper plates

In order to round off the perfect chassis adjustment, the car
furthermore provides damper plates on the front and rear
axle with different attachment points for the adjustable shock
absorbers and transverse links.
3
1
2
4
3
1
2
4
1
2
Figure 17a
Figure 17b
Figure 18
