Elektrischer Anschluss / Electrical connection
6.1
Drehgeber POG 11
6.1.3
Kabelanschluss
6.1.3.1

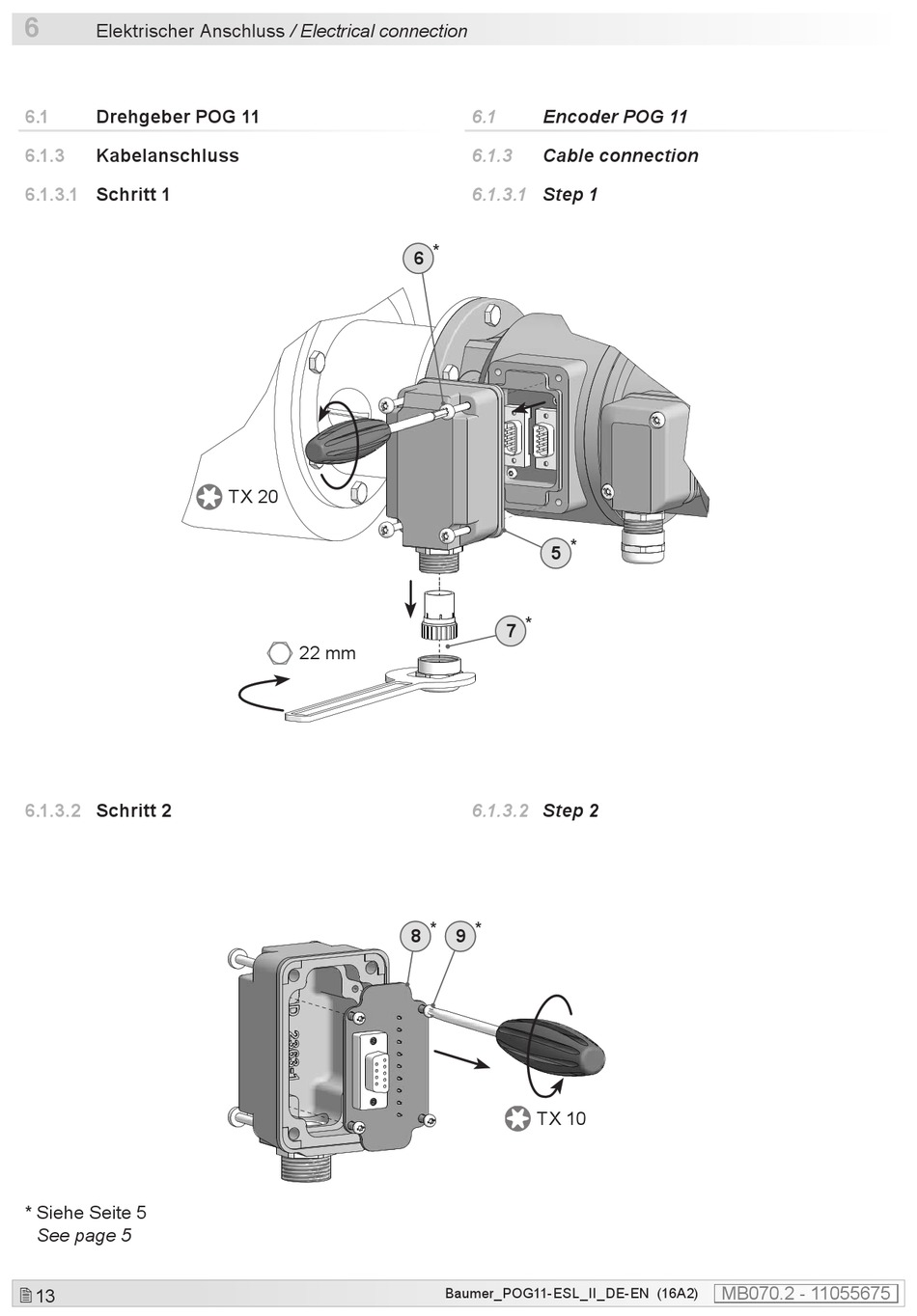

Schritt 1
6.1.3.2
Schritt 2
* Siehe Seite 5
See page 5
13
TX 20
22 mm
6.1
Encoder POG 11
6.1.3
Cable connection
6.1.3.1
Step 1
*
6
*
5
*
7
6.1.3.2
Step 2
*
*
8
9
TX 10
