b) Rear axis

B
• The shock absorbers can be mounted at the top (A) and bottom (B) attachment points at different positions.
• The absorbance of the shock absorber can be modified by adjusting the knurled nut (C) or spring travel can be
limited.
• The camber can be modified by adjusting the upper transverse control arm using a threaded rod (D). You can also
use other pivot points for the transverse control arm (E).
• A grub screw (F) in the lower transverse control arm allows you to limit spring travel.
In addition to the above described adjustment options, you could use different shock absorbers or
springs, and different shock absorber oils with a different viscosity that will influence the springing
behaviour.
38
A
C
E

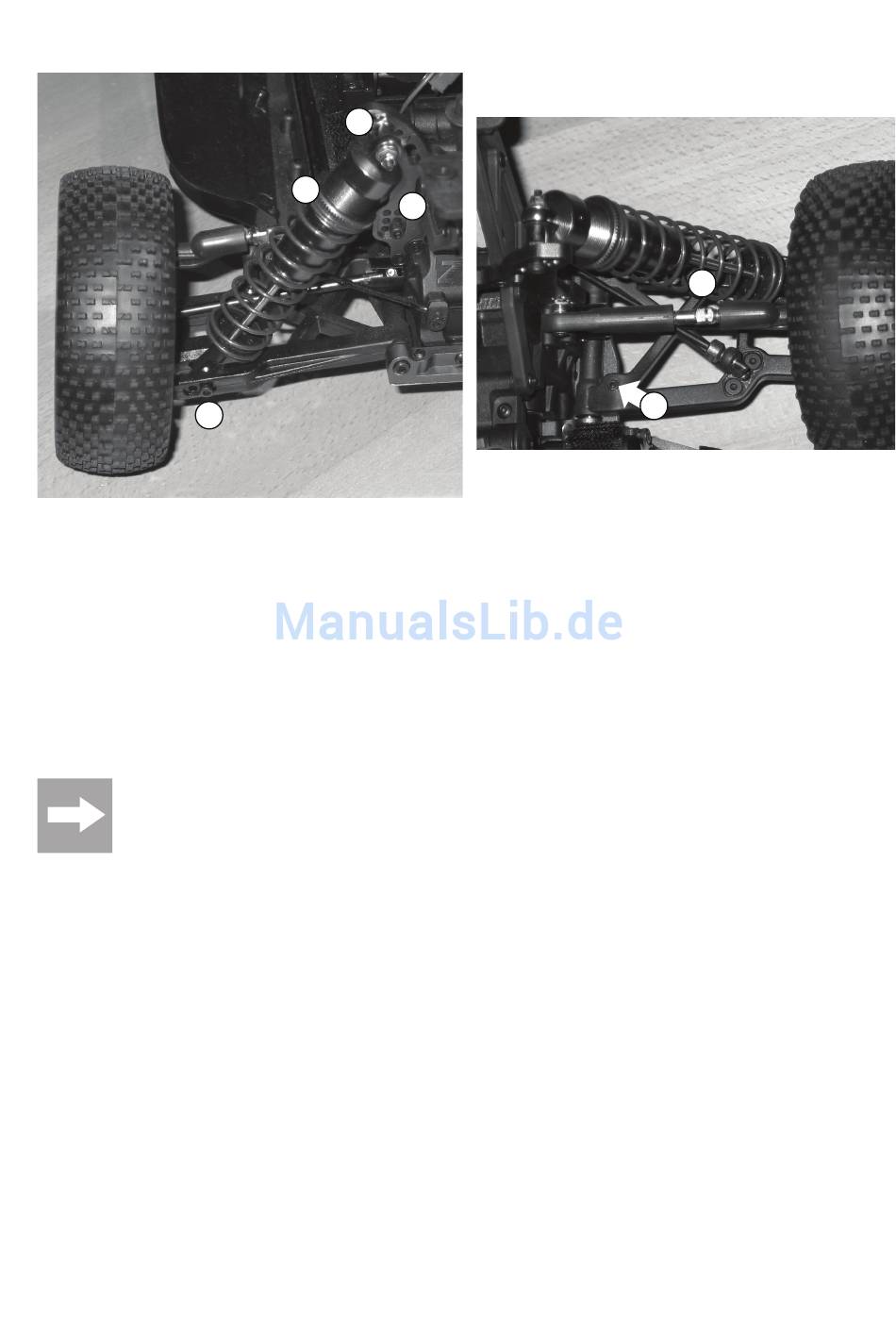

Figure 5
