2. Technical Data
3. Instalation

3.1 Wall installation

The system must be installed on a firm, supporting dry wall. The
distance from the collectors must be far enough to prevent
overheating of the station and the expansion vessel (fit preliminary
vessel if necessary). Dangers from nearby building systems, electric
cables, gas, water or heating pipes must be avoided. Free access to
the station, safety valves and connection lines must be ensured.
1. Select the installation point.
2. Align and mark the drilling holes using the insulating housing.
3. Drill and plug the holes.
4. Mount the station and insulating housing.
5. Connect the pipes with the system switched off.

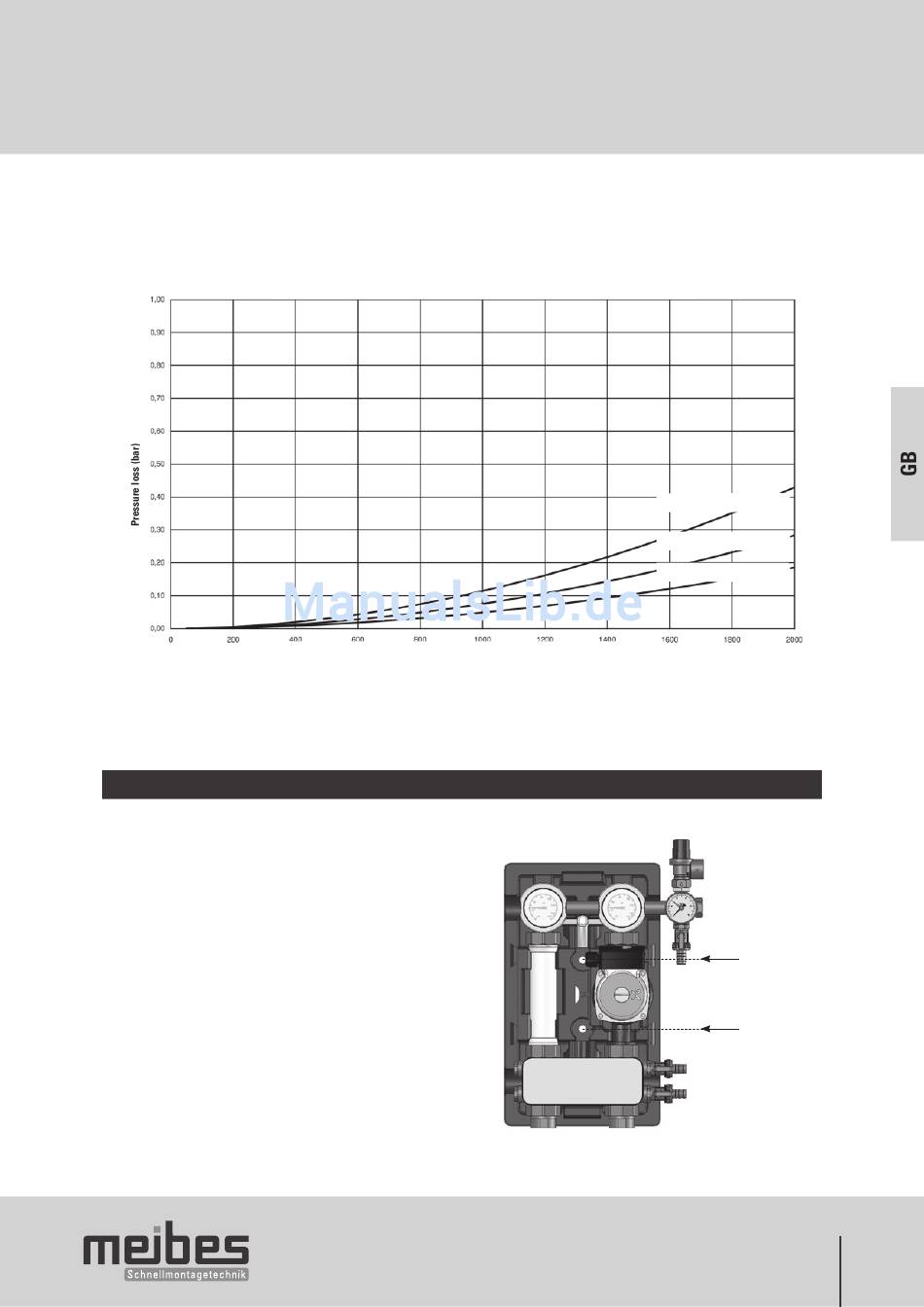

Volume flow pressure loss diagram
Solar separation system secondary side (heat-exchanger)
Volumetric flow (l/h)
16 heat-exchanger plates
20 heat-exchanger plates
26 heat-exchanger plates
Installation points
