1. Safety instructions

1.4 Working on the system

The system must be disconnected from the power supply and checked to ensure it is safely isolated from the power supply (e.g. at the separa-
te fuse or a master switch). Secure the system against being switched back on again.
IMPORTANT: Risk of scalding: Media temperature > 60 °C

1.5 Liability

We reserve all copyrights to this document. These installation and operating instructions must be handed over to the customer. The skilled
trades carrying out the work (e.g. fitter) must explain to the customer how the equipment works and how to operate it in a way they can
understand.

2. Technical Data

For use in thermal solar systems up to approx. 12 m
parameters)

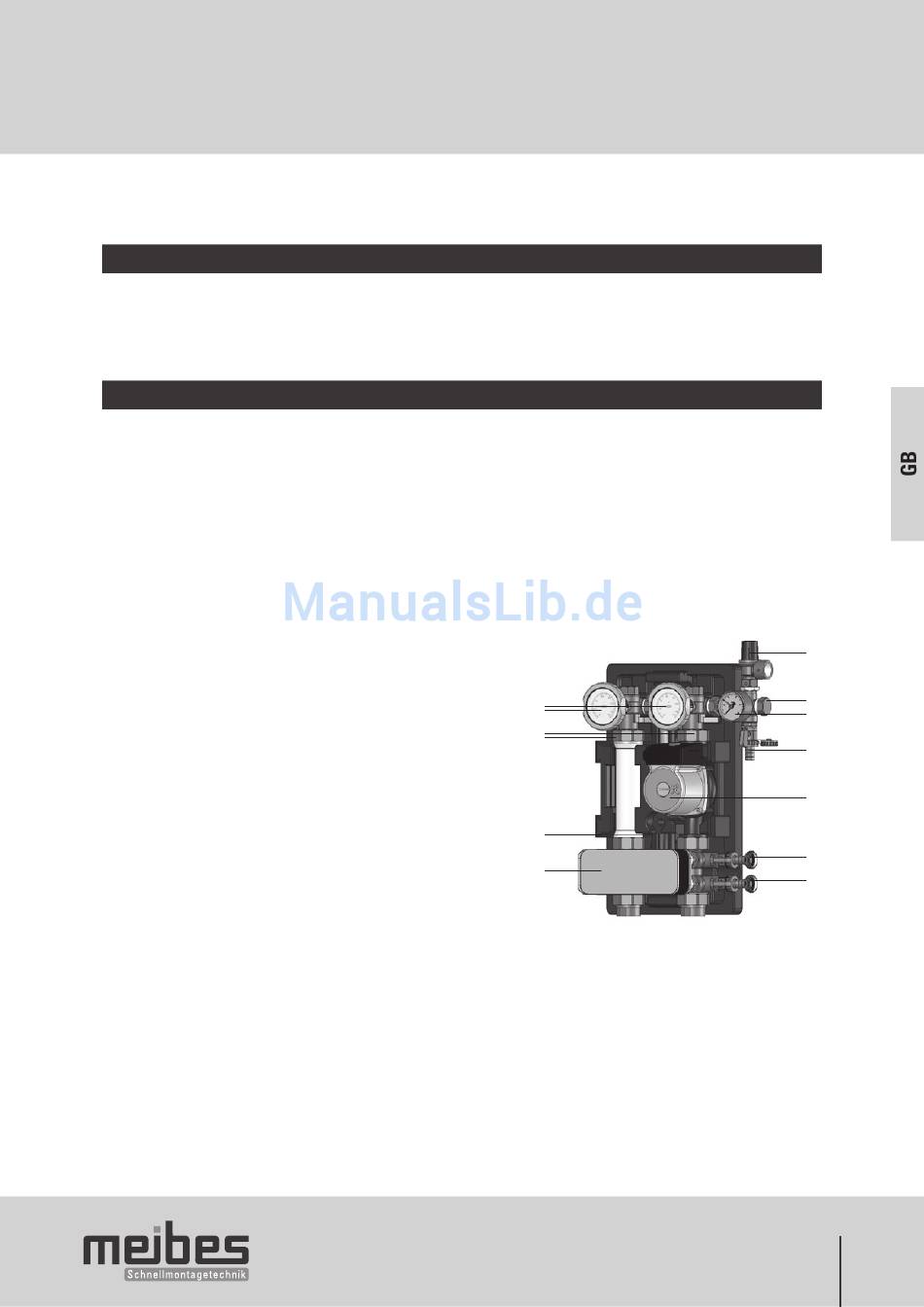

The solar transfer station is supplied pre-assembled as a 2-line version. Expansion vessels and accessories are not included in the scope of
delivery, and must be fitted in accordance with the individual system requirements.
1 Safety valve integrated into the safety assembly
2 ¾" ext. thread connection for an expansion vessel
3 Manometer
4 KFE valve with cap and hose sleeve
5 Solar circulating pump
6 KFE valve with cap and hose sleeve (primary)
7 KFE valve with cap and hose sleeve (secondary)
8 Thermometer
9 Shut-off ball valves ¾" int. thread x 1 ½" int. thread
union nut with integral non-return valve (manual setup)
10 Block insulation
11 Compact heat-exchanger (optionally with 16, 20 or 26 plates)
collector surface. (Depending on type and prevailing/existing system
2
8
9
10
11
1
2
3
4
5
6
7
14
