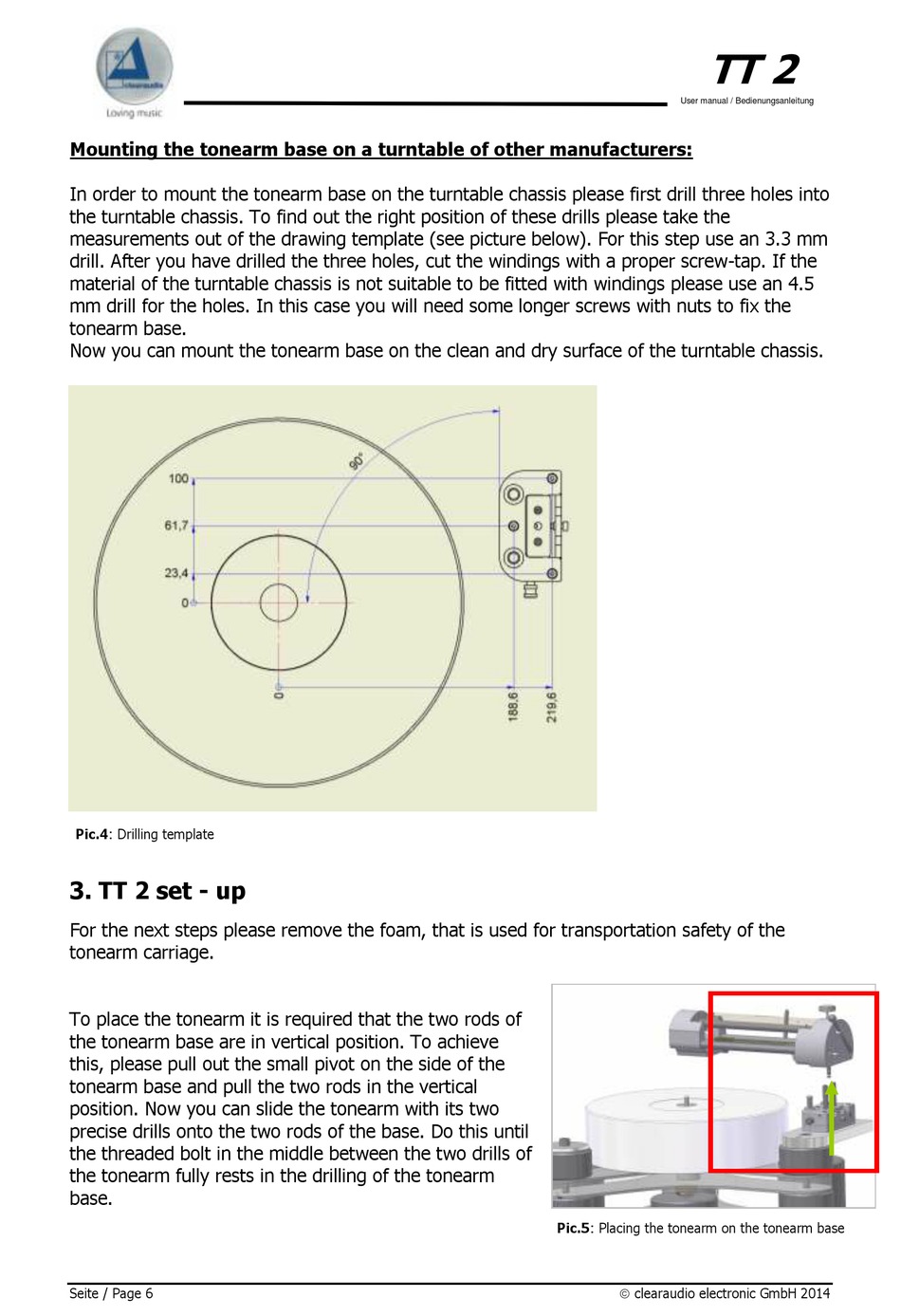

TT 2
User manual / Bedienungsanleitung
Mounting the tonearm base on a turntable of other manufacturers:
In order to mount the tonearm base on the turntable chassis please first drill three holes into
the turntable chassis. To find out the right position of these drills please take the
measurements out of the drawing template (see picture below). For this step use an 3.3 mm
drill. After you have drilled the three holes, cut the windings with a proper screw-tap. If the
material of the turntable chassis is not suitable to be fitted with windings please use an 4.5
mm drill for the holes. In this case you will need some longer screws with nuts to fix the
tonearm base.
Now you can mount the tonearm base on the clean and dry surface of the turntable chassis.
Pic.4: Drilling template

3. TT 2 set - up

For the next steps please remove the foam, that is used for transportation safety of the
tonearm carriage.
To place the tonearm it is required that the two rods of
the tonearm base are in vertical position. To achieve
this, please pull out the small pivot on the side of the
tonearm base and pull the two rods in the vertical
position. Now you can slide the tonearm with its two
precise drills onto the two rods of the base. Do this until
the threaded bolt in the middle between the two drills of
the tonearm fully rests in the drilling of the tonearm
base.
Pic.5: Placing the tonearm on the tonearm base
Seite / Page 6  clearaudio electronic GmbH 2014
