User manual / Bedienungsanleitung

3. Set-up

concept
Setting up the
assembled and all key parameters have been pre-adjusted and tested at the
concept
The turntable needs a set-up space of at least 17 x 14 inches.
3.1
concept
First take the
package and place it on a suitable surface.
Then remove the drive belt from the plastic bag.
3.2
Place the drive belt around the sub-platter and
around the motor pulley.
3.3
Take the platter out of the package and carefully
place it with both hands onto the shaft.
Make sure that the hollowed side faces down towards
the sub-platter.
3.4
Carefully remove the adhesive security tape and
other security materials from the tonearm and the
cartridge.
Made in Germany
turntable is easy. The turntable chassis, tonearm and cartridge are already
turntable chassis out of the
Clearaudio

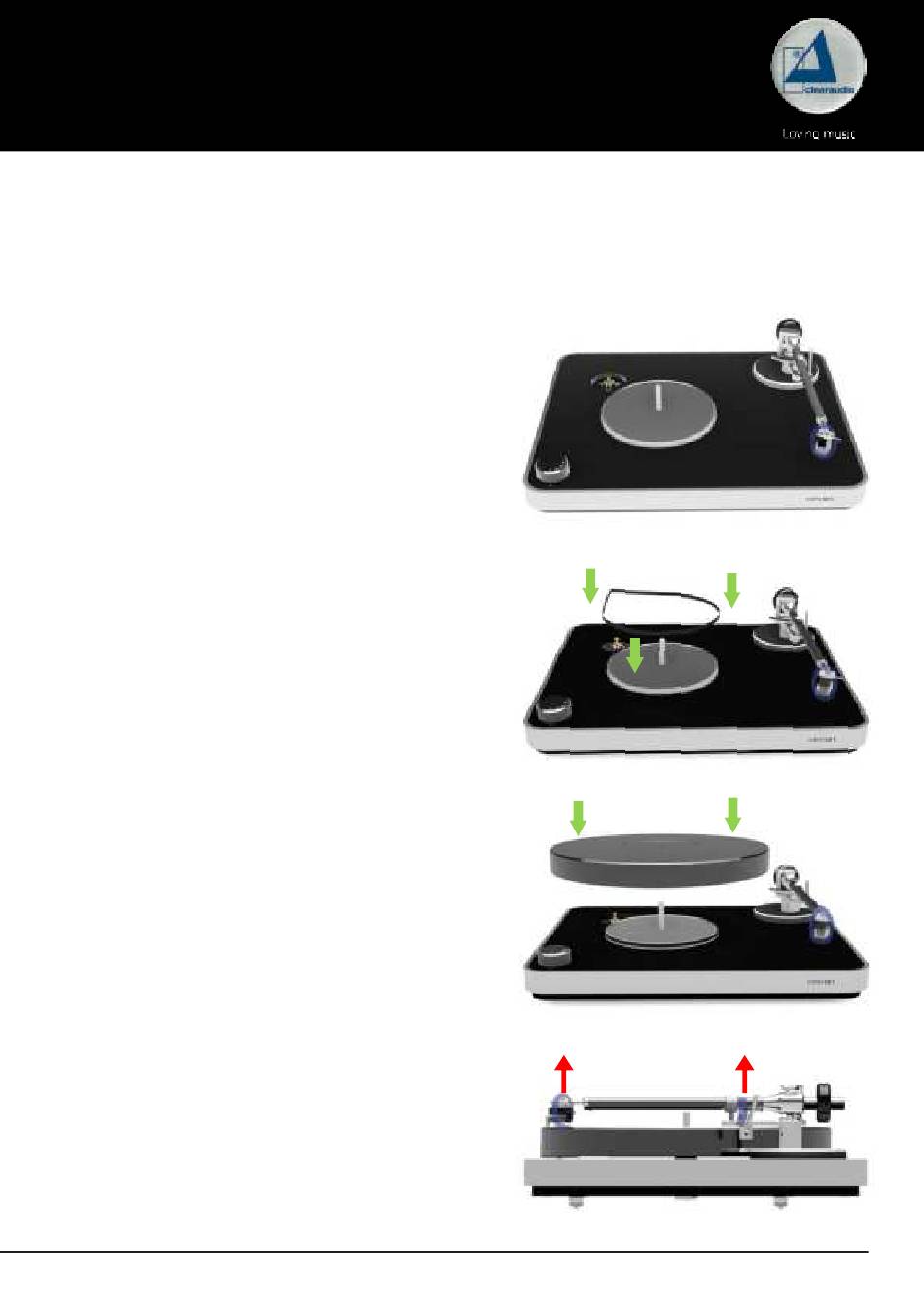

Pic. 2:
Placing the turntable
Pic. 3:
Mounting the drive belt
Pic. 4:
Placing the platter
Pic. 5:
Removing the adhesive security tape
factory.
