3. Installation and set up

Emotion Start Smart
The
described under chapter 2 (Scope of supply). The set up and installation is done
quickly and very easy. Please use the white gloves during this procedure, to avoid
scratches.
You should consider a safe and clean working area for the installation, in spite, as
near as possible to the final position of the
1.) First take out the motor and tonearm of the packing. Now you should take out
the first packing layer. After that you can take out the
body from the next packing layer. Place the turntable body on a on a clean underlay
so that the bearing hole is facing upside.
2.) In the accessory bag (placed in the top packing layer) you will find 3 aluminium
feet and 3 stainless steel threaded bolts. Screw the 3 bolts about 10 millimetre
inwards into the aluminium feet. Screw the 3 feet into the pre drilled holes of the
turntable body, while tightening them gently. Then take the turntable body and
place it on the area where the final position of your
Smart
turntable will be.

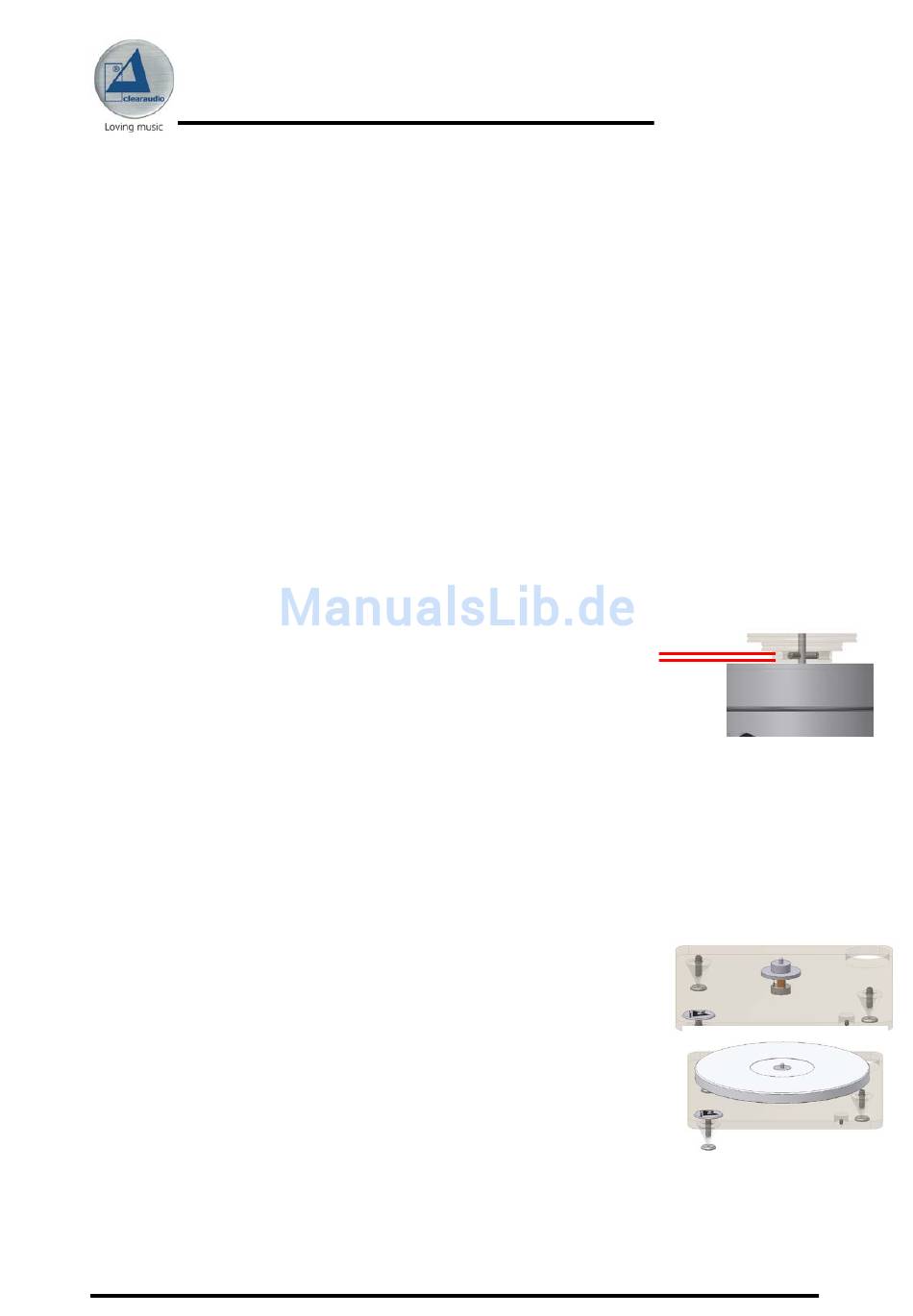

3.) Now take the motor-pulley out of the accessory bag
and shift the motor pulley as far as on the motors shaft until you have
a distance of approximately 1 mm between the upper edge of the
motor and the lower edge of the pulley. Now screw the three screws in
the pulley one
after the other with the precision screw driver.
4.) Lift the turntable chassis and slide it over the motor unit through the motor-
position hole in the turntable body so that the rubber-o- ring around the housing of
the motor is fixing the final position. Please pay attention, that the switch of the
motor is outside on the left side of the record player body.
Tip: You have also the possibility to take off the rubber-o-ring
of the motor's housing to centre the motor in the motor-
position hole without any contact to the turntable chassis !
This way you can use your
perfectly decoupled from the motor.
5.) Now you can connect the power cord to your power outlet.
On the bottom packing layer you will find the turntable platter.
Please take the platter with both hands and place it on the bearing
upper part. Through a lightly up and down movement the platter
will slip onto the bearing upper part.
Make sure with a gently pressure that the platter is applying on
the complete surface of the bearing.
Page / Seite 6
-turntable comes in several pre mounted parts, as
Emotion Start Smart
Emotion Start Smart
Emotion
User manual / Bedienungsanleitung
turntable.
Emotion Start Smart
Emotion Start
1 mm
turntable
Picture 3+4: Placing the platter on
 clearaudio electronic GmbH 2008
turntable
Picture 2: Mounting the pulley
the bearing upper part
