Position of necessary mounting holes
1 3,0 0
60,0

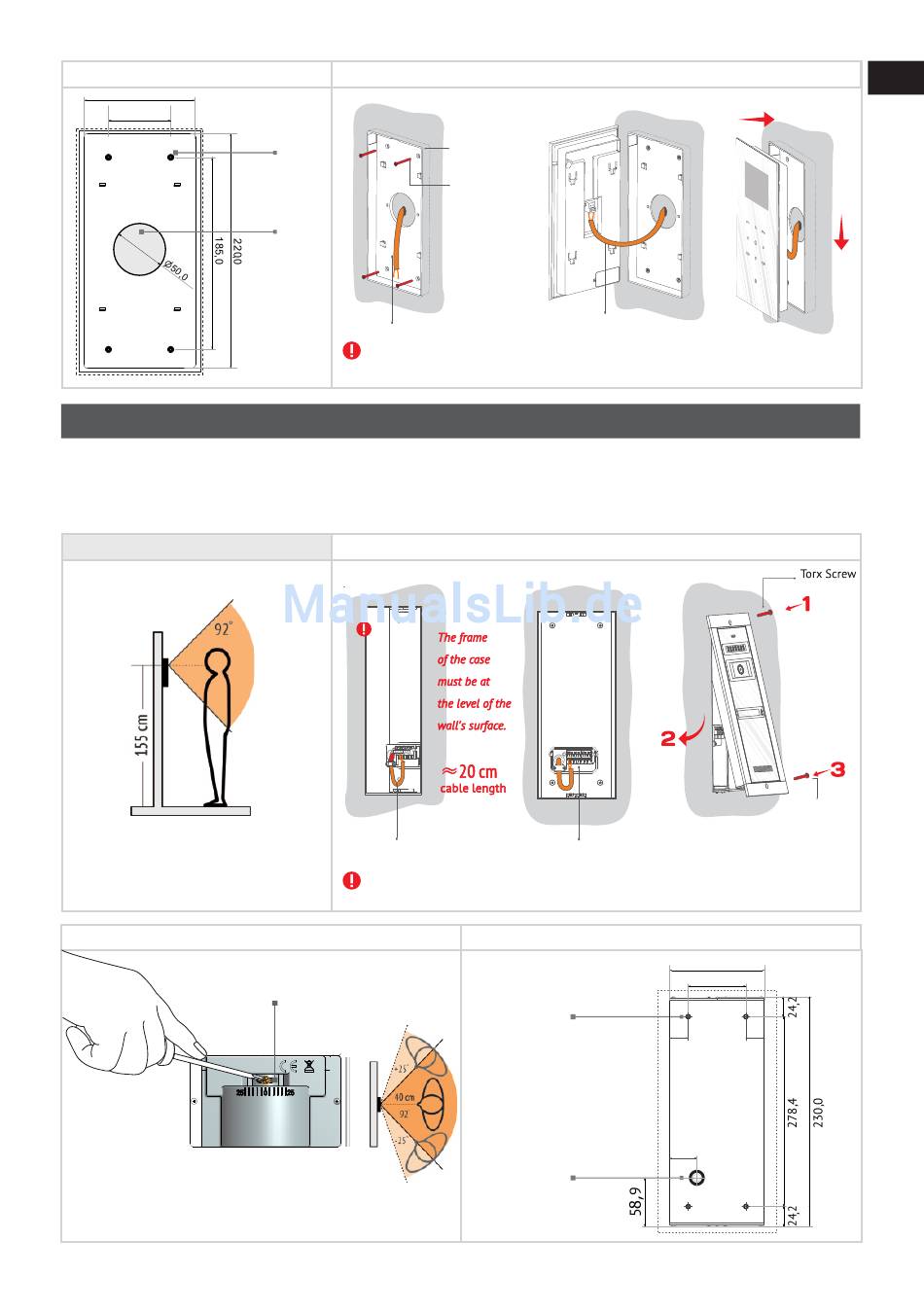

4.5 Installation of the Outdoor panel
The Outdoor panel is installed at the entrance of the property or building, on the body closest
to the access door, at a height of approx. 1.7 m (upper part) from the ground, protected from
rain and sun rays.
Before starting...
The Outdoor panel is installed at the
entrance to the building, on the body
closest to the entrance door.
Detail of camera adjustment
Use a screwdriver to loosen the screw and then adjust
the angle of the camera, then fix the screw.
fixing
screw
hole
cable
hole
Frontal view
It is necessary to make, in advance, a hole in the wall of W = 103mm, L= 220mm,
of the back lid
D = 20mm.
of the terminal
Door phone cable
It is necessary to make, in advance, a hole in the wall of W = 115mm, L= 280mm,
D = 50mm.
2,5 x 8 mm screw
Flush mounting
Mounting
depth
= 2 cm
A3,5 × 35(32)
Screw
(4 pcs.)
≈20 cm
Cable
lenght
(from the wall)
Door phone cable
Flush mounting
Main connection hub
Position of necessary mounting holes
fixing
screw
hole
cable
hole
Frontal view
of the back lid
1
2
Torx Screw with
antitheft protection
(see page 08
Antitheft protection)
115,0
70,0
22,5 22,5
3 3 ,0
