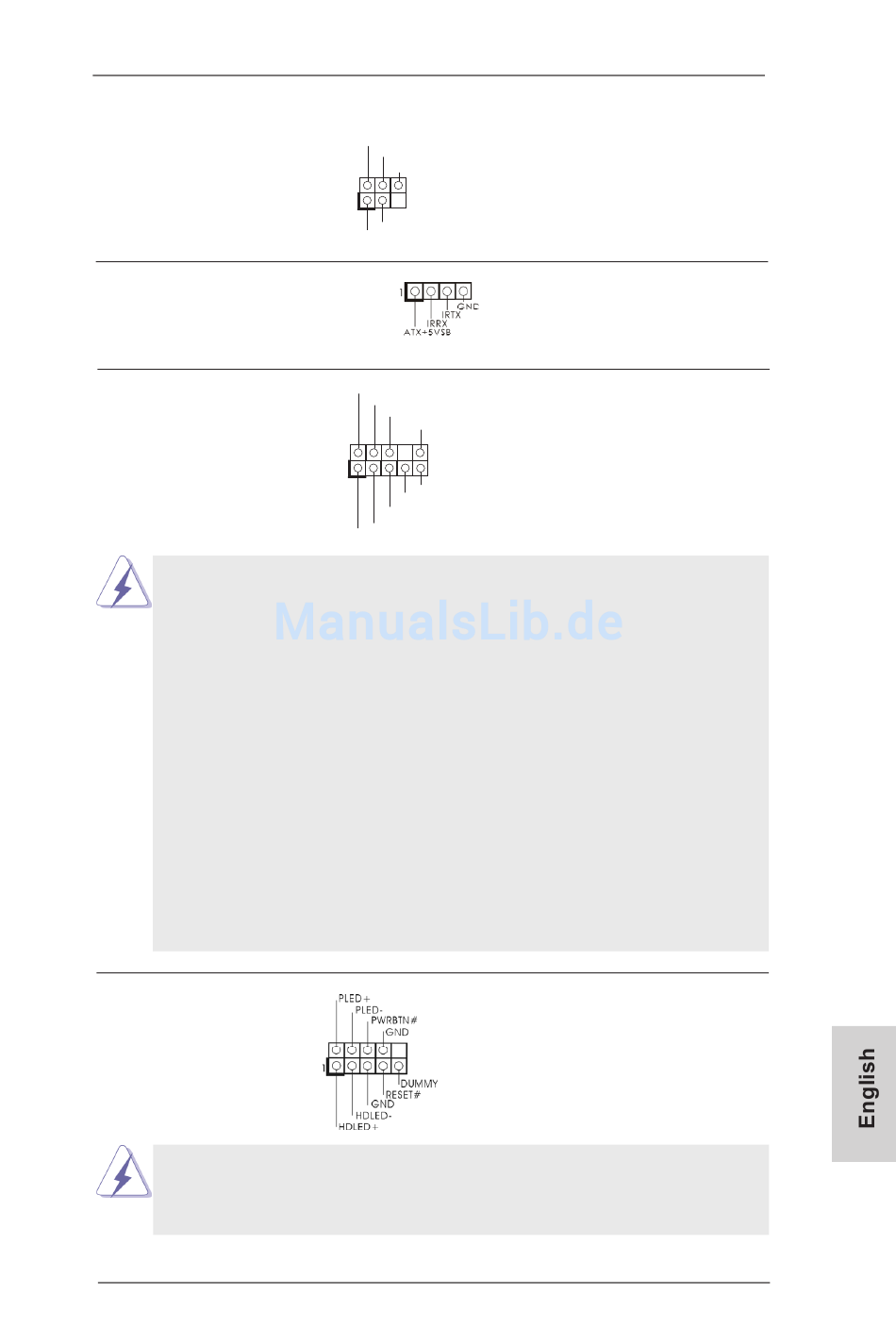

This Header Supports An Optional Wireless Transmitting - ASROCK 970 Pro3 R2.0 Bedienungsanleitung

Infrared Module Header
(5-pin IR1)
(see p.2 No. 27)
Consumer Infrared Module Header
(4-pin CIR1)
(see p.2 No. 24)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.2 No. 30)
1. High Definition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC'97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don't
need to connect them for AC'97 audio panel.
E. To activate the front mic.
For Windows
Select "Mixer". Select "Recorder". Then click "FrontMic".
For Windows
Go to the "FrontMic" Tab in the Realtek Control panel. Adjust
"Recording Volume".
System Panel Header
(9-pin PANEL1)
(see p.2 No. 22)
Connect the power switch, reset switch and system status indicator
on the chassis to this header according to the pin assignments below.
Note the positive and negative pins before connecting the cables.
IRTX
+5VSB
DUMMY
1
GND
IRRX
GND
PRESENCE#
MIC_RET
OUT_RET
1
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
®
XP / XP 64-bit OS:
®
8 / 8 64-bit / 7 / 7 64-bit / Vista
ASRock 970 Pro3 R2.0 Motherboard
This header supports an
optional wireless transmitting
and receiving infrared module.
This header can be used to
connect the remote
controller receiver.
This is an interface for the front
panel audio cable that allows
convenient connection and
control of audio devices.
TM TM
/ Vista 64-bit OS:
This header accommodates
several system front panel
functions.
