EX
➀

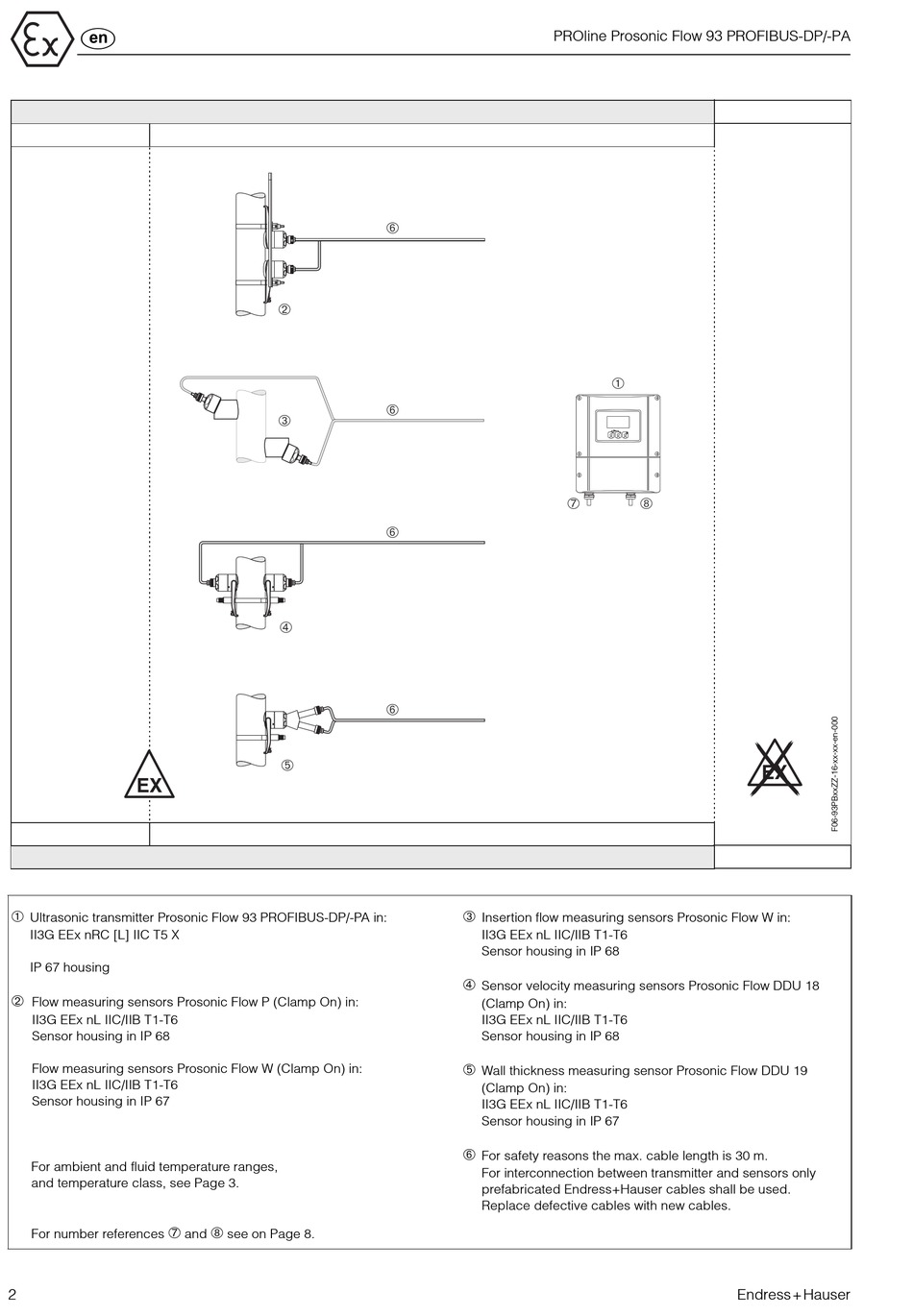

Ultrasonic transmitter Prosonic Flow 93 PROFIBUS-DP/-PA in:
II3G EEx nRC [L] IIC T5 X
IP 67 housing
➁
Flow measuring sensors Prosonic Flow P (Clamp On) in:
II3G EEx nL IIC/IIB T1-T6
Sensor housing in IP 68
Flow measuring sensors Prosonic Flow W (Clamp On) in:
II3G EEx nL IIC/IIB T1-T6
Sensor housing in IP 67
For ambient and fluid temperature ranges,
and temperature class, see Page 3.
➆
For number references
2
➁
➂
➃
➄
➇
and see on Page 8.
PROline Prosonic Flow 93 PROFIBUS-DP/-PA
➅
➅
➅
➅
➂
Insertion flow measuring sensors Prosonic Flow W in:
II3G EEx nL IIC/IIB T1-T6
Sensor housing in IP 68
➃
Sensor velocity measuring sensors Prosonic Flow DDU 18
(Clamp On) in:
II3G EEx nL IIC/IIB T1-T6
Sensor housing in IP 68
➄
Wall thickness measuring sensor Prosonic Flow DDU 19
(Clamp On) in:
II3G EEx nL IIC/IIB T1-T6
Sensor housing in IP 67
➅
For safety reasons the max. cable length is 30 m.
For interconnection between transmitter and sensors only
prefabricated Endress+Hauser cables shall be used.
Replace defective cables with new cables.
➀
Esc
-
+ E
➆ ➇
