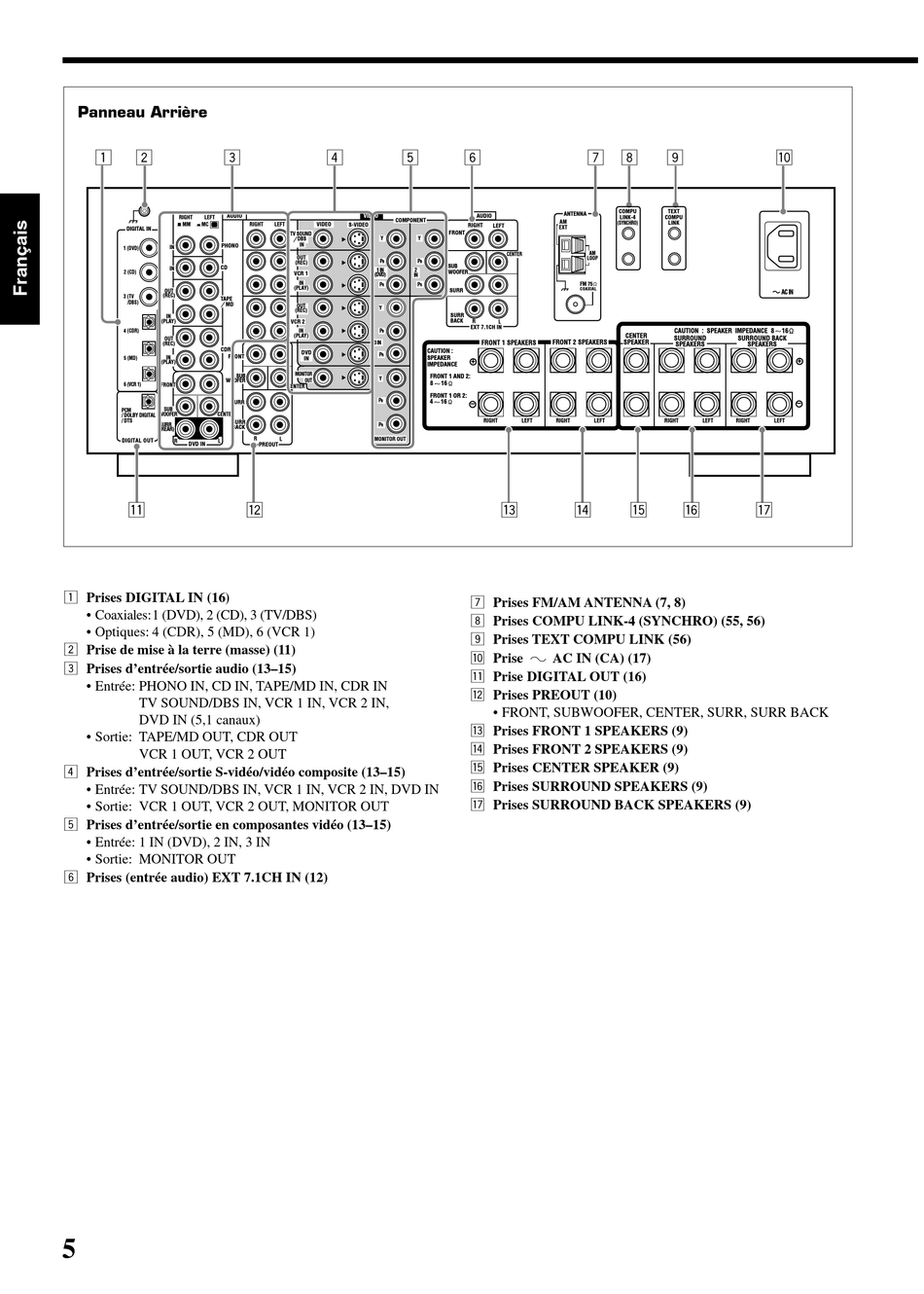

Panneau Arrière
1 2 3
AUDIO
RIGHT LEFT
MM MC
DIGITAL IN
PHONO
IN
1 (DVD)
CD
IN
2 (CD)
OUT
(REC)
3 (TV
TAPE
/DBS)
MD
IN
(PLAY)
4 (CDR)
OUT
(REC)
CDR
FRONT
IN
5 (MD)
(PLAY)
SUB
WOOFER
6 (VCR 1)
FRONT
SURR
SUB
PCM
WOOFER CENTER
/ DOLBY DIGITAL
/ DTS
SURR
SURR
BACK
(REAR)
DIGITAL OUT R L
DVD IN
q
1 Prises DIGITAL IN (16)
• Coaxiales:1 (DVD), 2 (CD), 3 (TV/DBS)
• Optiques: 4 (CDR), 5 (MD), 6 (VCR 1)
2 Prise de mise à la terre (masse) (11)
3 Prises d'entrée/sortie audio (13–15)
• Entrée: PHONO IN, CD IN, TAPE/MD IN, CDR IN
TV SOUND/DBS IN, VCR 1 IN, VCR 2 IN,
DVD IN (5,1 canaux)
• Sortie: TAPE/MD OUT, CDR OUT
VCR 1 OUT, VCR 2 OUT
4 Prises d'entrée/sortie S-vidéo/vidéo composite (13–15)
• Entrée: TV SOUND/DBS IN, VCR 1 IN, VCR 2 IN, DVD IN
• Sortie: VCR 1 OUT, VCR 2 OUT, MONITOR OUT
5 Prises d'entrée/sortie en composantes vidéo (13–15)
• Entrée: 1 IN (DVD), 2 IN, 3 IN
• Sortie: MONITOR OUT
6 Prises (entrée audio) EXT 7.1CH IN (12)
5
4 5
VIDEO
COMPONENT
RIGHT LEFT VIDEO S-VIDEO
TV SOUND
DBS Y Y
IN
OUT
P P
(REC) B B
1 IN 2
VCR 1
(DVD) IN
IN
P
P
R R
(PLAY)
OUT
Y
(REC)
VCR 2
IN P
B
(PLAY)
3 IN
DVD
P
R
IN
MONITOR
Y
OUT
CENTER
P
B
P
R
R L MONITOR OUT
PREOUT
w
6 7 8
ANTENNA
AUDIO
AM
RIGHT LEFT
EXT
FRONT
AM
CENTER
LOOP
SUB
WOOFER
FM 75
COAXIAL
SURR
SURR
BACK R
L
EXT 7.1CH IN
FRONT 2 SPEAKERS
FRONT 1 SPEAKERS
CAUTION :
SPEAKER
+
IMPEDANCE
FRONT 1 AND 2:
8 16
FRONT 1 OR 2:
4 16
–
LEFT LEFT
RIGHT RIGHT
e r
7 Prises FM/AM ANTENNA (7, 8)
8 Prises COMPU LINK-4 (SYNCHRO) (55, 56)
9 Prises TEXT COMPU LINK (56)
p Prise
AC IN (CA) (17)
q Prise DIGITAL OUT (16)
w Prises PREOUT (10)
• FRONT, SUBWOOFER, CENTER, SURR, SURR BACK
e Prises FRONT 1 SPEAKERS (9)
r Prises FRONT 2 SPEAKERS (9)
t Prises CENTER SPEAKER (9)
y Prises SURROUND SPEAKERS (9)
u Prises SURROUND BACK SPEAKERS (9)
9 p
COMPU TEXT
LINK-4 COMPU
LINK
(SYNCHRO)
AC IN
CAUTION : SPEAKER IMPEDANCE 8 16
CENTER
SURROUND SURROUND BACK
SPEAKER
SPEAKERS SPEAKERS
LEFT LEFT
RIGHT RIGHT
t y u
+
–
