Menu Screen Flow

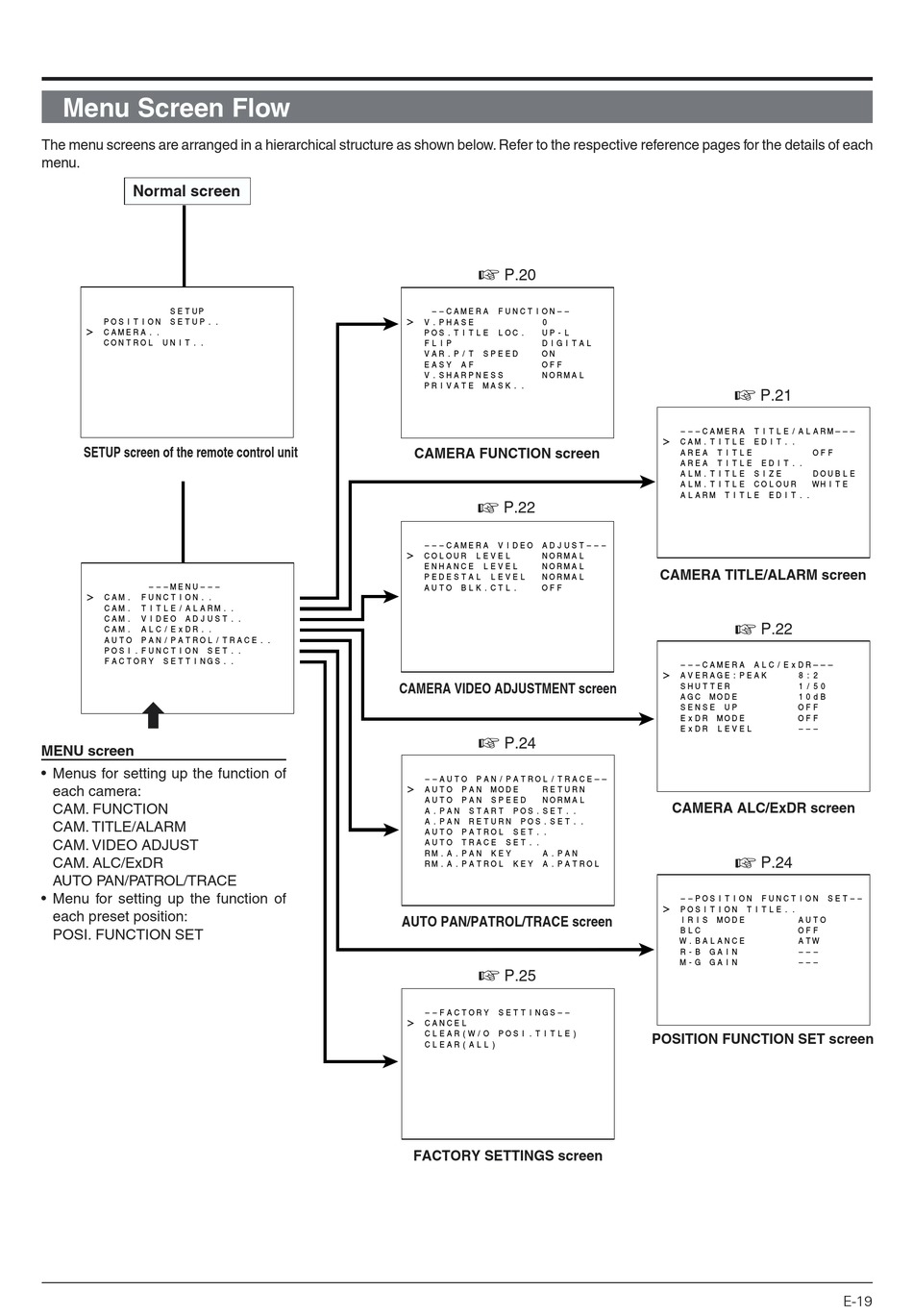

The menu screens are arranged in a hierarchical structure as shown below. Refer to the respective reference pages for the details of each
menu.
Normal screen
S E T U P
P O S I T I O N S E T U P . .
C A M E R A . .
C O N T R O L U N I T . .
SETUP screen of the remote control unit
– – – M E N U – – –
C A M . F U N C T I O N . .
C A M . T I T L E / A L A R M . .
C A M . V I D E O A D J U S T . .
C A M . A L C / E x D R . .
A U T O P A N / P A T R O L / T R A C E . .
P O S I . F U N C T I O N S E T . .
F A C T O R Y S E T T I N G S . .
c
MENU screen
• Menus for setting up the function of
each camera:
CAM. FUNCTION
CAM. TITLE/ALARM
CAM. VIDEO ADJUST
CAM. ALC/ExDR
AUTO PAN/PATROL/TRACE
• Menu for setting up the function of
each preset position:
POSI. FUNCTION SET
☞
P.20
– – C A M E R A F U N C T I O N – –
V . P H A S E 0
P O S . T I T L E L O C . U P - L
F L I P D I G I T A L
V A R . P / T S P E E D O N
E A S Y A F O F F
V . S H A R P N E S S N O R M A L
P R I V A T E M A S K . .
CAMERA FUNCTION screen
☞
P.22
– – – C A M E R A V I D E O A D J U S T – – –
C O L O U R L E V E L N O R M A L
E N H A N C E L E V E L N O R M A L
P E D E S T A L L E V E L N O R M A L
A U T O B L K . C T L . O F F
CAMERA VIDEO ADJUSTMENT screen
☞
P.24
– – A U T O P A N / P A T R O L / T R A C E – –
A U T O P A N M O D E R E T U R N
A U T O P A N S P E E D N O R M A L
A . P A N S T A R T P O S . S E T . .
A . P A N R E T U R N P O S . S E T . .
A U T O P A T R O L S E T . .
A U T O T R A C E S E T . .
R M . A . P A N K E Y A . P A N
R M . A . P A T R O L K E Y A . P A T R O L
AUTO PAN/PATROL/TRACE screen
☞
P.25
– – F A C T O R Y S E T T I N G S – –
C A N C E L
C L E A R ( W / O P O S I . T I T L E )
C L E A R ( A L L )
FACTORY SETTINGS screen
☞
P.21
– – – C A M E R A T I T L E / A L A R M – – –
C A M . T I T L E E D I T . .
A R E A T I T L E O F F
A R E A T I T L E E D I T . .
A L M . T I T L E S I Z E D O U B L E
A L M . T I T L E C O L O U R W H I T E
A L A R M T I T L E E D I T . .
CAMERA TITLE/ALARM screen
☞
P.22
– – – C A M E R A A L C / E x D R – – –
A V E R A G E : P E A K 8 : 2
S H U T T E R 1 / 5 0
A G C M O D E 1 0 d B
S E N S E U P O F F
E x D R M O D E O F F
E x D R L E V E L – – –
CAMERA ALC/ExDR screen
☞
P.24
– – P O S I T I O N F U N C T I O N
P O S I T I O N T I T L E . .
I R I S M O D E A U T O
B L C O F F
W . B A L A N C E A T W
R - B G A I N – – –
M - G G A I N – – –
POSITION FUNCTION SET screen
S E T – –
E-19
