Control Unit Mixer (V:tail, Rudder_Elevator-Mix) - ModelCraft 23 36 14 Bedienungsanleitung

V Control unit mixer (V:TAIL, RUDDER_ELEVATOR-MIX)
The transmitter enables the control of gliders and motor planes with V control unit
mixers. Both rudder flaps are used as rudder and elevator. Two servos and receiver
channels (1+4) are necessary for the V control unit.
To program the „V-Tail"-Function press „CH+" or „CH-" button to set „etc".
Press „FUNCTION- "-button, to get to the „V-Tail" menu.
Now press the „INC+/YES" button. The following monitor shows that the „V-TAIL"func-
tion is active. The pressing of „INC+/YES" or „DEC-/NO" switches functions between the
„INH" (locked/inhibit) and „ACT"(active) position. With the function „EPA" you can now
set the end positioning deflections. To adjust the position sensitively, leave the functions
rudder and elevator servo reverse and „EPA" (end deflection).
If desired, the function can also be combined with the „AL>RU" mixer, whereby the rudder
of the control unit also reacts to the aileron joystick (see the previous section).
162

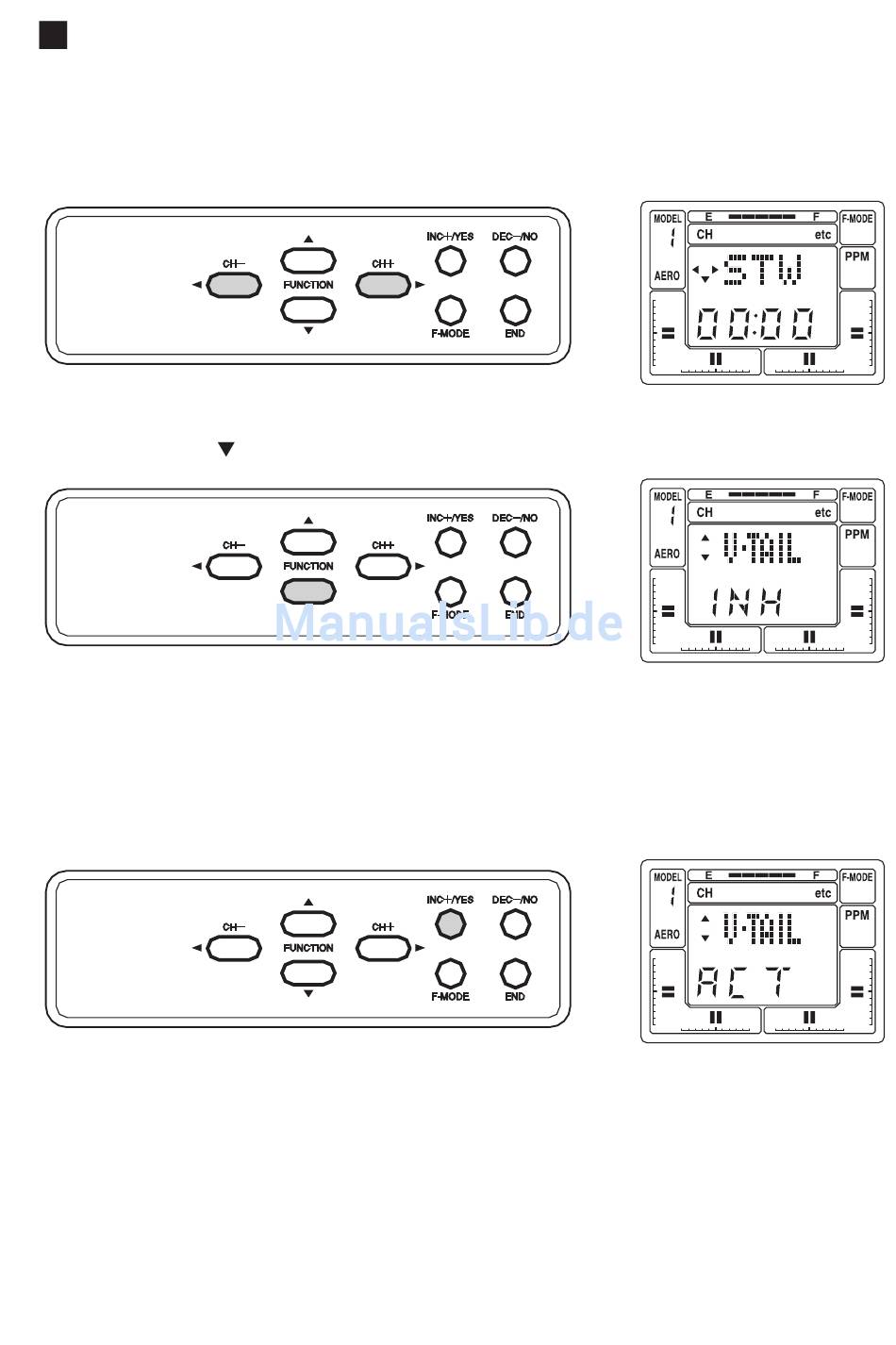

Figure 79
Figure 80
Figure 81
