Isotherm-Alert
Sets the alert temperature for the isotherms.
Laser-Adjust
Adjusts the Laser point in the LCD displayer.

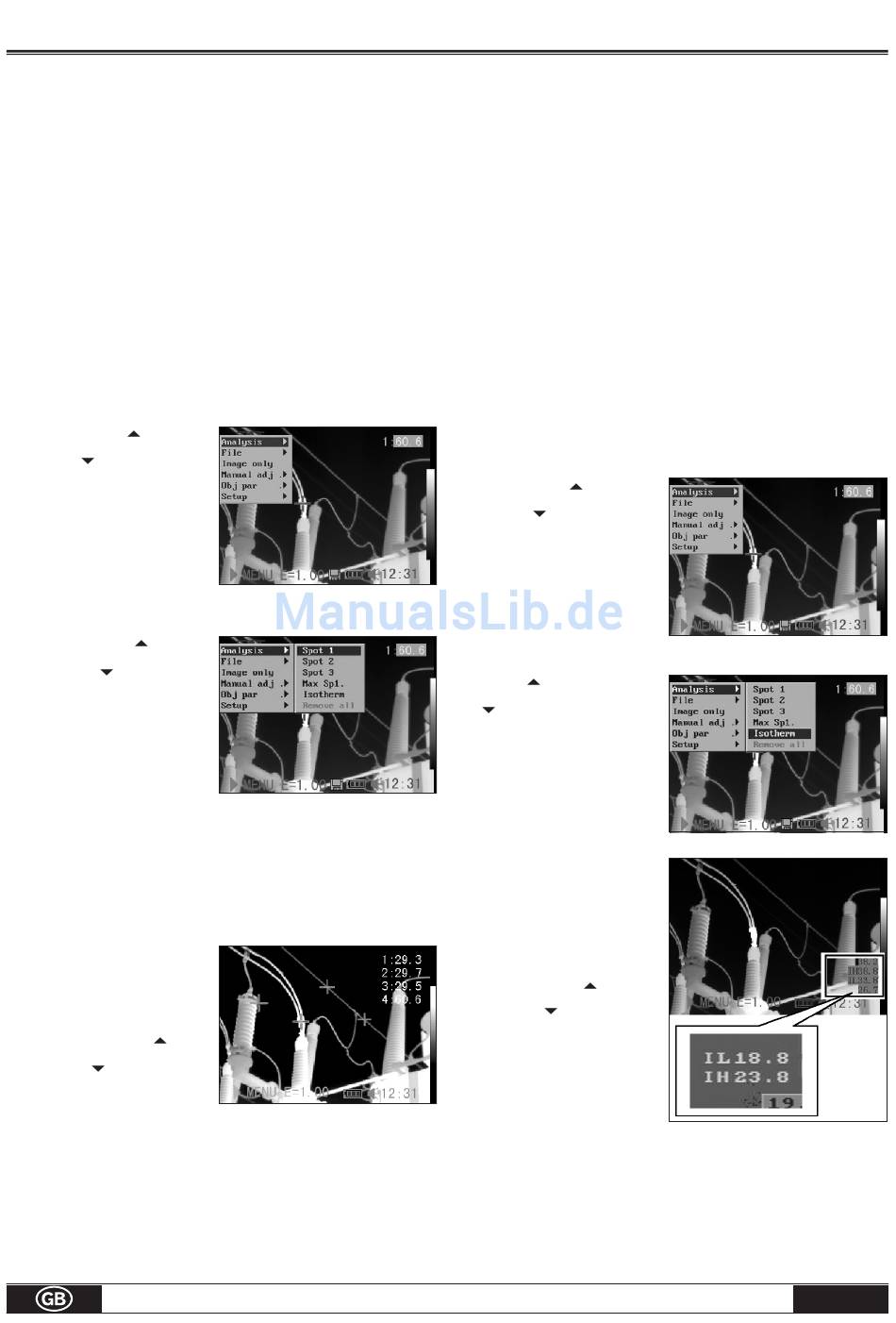

Spot analysis

This topic briefly explains how to set the analysis tools
on the thermal image.
1. Press the MENU/ENTER key.
2. Press the Up or
Down arrow on the
omni selector to select
the [Analysis] menu.
3. Setting the spot analysis
• Press the Up or
Down arrow on
the omni selector to
select a spot, then
press MENU/ENTER
Key. One or more
crosshair will appear
on the screen.
• Spot 4 will automatically track the highest or
lowest spot on the screen.
4. Moving the analysis spot.
• Start from Step 1 to
set or select a spot
analysis.
• Press the
Down ,3 Left, Right
4 arrow
the omni selector to move the activated spot.
The Temperature
spot will modify automatically.
Up,
on
value of the
Operating manual – Infrared camera
Isotherm analysis
Select this camera function to Isothermal Analysis
Mode for the IR image in question. The measuring
object within a specific temperature range is then
displayed in the same striking colour. Because this
colour (green or red) does not fit into the colour spec-
trum for the thermography it immediately catches
the eye. Critical areas on the object can be checked
quickly and easily. The temperature range and the co-
lour of the isotherm depiction can be defined in the
setup menu.
1. Press the MENU/ENTER key.
2. Press the
Down
omni selector to select
the [Analysis] menu.
3. Press Up and Down
arrow to select [Iso-
therm], then press the
Menu/Enter key. Areas
of concern will be high-
lighted with color.
4. Set the isotherm range.
• Start from Step 1
to set or select iso-
therm analysis.
• Press the Up or
Down arrow on the
omni selector to se-
lect an isotherm ran-
ge.
• IL and IH will
current
appear at the bottom right corner. It is the high
limit (IH) and low limit (IL) of the isotherm range.
Up and
arrow on the
