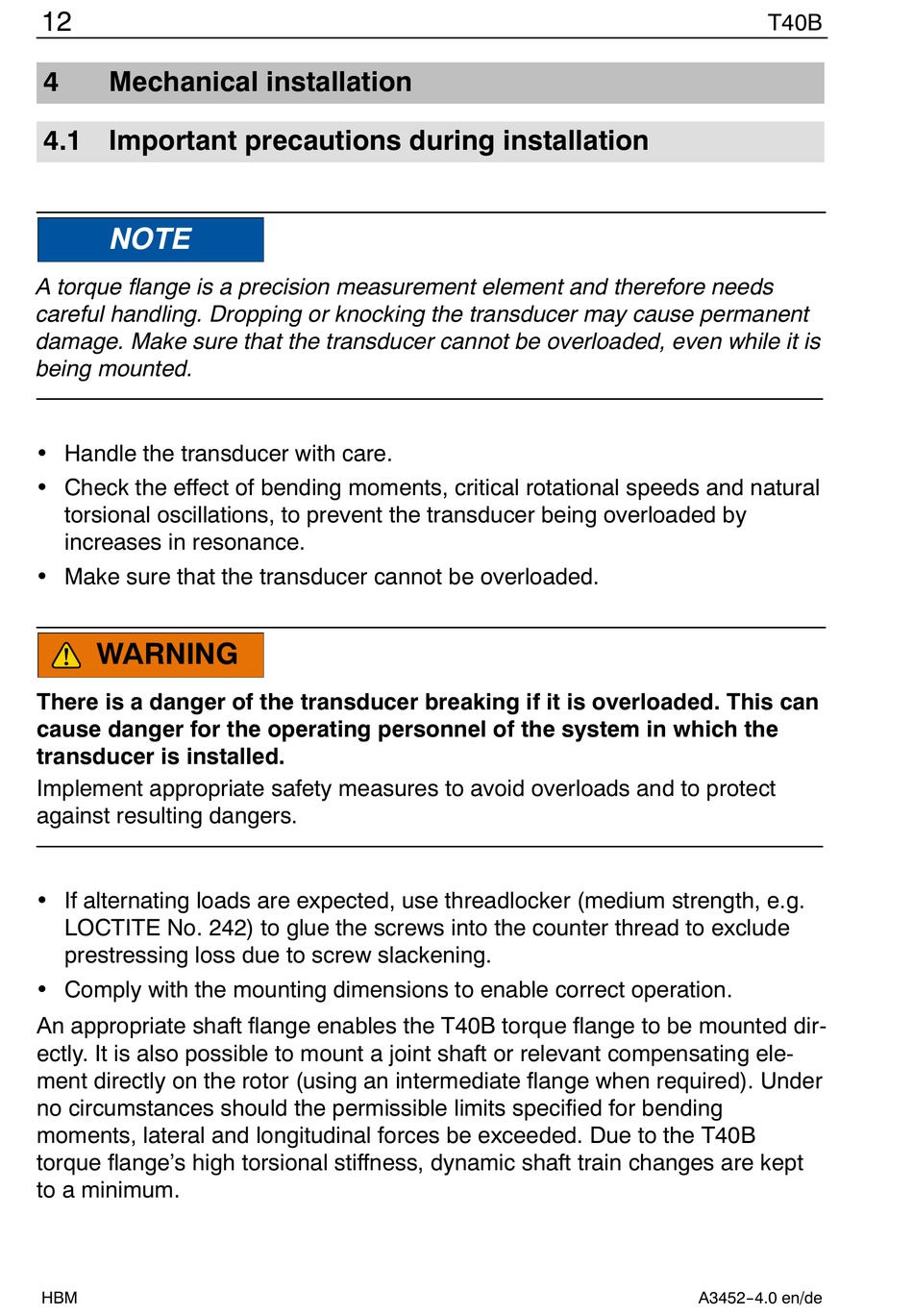

Mechanical installation

4.1 Important precautions during installation

NOTE
A torque flange is a precision measurement element and therefore needs
careful handling. Dropping or knocking the transducer may cause permanent
damage. Make sure that the transducer cannot be overloaded, even while it is
being mounted.
 Handle the transducer with care.
 Check the effect of bending moments, critical rotational speeds and natural
torsional oscillations, to prevent the transducer being overloaded by
increases in resonance.
 Make sure that the transducer cannot be overloaded.
WARNING
There is a danger of the transducer breaking if it is overloaded. This can
cause danger for the operating personnel of the system in which the
transducer is installed.
Implement appropriate safety measures to avoid overloads and to protect
against resulting dangers.
 If alternating loads are expected, use threadlocker (medium strength, e.g.
LOCTITE No. 242) to glue the screws into the counter thread to exclude
prestressing loss due to screw slackening.
 Comply with the mounting dimensions to enable correct operation.
An appropriate shaft flange enables the T40B torque flange to be mounted dir­
ectly. It is also possible to mount a joint shaft or relevant compensating ele­
ment directly on the rotor (using an intermediate flange when required). Under
no circumstances should the permissible limits specified for bending
moments, lateral and longitudinal forces be exceeded. Due to the T40B
torque flange's high torsional stiffness, dynamic shaft train changes are kept
to a minimum.
