Backup Battery
The backup battery 37 serves to supply emergency
power to the access point.
Activate the backup battery (see Mounting > Con-
nections of the EXAConnecT > Terminal Program
Settings) in order to prevent any data loss at the
EXAConnecT access point.
When the backup battery 37 loses power, there ap-
pears in the display 1 of the EXAConnecT the status
code EO (see Status Codes).
Replace the backup battery during operation, be-
cause, otherwise, there is a threat of data loss.

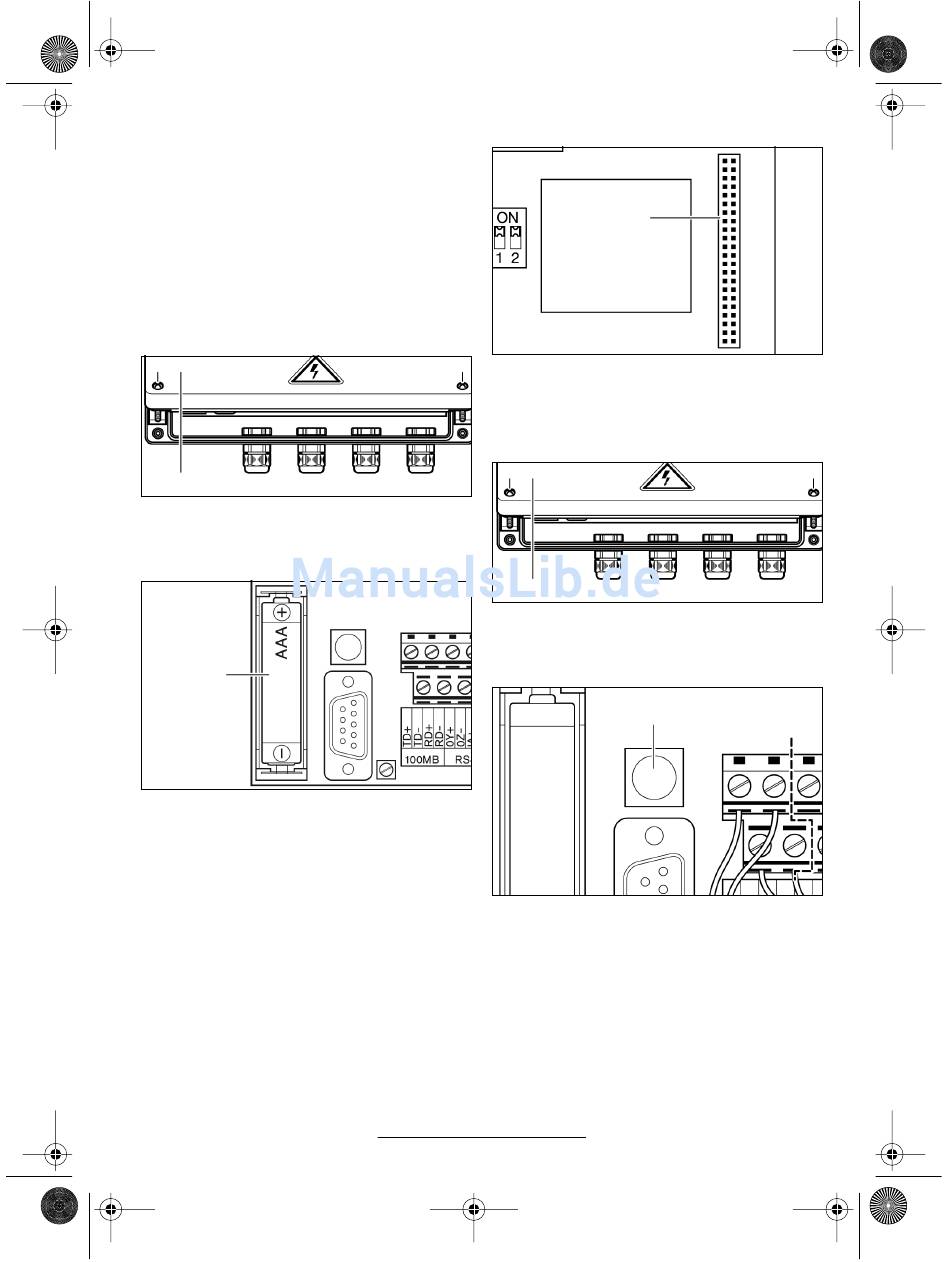

Replacing the Backup Battery
3
2
Remove the maintenance cover plate 2 on the volt-
age-free EXAConnecT by unscrewing the two small
bottom Phillips screws 3. You thus gain access to
the backup battery 37.
37
Remove the old battery 37 and insert a new standard
AAA microcell battery.
Take care that you insert the battery in the
proper orientation!
Fix the maintenance cover plate 2 back in place on
the tool housing of the EXAConnecT by tightening
the two small bottom Phillips screws 3.
3 609 929 A58 • (05.09) T
Bus Slot
3
The bus slot 38 offers the possibility of connecting
additional hardware cards (e.g., a graphics card).
Such cards are available as accessories.
Reset Button
3
2
Remove the maintenance cover plate 2 on the volt-
age-free EXAConnecT by unscrewing the two small
bottom Phillips screws 3. You thus gain access to
the reset button 39.
The reset button 39 has a two-step operation.
Restart:
Press down the reset button 39 only briefly (re-
boot).
Reset:
For this function, all data is deleted and is
lost!
Press down the reset button 39 for longer than
three seconds.
The settings of the EXAConnecT access point are re-
set to the state on delivery (factory settings). There
then appears in the display 1 "--".
English–18
38
3
39
