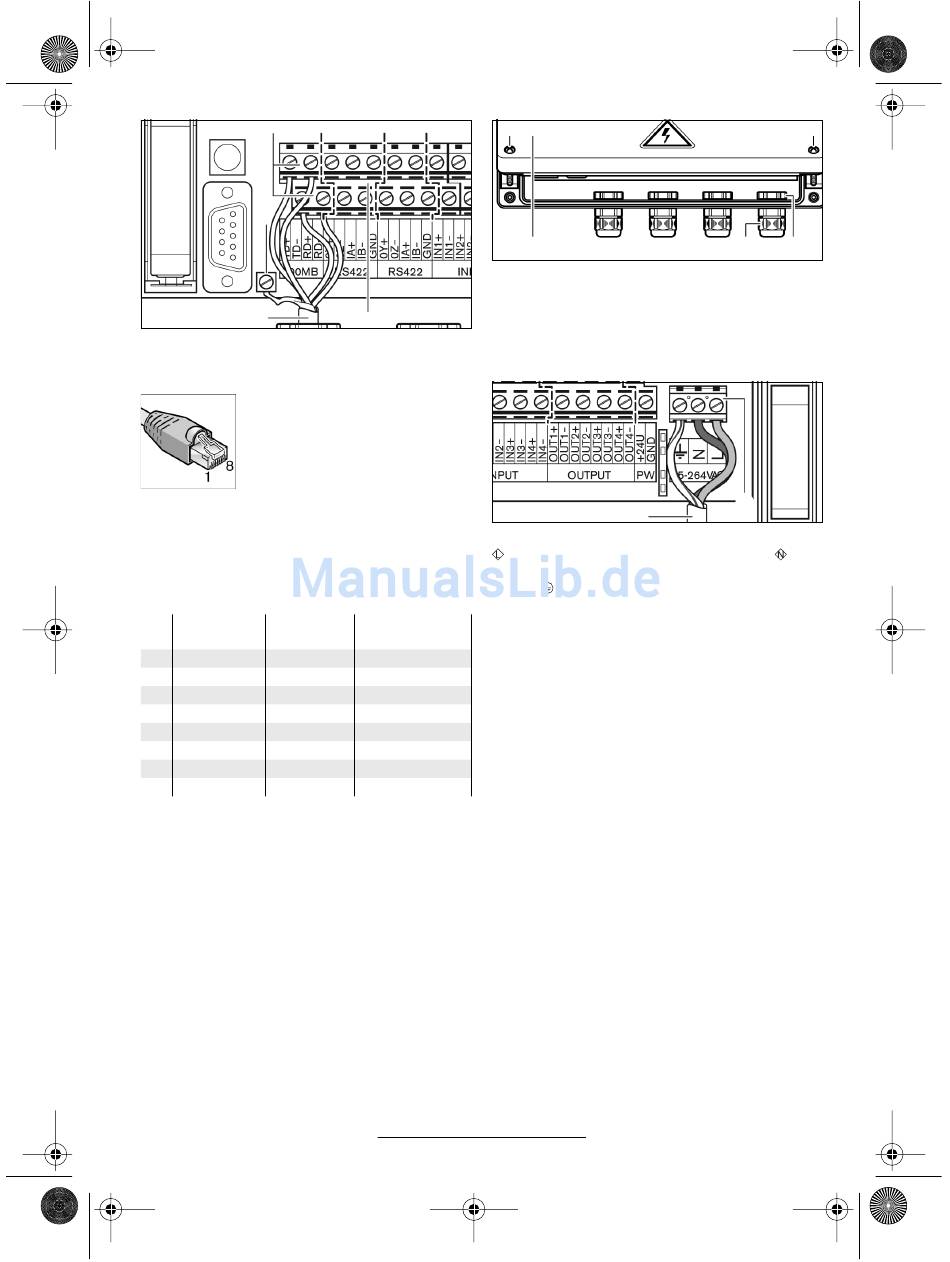

Cut off one plug on the twisted pair cable 18 for Ether-
net networks. Pull the cable through the opening of the
left cable entrance slot 8 to the terminal strip 9.
On the remaining plug of the twisted
pair cable, determine which color
lies on which pin. Use the following
table to determine which leads you
need for the connection to the
EXAConnecT and insulate the leads
that are not needed. Connect the
remaining leads to the Ethernet connection 10 of the
terminal strip 9 in accordance with the table. Connect
the shielding of the twisted pair cable to the ground-
ing terminal 17.
Pin Assignment of the Ethernet Interface
Pin Color of the Crossover
leads, e.g., assignment
1 white/orange RD+
2 orange RD–
3 white/green TD+
4 blue
5 white/blue
6 green TD–
7 white/brown
8 brown
Use the crossover assignment for the network con-
nection directly to your PC and the 1:1 connection for
the connection to your firm network, server, or net-
work hub.
Check whether the cable is held firmly in place. Then
turn the sleeve 7 on the cable entrance slot 8 in the
clockwise direction tightly back in position.
Connection of EXAConnecT to the Power
Supply
The voltage and frequency of the power source must
agree with the values on the nameplate of the ma-
chine. In order to connect the EXAConnecT access
point to the power supply, you need a three-lead
mains cable 19.
Loosen the sleeve 7 on the right cable entrance slot
8 by turning it in the counterclockwise direction.
3 609 929 A58 • (05.09) T
3
2
Remove the maintenance cover plate 2 on the volt-
age-free EXAConnecT by unscrewing the two small
bottom Phillips screws 3. You thereby gain access to
9
the terminal strip 9.
Pull the three leads through the opening of the right
cable entrance slot 8 to the terminal strip 9.
Connect the phase lead (brown wire) to the symbol
, the neutral lead (blue wire) to the symbol
the grounding lead (green-yellow striped wire) to the
symbol
care that the EXAConnecT is grounded!
1:1 Connection
When you connect the EXAConnecT directly to the
to the network
mains supply (fixed connection), you need an addi-
tional switching element in order to disconnect the
TD+
tool from the current, if necessary. This on/off switch
TD–
should be accommodated in a readily accessible po-
RD+
sition in the vicinity of the EXAConnecT.
For a plug connection of the EXAConnecT, insert
the mains plug of the mains cable 19 into a mains
RD–
outlet near to the tool. Do not use an extension cord!
Network Connection of the EXAConnecT
System requirements of the PC
The operating system should be Microsoft
®
dows
In addition, you should use either Microsoft
net Explorer Version 5.0 or Version 6.0 or else Net-
®
scape
Web browser. For the Web browsers, Java™ Run-
time Environment (JRE) Version 1.4.0, Version
1.4.1, or Version 1.4.2 must be installed.
Microsoft
®
er are trademarks or registered trademarks of Microsoft
Corporation in the USA and in other countries.
Netscape
firm Netscape Communications Corporation, which, in the
meantime, has ceased to exist. The present commercial
owner is America Online (AOL).
Java™ is a trademark or registered trademark of Sun Mi-
crosystems Inc. in the USA and in other countries.
English–6
