27. RF Output Connector
3.2. Rear Panel Description
1

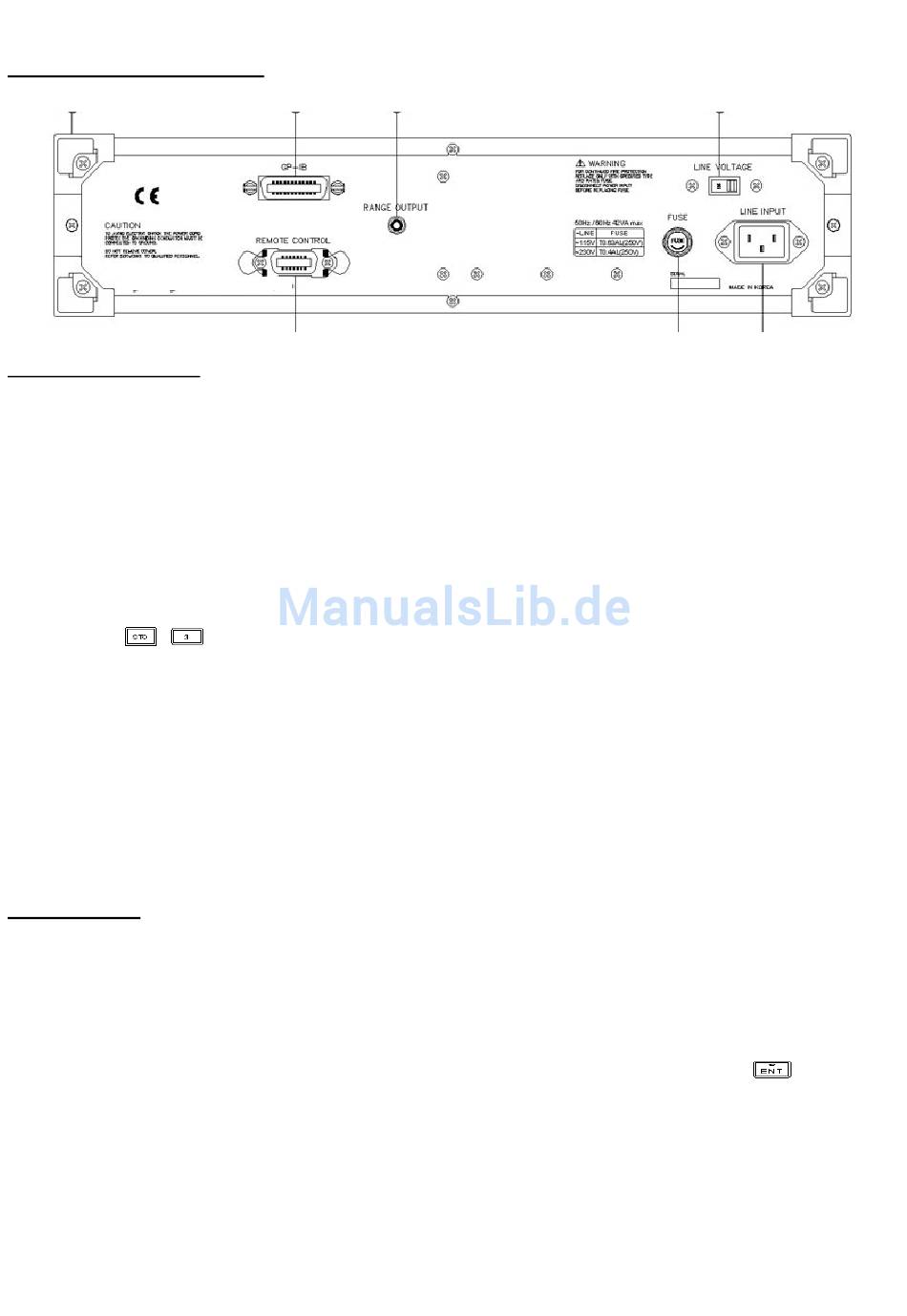

Fig 3.5 REAR PANEL
1. Cord Winder
2. GPIB Connector
3. Remote Control Connector
4. Range Output Jack
Outputs TTL compatible signal indicating whether the output frequency is greater than 35 MHz
or not. There are two versions.
Press ,
Then if 'Frequency Display' indicates 35...1, then the range signal is +5V for ( above 35 MHz ).
35...0, indicates that the range output is 0V for (above 35 MHz).
5. Line Voltage Selector
Refer to chapter 2. (electrical installation)
6. Fuse
7. AC Inlet
3.3. Operation
® 1100 has 3 numeric entry modes
PeakTech
1. Normal mode
Increase or decrease the current data value ( above cursor position ).
2. Direct numeric entry,
After selecting menu , use numeric keys to enter the desired data followed by
Menu
Numeric Keys
3. Memory Store/Recall mode.
After store the current instrument setting to a specific address and recall later. Unique
SEQUENTIAL RECALL mode available in this instrument can greatly simplify routine
measurement. ( ☞ 3.3.5.5)
2
3
;
: FREQ,LEVEL,ADDR,MOD
:1,2,3,4,5,6,7,8,9,0,.(decimal point), - ( minus )
4
-43-
5
6 7
key.
