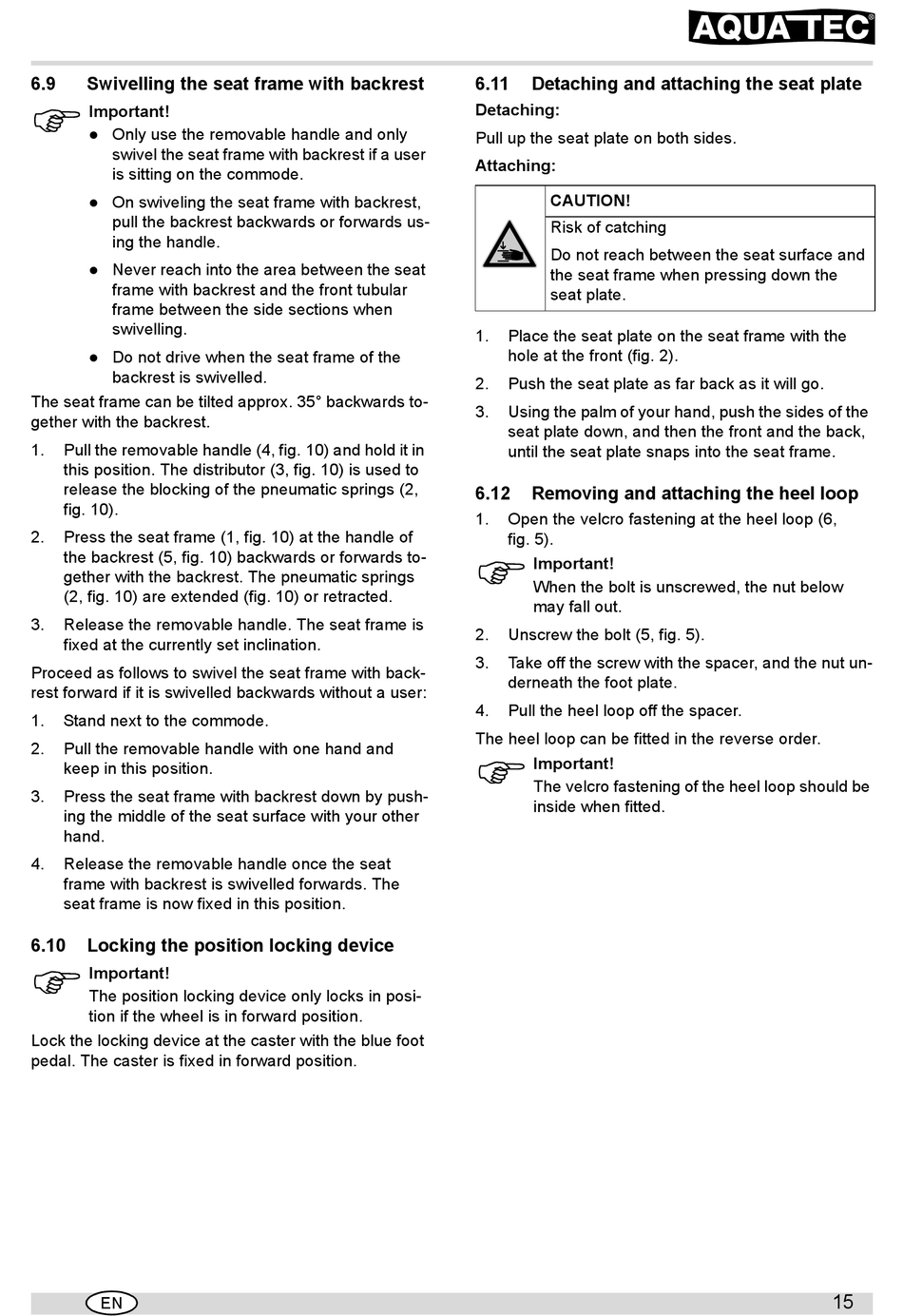

6.9

Swivelling the seat frame with backrest

Important!
Only use the removable handle and only

swivel the seat frame with backrest if a user
is sitting on the commode.
On swiveling the seat frame with backrest,

pull the backrest backwards or forwards us-
ing the handle.
Never reach into the area between the seat

frame with backrest and the front tubular
frame between the side sections when
swivelling.
Do not drive when the seat frame of the

backrest is swivelled.
The seat frame can be tilted approx. 35° backwards to-
gether with the backrest.
1. Pull the removable handle (4, fig. 10) and hold it in
this position. The distributor (3, fig. 10) is used to
release the blocking of the pneumatic springs (2,
fig. 10).
2. Press the seat frame (1, fig. 10) at the handle of
the backrest (5, fig. 10) backwards or forwards to-
gether with the backrest. The pneumatic springs
(2, fig. 10) are extended (fig. 10) or retracted.
3. Release the removable handle. The seat frame is
fixed at the currently set inclination.
Proceed as follows to swivel the seat frame with back-
rest forward if it is swivelled backwards without a user:
1. Stand next to the commode.
2. Pull the removable handle with one hand and
keep in this position.
3. Press the seat frame with backrest down by push-
ing the middle of the seat surface with your other
hand.
4. Release the removable handle once the seat
frame with backrest is swivelled forwards. The
seat frame is now fixed in this position.
6.10

Locking the position locking device

Important!
The position locking device only locks in posi-
tion if the wheel is in forward position.
Lock the locking device at the caster with the blue foot
pedal. The caster is fixed in forward position.
EN
6.11

Detaching and attaching the seat plate

Detaching:
Pull up the seat plate on both sides.
Attaching:
CAUTION!
Risk of catching
Do not reach between the seat surface and
the seat frame when pressing down the
seat plate.
1. Place the seat plate on the seat frame with the
hole at the front (fig. 2).
2. Push the seat plate as far back as it will go.
3. Using the palm of your hand, push the sides of the
seat plate down, and then the front and the back,
until the seat plate snaps into the seat frame.
6.12

Removing and attaching the heel loop

1. Open the velcro fastening at the heel loop (6,
fig. 5).
Important!
When the bolt is unscrewed, the nut below
may fall out.
2. Unscrew the bolt (5, fig. 5).
3. Take off the screw with the spacer, and the nut un-
derneath the foot plate.
4. Pull the heel loop off the spacer.
The heel loop can be fitted in the reverse order.
Important!
The velcro fastening of the heel loop should be
inside when fitted.
15
