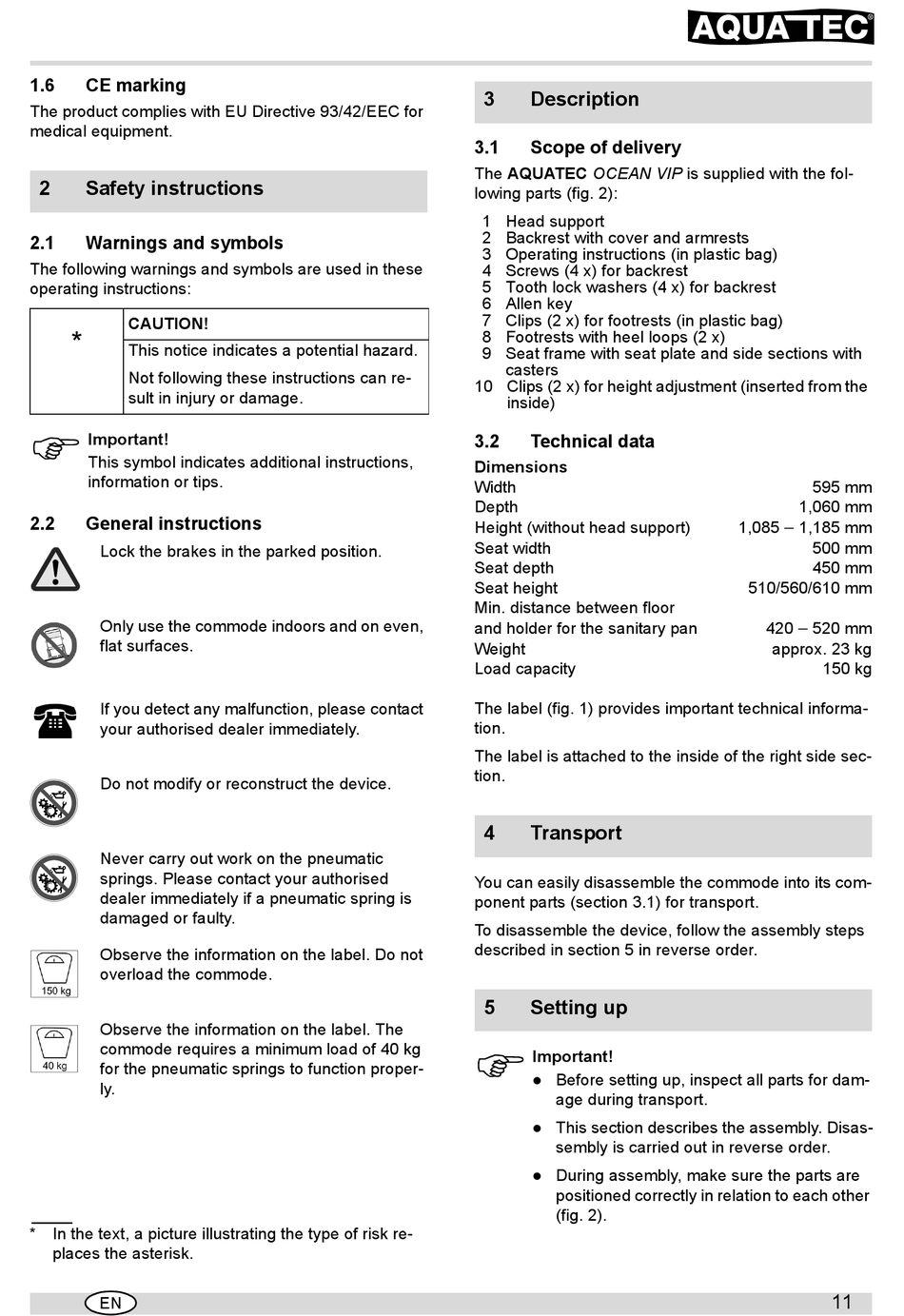

1.6

CE marking

The product complies with EU Directive 93/42/EEC for
medical equipment.
2

Safety instructions

2.1

Warnings and symbols

The following warnings and symbols are used in these
operating instructions:
CAUTION!
*
This notice indicates a potential hazard.
Not following these instructions can re-
sult in injury or damage.
Important!
This symbol indicates additional instructions,
information or tips.
2.2

General instructions

Lock the brakes in the parked position.
Only use the commode indoors and on even,
flat surfaces.
If you detect any malfunction, please contact
your authorised dealer immediately.
Do not modify or reconstruct the device.
Never carry out work on the pneumatic
springs. Please contact your authorised
dealer immediately if a pneumatic spring is
damaged or faulty.
Observe the information on the label. Do not
overload the commode.
Observe the information on the label. The
commode requires a minimum load of 40 kg
for the pneumatic springs to function proper-
ly.
* In the text, a picture illustrating the type of risk re-
places the asterisk.
EN
3

Description

3.1

Scope of delivery

The AQUATEC OCEAN VIP is supplied with the fol-
lowing parts (fig. 2):
1 Head support
2 Backrest with cover and armrests
3 Operating instructions (in plastic bag)
4 Screws (4 x) for backrest
5 Tooth lock washers (4 x) for backrest
6 Allen key
7 Clips (2 x) for footrests (in plastic bag)
8 Footrests with heel loops (2 x)
9 Seat frame with seat plate and side sections with
casters
10 Clips (2 x) for height adjustment (inserted from the
inside)
3.2

Technical data

Dimensions
Width
Depth
Height (without head support)
Seat width
Seat depth
Seat height
Min. distance between floor
and holder for the sanitary pan
Weight
Load capacity
The label (fig. 1) provides important technical informa-
tion.
The label is attached to the inside of the right side sec-
tion.
4

Transport

You can easily disassemble the commode into its com-
ponent parts (section 3.1) for transport.
To disassemble the device, follow the assembly steps
described in section 5 in reverse order.
5

Setting up

Important!
Before setting up, inspect all parts for dam-

age during transport.
This section describes the assembly. Disas-

sembly is carried out in reverse order.
During assembly, make sure the parts are

positioned correctly in relation to each other
(fig. 2).
595 mm
1,060 mm
−
1,085 1,185 mm
500 mm
450 mm
510/560/610 mm
−
420 520 mm
approx. 23 kg
150 kg
11
