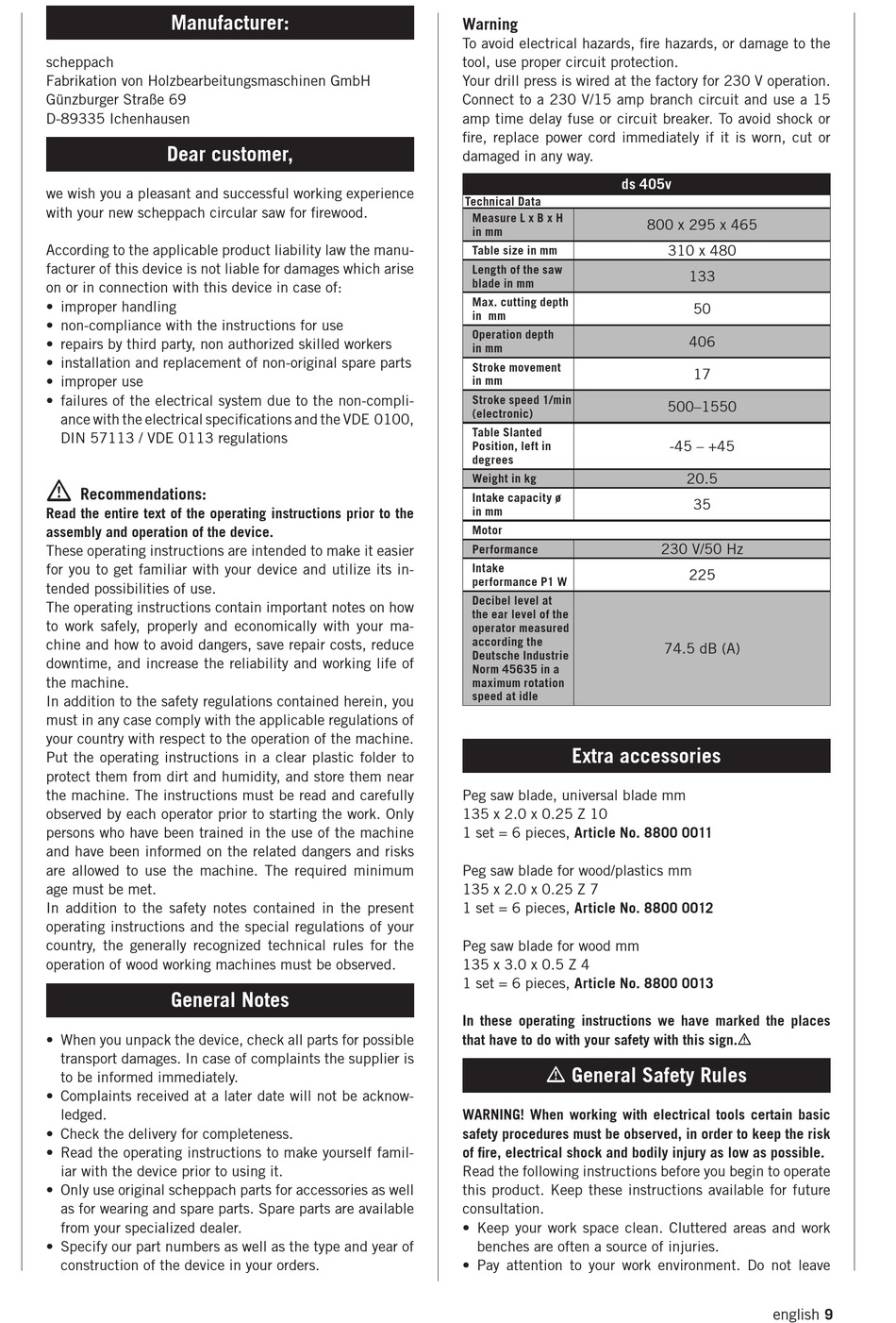

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear customer,
we wish you a pleasant and successful working experience
with your new scheppach circular saw for firewood.
According to the applicable product liability law the manu-
facturer of this device is not liable for damages which arise
on or in connection with this device in case of:
• improper handling
• non-compliance with the instructions for use
• repairs by third party, non authorized skilled workers
• installation and replacement of non-original spare parts
• improper use
• failures of the electrical system due to the non-compli-
ance with the electrical specifications and the VDE 0100,
DIN 57113 / VDE 0113 regulations
m
Recommendations:
Read the entire text of the operating instructions prior to the
assembly and operation of the device.
These operating instructions are intended to make it easier
for you to get familiar with your device and utilize its in-
tended possibilities of use.
The operating instructions contain important notes on how
to work safely, properly and economically with your ma-
chine and how to avoid dangers, save repair costs, reduce
downtime, and increase the reliability and working life of
the machine.
In addition to the safety regulations contained herein, you
must in any case comply with the applicable regulations of
your country with respect to the operation of the machine.
Put the operating instructions in a clear plastic folder to
protect them from dirt and humidity, and store them near
the machine. The instructions must be read and carefully
observed by each operator prior to starting the work. Only
persons who have been trained in the use of the machine
and have been informed on the related dangers and risks
are allowed to use the machine. The required minimum
age must be met.
In addition to the safety notes contained in the present
operating instructions and the special regulations of your
country, the generally recognized technical rules for the
operation of wood working machines must be observed.

General Notes

• When you unpack the device, check all parts for possible
transport damages. In case of complaints the supplier is
to be informed immediately.
• Complaints received at a later date will not be acknow-
ledged.
• Check the delivery for completeness.
• Read the operating instructions to make yourself famil-
iar with the device prior to using it.
• Only use original scheppach parts for accessories as well
as for wearing and spare parts. Spare parts are available
from your specialized dealer.
• Specify our part numbers as well as the type and year of
construction of the device in your orders.
Warning
To avoid electrical hazards, fire hazards, or damage to the
tool, use proper circuit protection.
Your drill press is wired at the factory for 230 V operation.
Connect to a 230 V/15 amp branch circuit and use a 15
amp time delay fuse or circuit breaker. To avoid shock or
fire, replace power cord immediately if it is worn, cut or
damaged in any way.
ds 405v
Technical Data
Measure L x B x H
in mm
Table size in mm
Length of the saw
blade in mm
Max. cutting depth
in mm
Operation depth
in mm
Stroke movement
in mm
Stroke speed 1/min
(electronic)
Table Slanted
Position, left in
degrees
Weight in kg
Intake capacity ø
in mm
Motor
Performance
Intake
performance P1 W
Decibel level at
the ear level of the
operator measured
according the
Deutsche Industrie
Norm 45635 in a
maximum rotation
speed at idle

Extra accessories

Peg saw blade, universal blade mm
135 x 2.0 x 0.25 Z 10
1 set = 6 pieces, Article No. 8800 0011
Peg saw blade for wood/plastics mm
135 x 2.0 x 0.25 Z 7
1 set = 6 pieces, Article No. 8800 0012
Peg saw blade for wood mm
135 x 3.0 x 0.5 Z 4
1 set = 6 pieces, Article No. 8800 0013
In these operating instructions we have marked the places
that have to do with your safety with this sign.m
m General Safety Rules
WARNING! When working with electrical tools certain basic
safety procedures must be observed, in order to keep the risk
of fire, electrical shock and bodily injury as low as possible.
Read the following instructions before you begin to operate
this product. Keep these instructions available for future
consultation.
• Keep your work space clean. Cluttered areas and work
benches are often a source of injuries.
• Pay attention to your work environment. Do not leave
800 x 295 x 465
310 x 480
133
50
406
17
500–1550
-45 – +45
20.5
35
230 V/50 Hz
225
74.5 dB (A)
